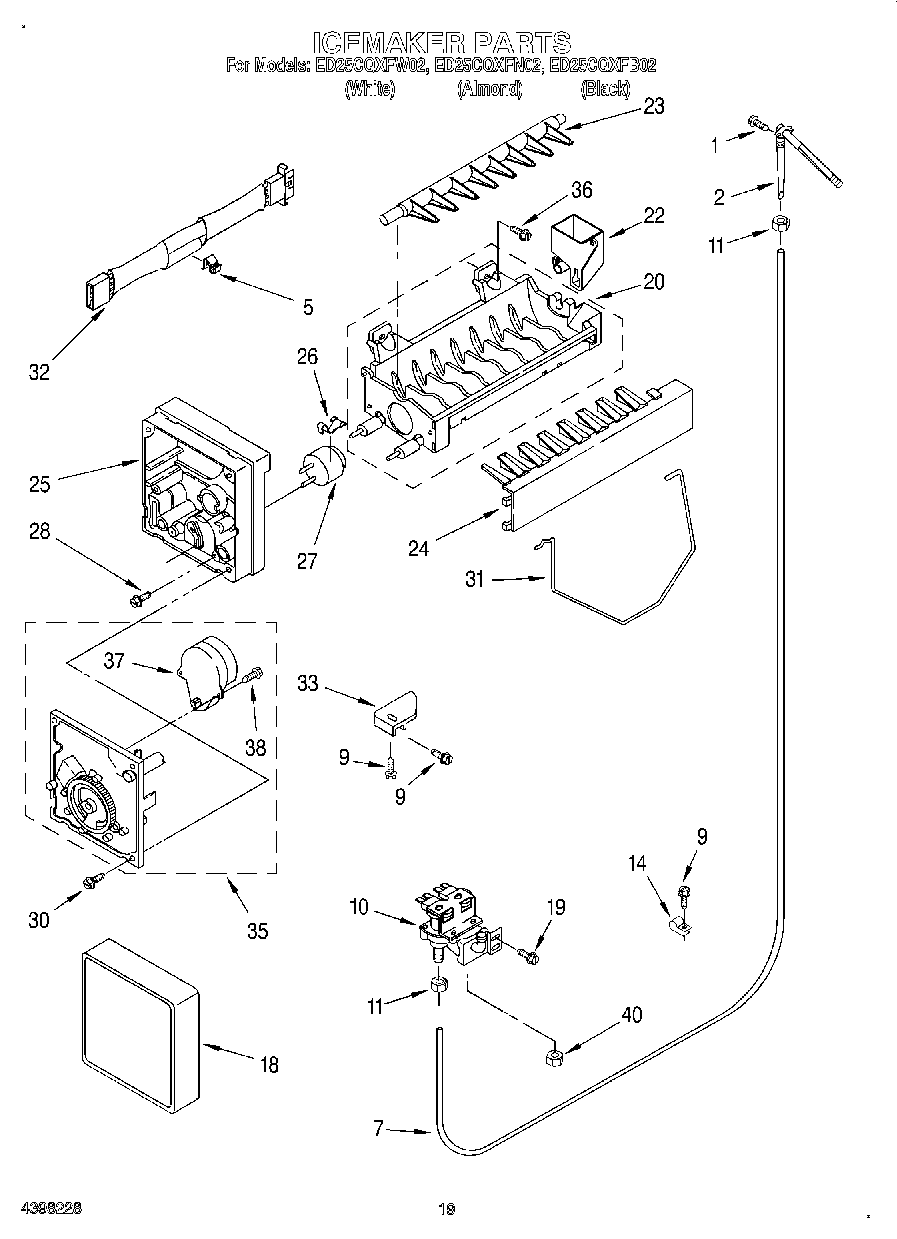

ED25CQXFB02 12 – ICE MAKER, OPTIONALadmin2025-04-26T09:46:04+00:00ED25CQXFB02 12 – ICE MAKER, OPTIONAL ProductsPositionProduct2WP2196157 Whirlpool Fill Tube5WP628379 Whirlpool Refrigerator Clip7W10823511 Whirlpool Refrigerator Water Tube9WP489478 Whirlpool Refrigerator Screw10W10853654 Whirlpool Water Inlet Valve11WP627018 Whirlpool Refrigerator Nut14WP488366 Whirlpool Refrigerator Clamp18WPW10289690 Whirlpool Ice Maker Cover19WPW10141625 Whirlpool Refrigerator Screw Assembly20WPW10190929 Whirlpool Refrigerator Ice Maker Mold22WP628356 Whirlpool Refrigerator Fill Cup23WP627843 Whirlpool Refrigerator Ejector Arm24WP2182124 Whirlpool Refrigerator Stripper Arm25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27Cement Alumilastic)27WP627985 Whirlpool Icemaker Cycling Thermostat288533917 Whirlpool Refrigerator Screw30WP681249 Whirlpool Screw Assembly31W11342242 Whirlpool Refrigerator Ice Level Arm32WP2187464 Whirlpool Refrigerator Wire Harness33W11500948 Whirlpool Refrigerator Bracket36WP488163 Whirlpool Refrigerator Screw37W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly38489136 Whirlpool Refrigerator Screw40WP72107 Whirlpool Touchup40Almond (Uncut)40799344 Whirlpool Refrigerator Paint40285006 Whirlpool Spray4072032 Whirlpool Touch Up Paint Black40606755 Whirlpool Refrigerator Bag40Nut, Compression40WPW10312300 Whirlpool Refrigerator Ice Container4072017 Whirlpool Appliance Touch-Up Paint White40350956 Whirlpool Spray Assembly40WPL 87602940WPL 799833404317943 Whirlpool Refrigerator Ice Maker Assembly40212643 Whirlpool Refrigerator Permagum Sealer40350930 Whirlpool White Spray Paint40350942 Whirlpool Spray Paint40511873 Whirlpool Refrigerator Paint40833938 Whirlpool Refrigerator Terminal40876370 Whirlpool Refrigerator Insulation40WP503695 Whirlpool Refrigerator Sealer40WP505587 Whirlpool Refrigerator Sealer40WP542638 Whirlpool Refrigerator Grease40Torx Key40CEMENT, ALUMILASTIC (1 1/4 OZ.)40Enamel, Black (1 Qt. Uncut)40TAPE, VINYL (3/4 X 108``)
