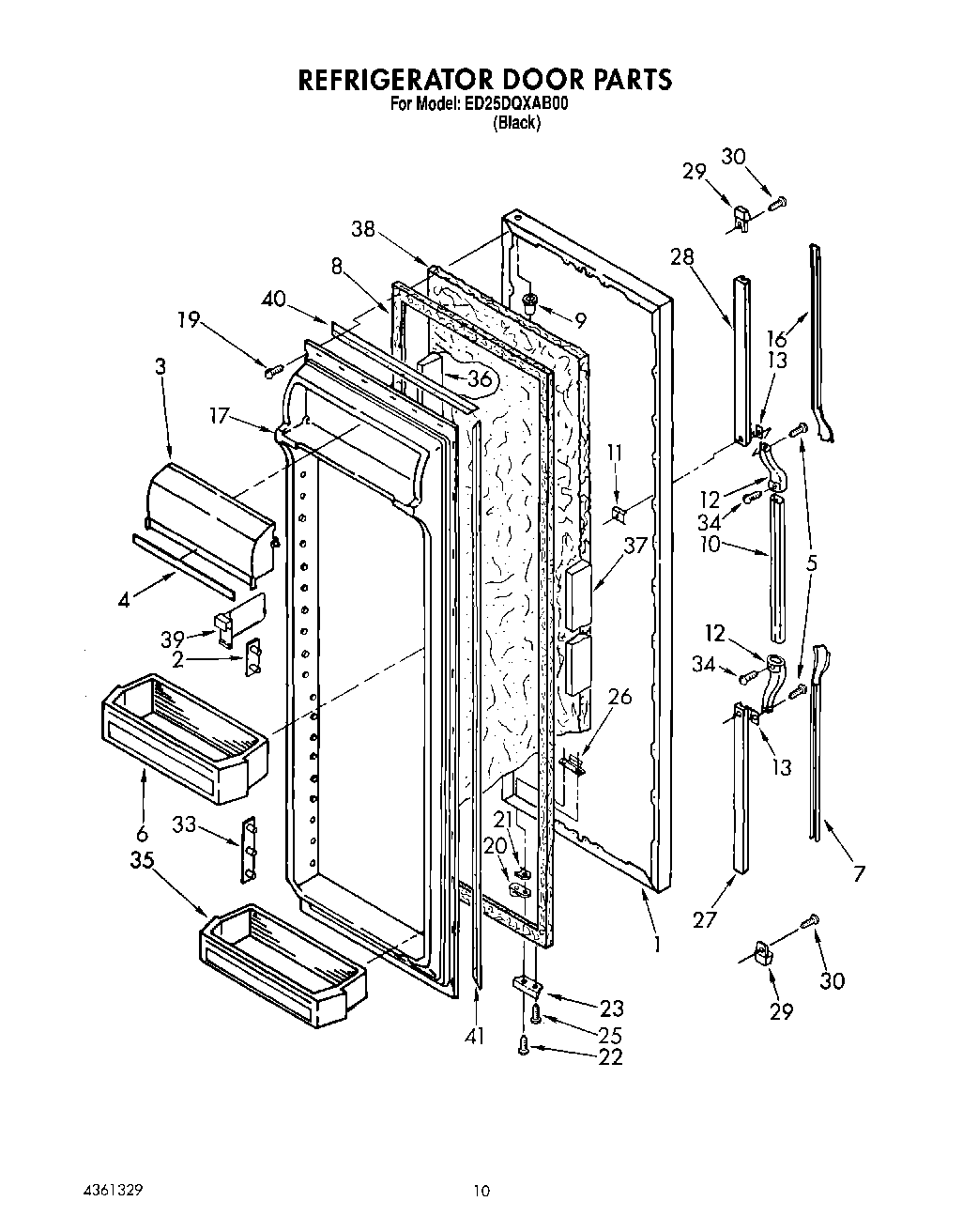

ED25DQXAB00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Also Order Item 38)
2	Pin Plate (6)
3	Door, Compartment
4	Trim, Compartment Door
6	Shelf Bin (2)
7	Insert, Handle (Black)
8	Door Gasket, Magnetic
9	Cap, Hinge Sleeve (2)
10	Handle, Center
11	Screw Anchor (2)
12	End Cap, Center Handle
13	Shim
16	Insert, Handle (Black)
17	Panel, Interior Door
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
21	WP1104787 Whirlpool Refrigerator Shim
23	Bracket, Door Stop
25	WP489069 Whirlpool Compactor Screw
26	Tap Plate
27	Retainer, Insert (Bottom)
28	Retainer, Insert
29	End Cap (2)
30	Screw
33	Pin Plate (8)
34	Screw
35	Shelf Bin (2)
36	Door Dike, Hinge Side
37	Door Dike, Handle Side
38	WPL 876029
39	Divider (3)
40	Gasket Retainer, Top & Bottom
41	Trim Kit
41	Gasket Retainer, Side (2)
41	Trimless Black Decor Panel
41	Black Handle Insert
41	Woodgrain Handle Insert
