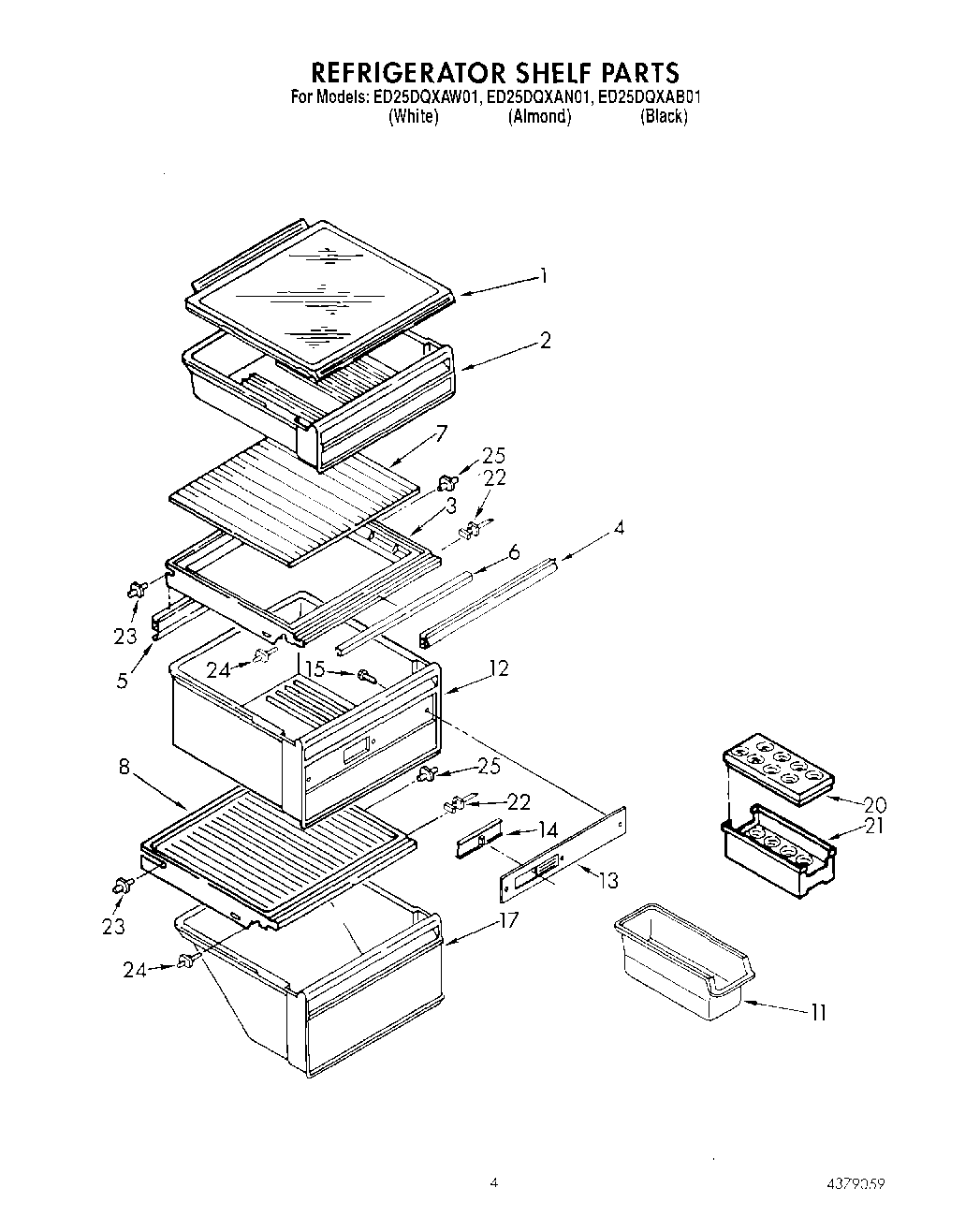

ED25DQXAB01 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Glass Sliding (3)
2Snack Bin
3WP1126289 Whirlpool Refrigerator Cover
4Gasket, Crisper (Front)
5Gasket, Crisper (Rear)
6Trim, Crisper Cover
7Glass, Crisper Cover
8WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan
11WP982704 Whirlpool Refrigerator Container
12Pan, Crisper
13Front, Crisper Pan
14Slide, Crisper
15Screw (6)
17Meat Pan
20Egg Container, Top
21Egg Container, Bottom
23Stud (2)
24WP2149540 Whirlpool Shelf Support
254388538 Whirlpool Refrigerator Stud Shelf Kit (White)
