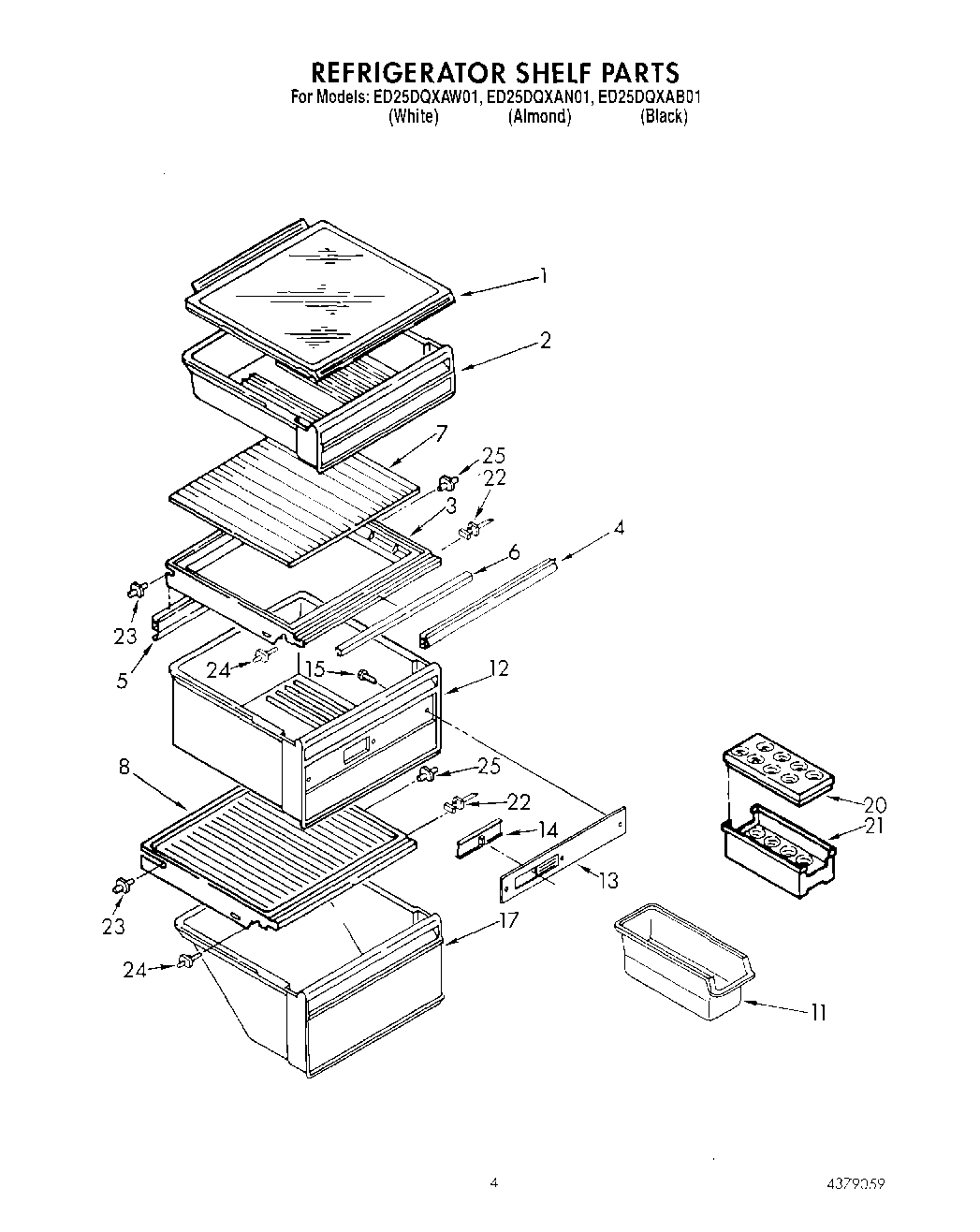

ED25DQXAN01 03 – REFRIGERATOR SHELFadmin2025-04-26T09:48:20+00:00ED25DQXAN01 03 – REFRIGERATOR SHELF
Products
| Position | Product |
|---|
| 1 | Shelf Assembly, Glass Sliding (3) |
| 2 | Snack Bin |
| 3 | WP1126289 Whirlpool Refrigerator Cover |
| 4 | Gasket, Crisper (Front) |
| 5 | Gasket, Crisper (Rear) |
| 6 | Trim, Crisper Cover |
| 7 | Glass, Crisper Cover |
| 8 | WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan |
| 11 | WP982704 Whirlpool Refrigerator Container |
| 12 | Pan, Crisper |
| 13 | Front, Crisper Pan |
| 14 | Slide, Crisper |
| 15 | Screw (6) |
| 17 | Meat Pan |
| 20 | Egg Container, Top |
| 21 | Egg Container, Bottom |
| 23 | Stud (2) |
| 24 | WP2149540 Whirlpool Shelf Support |
| 25 | 4388538 Whirlpool Refrigerator Stud Shelf Kit (White) |
