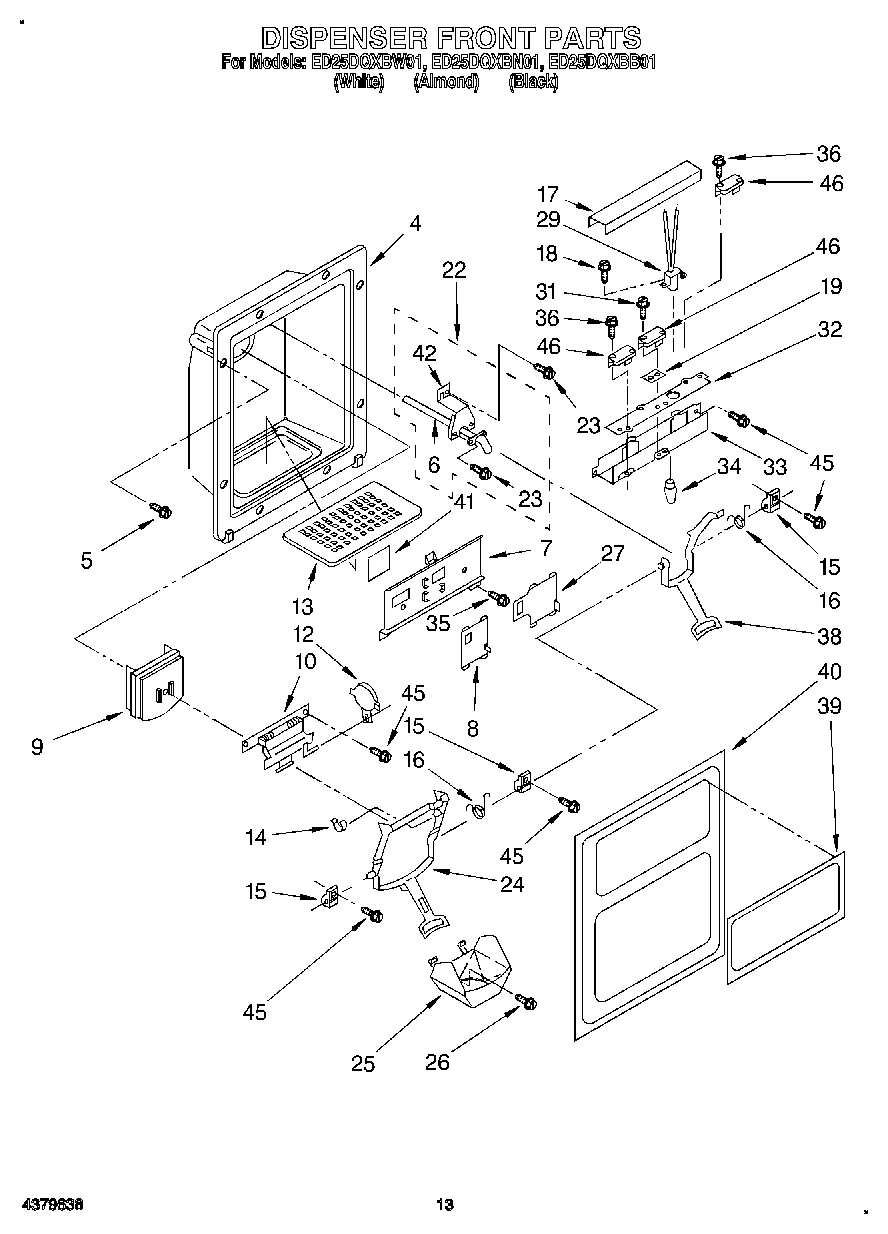

ED25DQXBN01 08 – DISPENSER FRONT

Products

PositionProduct
4Housing, Dispenser (Not a Serviceable Part)
5W11693756 Whirlpool Screw Assembly
6Tube, Water (See Item No.22)
7Frame, Slides
7Frame, Slides (Almond)
7Frame, Slides
8Slide, Cube/Crush Switch (Almond)
8Slide, Cube/Crush Switch
8Slide, Cube/Crush Switch
9WP2180353 Whirlpool Dispenser Door
10Door Mechanism Assembly
12WP1120581 Whirlpool Refrigerator Mechanism
13Grille, Overflow (White)
13Grille, Overflow (Black)
13Grille, Overflow (Almond)
14Clip, Bearing (2)
15Bearing, Lever (3)
16Spring, Lever (2)
17Shield, Wiring
18WP489128 Whirlpool Refrigerator Screw
19Spacer, Switch (2)
22WP4388152 Whirlpool Refrigerator Fitting
23WP965173 Whirlpool Dishwasher Screw
24Lever Assembly, Ice Dispenser
24Lever Assembly, Ice Dispenser
24Lever Assembly, Ice Dispenser (Almond)
25Guide, Ice
25Guide, Ice (Almond)
25Guide, Ice
26Screw
27Slide, Light Switch
27Slide, Light Switch (Almond)
27Slide, Light Switch
29Lamp Holder
31Screw, 4-40 x 1
32Insulator, Control Bracket
33Bracket, Control
34WP22002263 Whirlpool Dryer 10W Light Bulb
35WP489069 Whirlpool Compactor Screw
36Screw,
38WPL 2159197
38WPL 2159198
38Lever Assembly, Water Disp
39Plaque, Front Cover (Almond)
39Plaque, Front Cover (White)
39Plaque, Front Cover
40Front Cover, Housing (Includes Item 39)
40WPL 2162928
40WPL 2162926
41Heat Shield, Frame
42Bracket, Water
45WP3400906 Whirlpool Refrigerator Screw
46WP2162361 Whirlpool Switch
