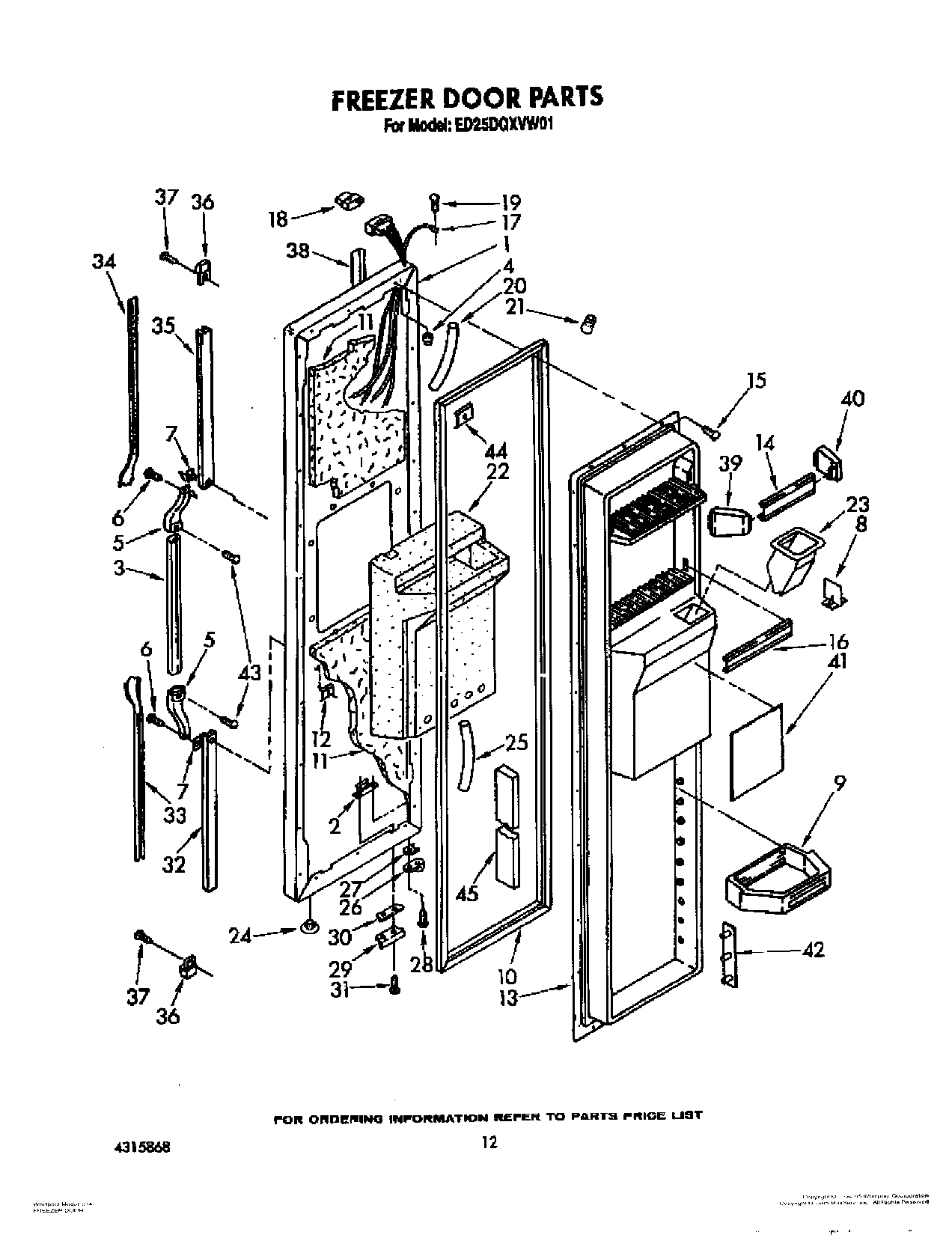

ED25DQXVF01 08 – FREEZER DOOR

Products

Position	Product
1	Freezer, Door Panel (Toast)
1	Freezer, Door Panel (Also Order Item 11) (Almond)
1	Freezer, Door Panel (Also Order Item 11) (White)
1	Freezer, Door Panel (Golden Harvest)
1	Freezer, Door Panel (Platinum (Also Order Item 11))
2	Tap Plate
3	Handle, Center
4	Seal, Hinge Pin
5	End Cap, Center Handle
7	Shim
8	Divider, Shelf
9	Shelf Bin (3)
10	Door Gasket, Magnetic
11	WPL 876029
12	Screw Anchor (2)
13	Panel, Interior Door
14	Trim, Door Shelf
16	Trim, Door Shelf
17	Harness, Door (Includes Item 18)
18	Connector, Plug
19	WP488234 Whirlpool Air Conditioner Screw
20	Tube, Door Wiring
21	Wire Connector
22	Insulation, Dispenser
23	Chute, Ice
24	Hole Plug (2)
25	Tube, Door Wiring
26	4318165 Whirlpool Refrigerator Door Closure Cam Kit
27	WP1104787 Whirlpool Refrigerator Shim
28	WP489069 Whirlpool Compactor Screw
29	Bracket, Door Stop
30	Shim
31	Screw, 89 x 5/8
32	Retainer, Insert (Bottom)
33	Insert, Handle (Toast)
33	Insert, Handle (Golden Harvest)
33	Insert, Handle (White)
33	Insert, Handle (Almond)
33	Insert, Handle (Platinum)
34	Insert, Handle (Almond)
34	Insert, Handle (Golden Harvest)
34	Insert, Handle (Toast)
34	Insert, Handle (Platinum)
34	Insert, Handle (White)
35	Retainer, Insert
36	End Cap
37	Screw
38	Trim, Door
39	End Cap, Trim (4)
40	End Cap, Trim (4)
41	Overlay
42	Pin Plate (8)
43	Screw
44	WP939101 Whirlpool Refrigerator Plate
45	Door Dike (2)
