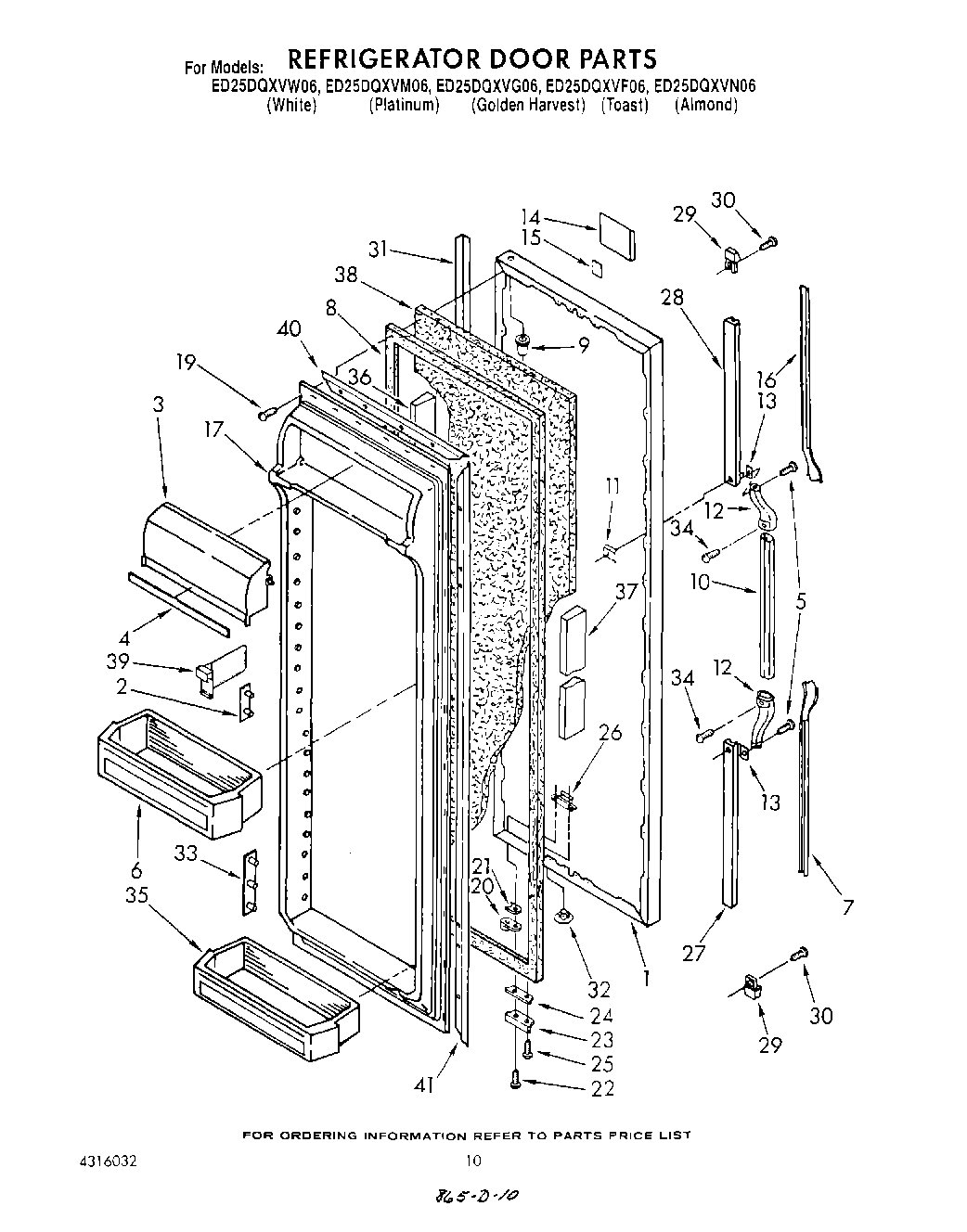

ED25DQXVF06 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Golden Harvest)
1	Refrigerator Door (Platinum (Also Order Item 38))
1	Refrigerator Door (Almond (Also Order Item 34))
1	Refrigerator Door (Toast)
1	Refrigerator Door (White)
2	Pin Plate (6)
3	Door, Compartment
4	Trim, Compartment Door
6	Shelf Bin (2)
7	Insert, Handle (Toast)
7	Insert, Handle (White)
7	Insert, Handle (Platinum)
7	Insert, Handle (Almond)
7	Insert, Handle (Golden Harvest)
8	Door Gasket, Magnetic
9	Cap, Hinge Sleeve (2)
10	Handle, Center
11	Screw Anchor (2)
12	End Cap, Center Handle
13	Shim
14	Nameplate
15	Tape Strip
16	Insert, Handle (Platinum)
16	Insert, Handle (Almond)
16	Insert, Handle (White)
16	Insert, Handle (Toast)
16	Insert, Handle (Golden Harvest)
17	Panel, Interior Door
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
21	WP1104787 Whirlpool Refrigerator Shim
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop
24	Shim
25	Screw, 89 x 5/8
26	Tap Plate
27	Retainer, Insert (Bottom)
28	Retainer, Insert
29	End Cap
30	Screw
31	Trim, Door
32	Hole Plug (2)
33	Pin Plate (8)
34	Screw
35	Shelf Bin (2)
36	Door Dike, Hinge Side
37	Door Dike, Handle Side
38	WPL 876029
39	Divider (2)
40	Gasket Retainer, Top & Bottom
41	Gasket Retainer, Side (2)
8325^5	Trimless Black Decor Panel
8326^6	Black Handle Insert
8327^7	Woodgrain Handle Insert
8331^1	Trim Kit
