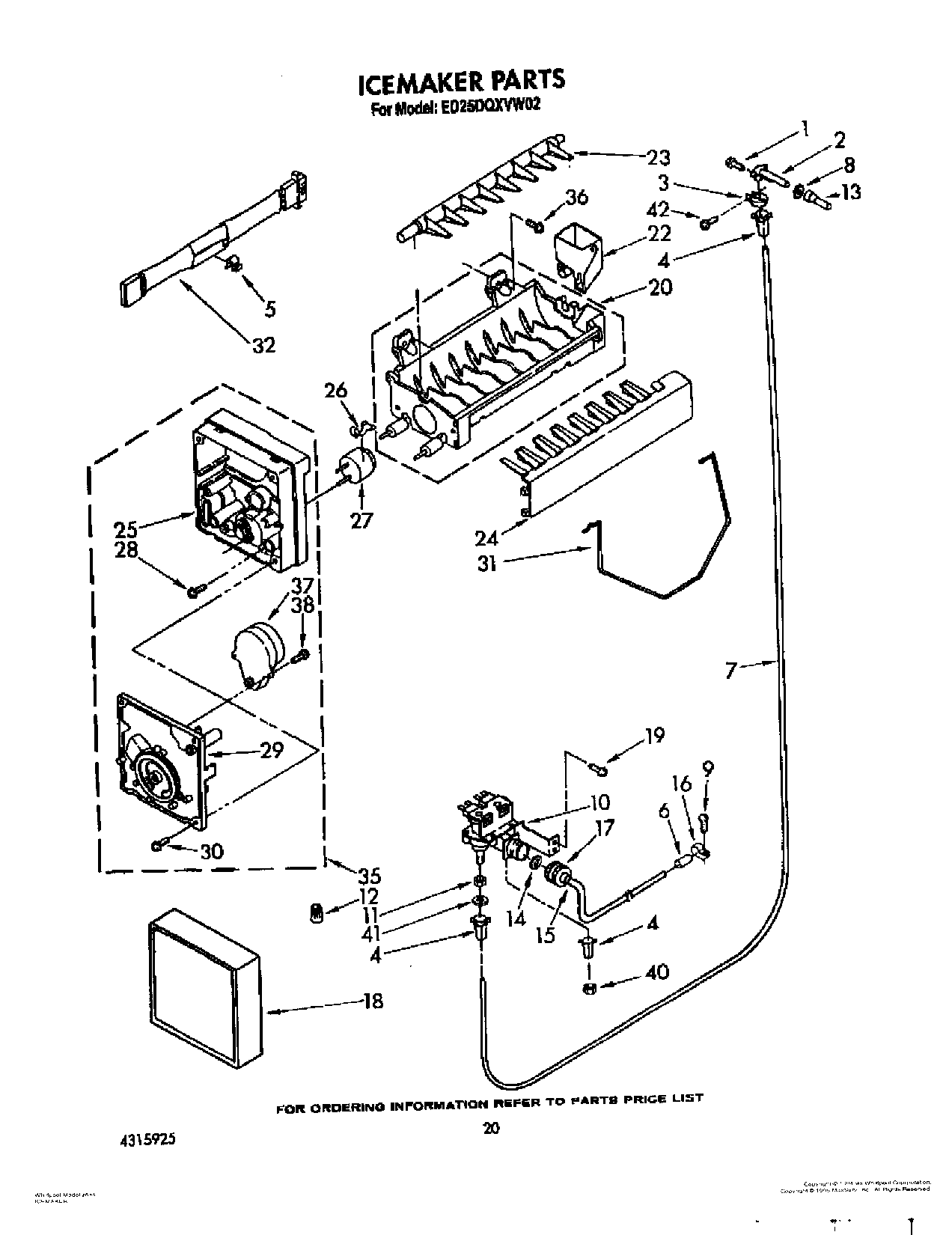

ED25DQXVG02 13 – ICEMAKER, LIT/OPTIONAL

ED25DQXVG02 13 – ICEMAKER, LIT/OPTIONAL

Written by

in

ED25DQXVG02 13 – ICEMAKER, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4315925
	Torx Key
	WPL LIT1127832
	WPL LIT1124920
	WPL LIT1119219
	WPL LIT628107
2	WP2196157 Whirlpool Fill Tube
3	WP488878 Whirlpool Refrigerator Tube Clamp
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
6	WP2158826 Whirlpool Refrigerator Dampener
7	W10823511 Whirlpool Refrigerator Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	WP489069 Whirlpool Compactor Screw
10	4318046 Whirlpool Dual Water Inlet Valve
11	WP627018 Whirlpool Refrigerator Nut
12	Wire Connector
13	Tube, Water Inlet
14	Washer
15	Tube, Inlet Valve
16	Clamp Tube
17	Nut, Valve
18	Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
35	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
36	WP488163 Whirlpool Refrigerator Screw
38	489136 Whirlpool Refrigerator Screw
40	Nut, Compression
41	“O“ Ring Seal (4)
42	Transformer (115-230 Volt)
42	72113 Whirlpool Touch-Up Paint
42	Golden Harvest
42	350956 Whirlpool Spray Assembly
42	350930 Whirlpool White Spray Paint
42	876370 Whirlpool Refrigerator Insulation
42	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
42	Almond (Uncut)
42	Leveler (Thinner)
42	WP72107 Whirlpool Touchup
42	799344 Whirlpool Refrigerator Paint
42	72017 Whirlpool Appliance Touch-Up Paint White
42	72032 Whirlpool Touch Up Paint Black
42	285006 Whirlpool Spray
42	WP488787 Whirlpool Refrigerator Screw
42	WP542638 Whirlpool Refrigerator Grease
42	WP505587 Whirlpool Refrigerator Sealer
42	WP503695 Whirlpool Refrigerator Sealer
42	WPL 72112
42	833938 Whirlpool Refrigerator Terminal
42	606755 Whirlpool Refrigerator Bag
42	511873 Whirlpool Refrigerator Paint
42	350942 Whirlpool Spray Paint
42	Platinum (Uncut)
42	TAPE, VINYL (3/4 X 108“)
42	Golden Harvest (Uncut)
42	Toast
42	Paint, Spray (13 Oz.) (Platinum)
42	Enamal, Toast (1 Qt. Uncut)
42	WPL 876029
42	WPL 799833
42	Enamel, Black (1 Qt. Uncut)
42	CEMENT, ALUMILASTIC (1 1/4 OZ.)
42	212643 Whirlpool Refrigerator Permagum Sealer
