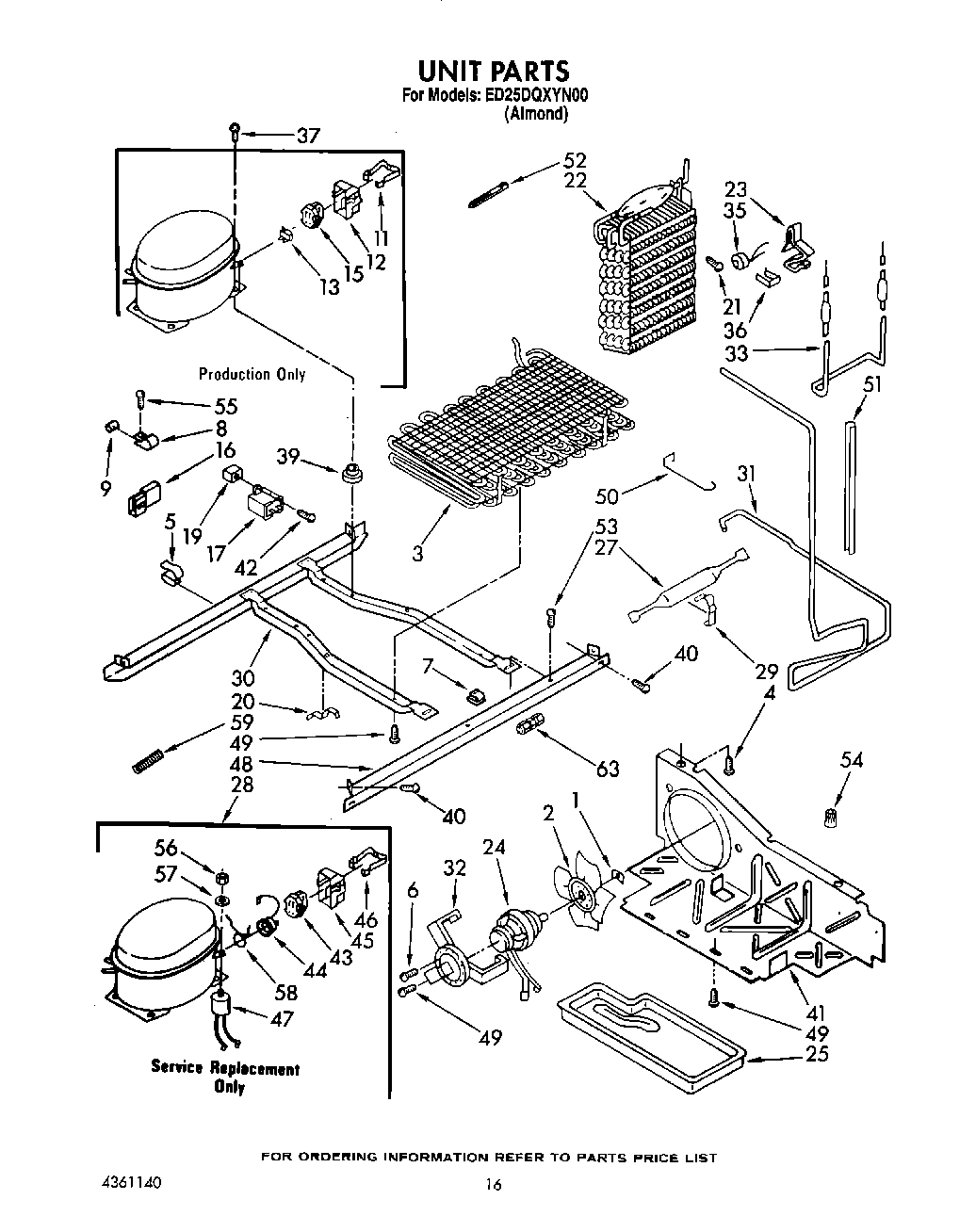

ED25DQXYW00 10 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Clip, Tube (3)
8	Clamp Tube
9	Dampener (2)
11	case spring
12	Case, Relay
13	Overload
15	Relay
16	Housing Plug
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
19	Screw Grommet
20	Clip (2)
21	WP489478 Whirlpool Refrigerator Screw
22	Evaporator
23	Clamp (4)
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 56, 57 & 58) (Also Order)
29	Clamp, Dryer
30	2304904 Whirlpool Frame Assembly
31	Exchanger, Heat
32	Bracket, Motor
33	Heater, Defrost
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	W11693756 Whirlpool Screw Assembly
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Capacitor
48	2305374 Whirlpool Refrigerator Unit Rail
49	Screw, 8 x 3/8
50	Guard, Fan
51	WP2002171 Whirlpool Refrigerator Sleeve
52	Strap
53	Screw, 1/4-28 x 1/2 (2)
54	Wire Connector
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
56	Nut
57	Washer
58	Overload Spring
59	Spring-Tube
63	876764 Whirlpool Refrigerator Primary Valve
63	978027 Whirlpool Refrigerator Primary Valve
63	978030 Whirlpool Refrigerator Valve
63	VALVE, ACCESS (1/2“)
63	978026 Whirlpool Refrigerator Primary Valve
63	WP4211117 Whirlpool Refrigerator Connector
63	VALVE, ACCESS (5/8“)
63	WP978025 Whirlpool Refrigerator Valve
