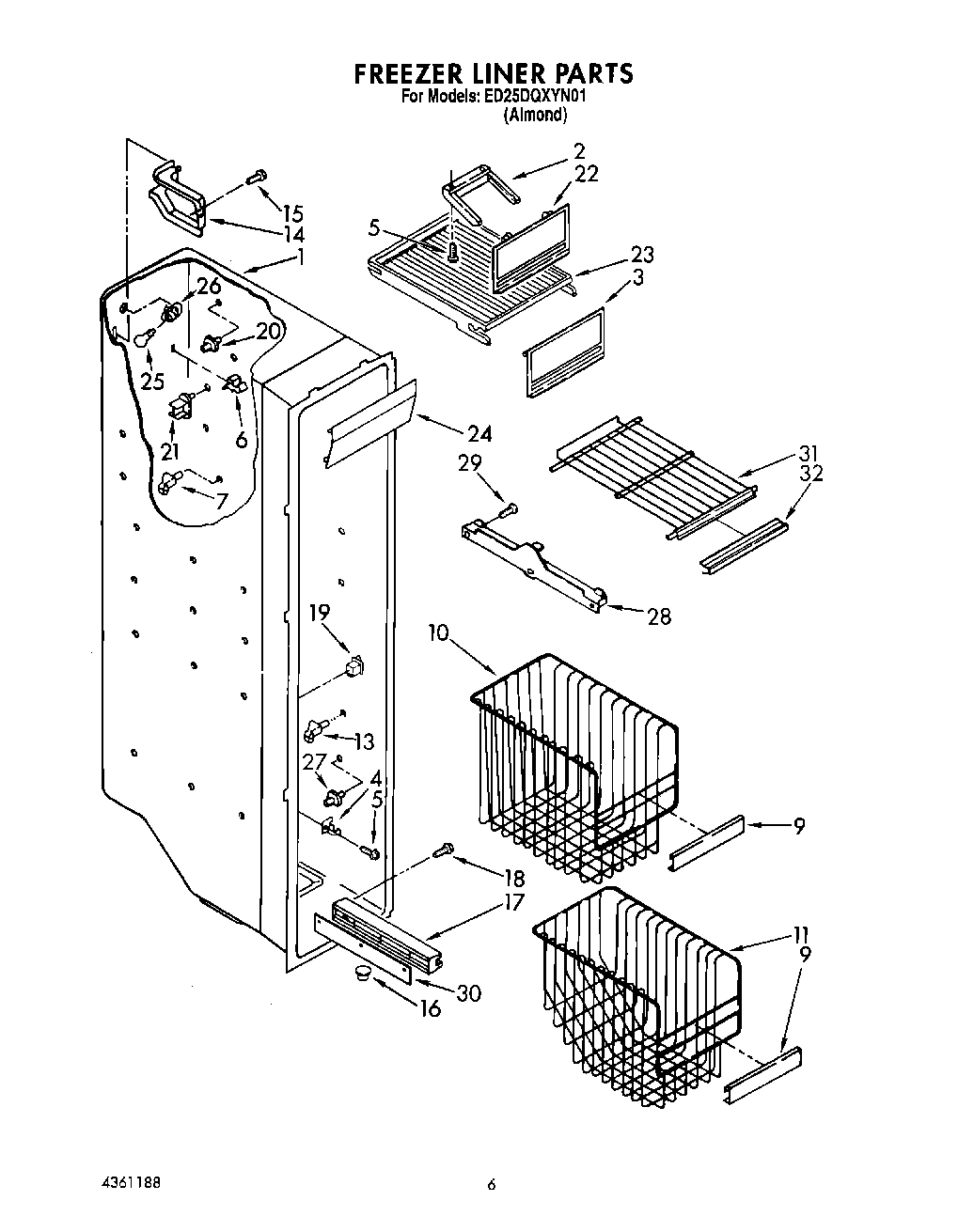

ED25DQXYW01 05 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Ice Door
3	Door, Ice Compartment
4	Evaporator, Support
5	WP489478 Whirlpool Refrigerator Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
9	Trim, Basket
10	Basket, Tall
11	Basket, Slope
13	Stud, Support
14	Wiring Cover
15	WP488729 Whirlpool Refrigerator Door Screw
16	Fitting, Drain
17	Shelf Track (Right Side (4))
17	Shelf Track (Left Side (4))
18	W11693756 Whirlpool Screw Assembly
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
21	Stud, Shelf (4)
22	Door, Top Compartment
23	Shelf, Top Compartment
24	Light Lens
25	RANGE ONLY 40W 120V APPL BULB
26	4387478 Whirlpool Refrigerator Light Socket
27	Stud, Front R.S.
27	Stud, Rear R.S.
28	W10845583 Whirlpool Refrigerator Track
28	W10845585 Whirlpool Refrigerator Track
29	718257 Whirlpool Dishwasher Screw
30	Shim, Basket Track (2)
31	Shelf (3)
32	Trim, Shelf (3)
