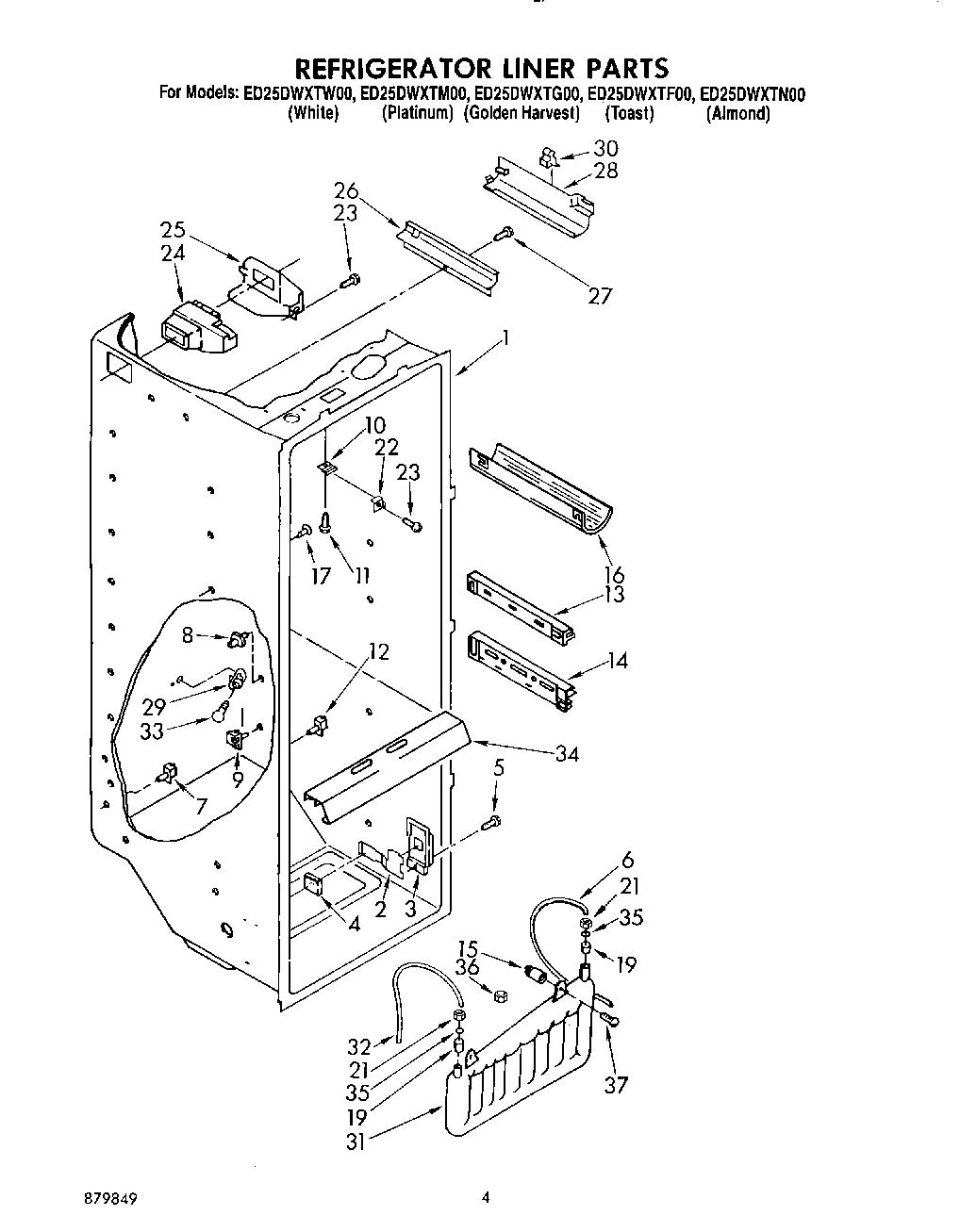

ED25DWXTF00 03 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	Slide, Meat Pan Control
4	Pad, Foam
5	Screw, 8-15 x 1/2 (4)
6	W10823511 Whirlpool Refrigerator Water Tube
7	Stud (3)
8	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
9	Stud (2)
10	Clip (2)
11	WP489478 Whirlpool Refrigerator Screw
12	Stud
13	Track, Shelf (Left Side (2))
13	Track, Shelf (Right Side (2))
14	Track, Shelf (Right Side)
14	WP1115265 Whirlpool Refrigerator Track
15	Stud, Spacer (2)
16	Wine Rack
17	WP1114631 Whirlpool Refrigerator Shelf Support Stud
19	4387491 Whirlpool Refrigerator Insert
21	Nut, Compression
22	Bracket Retainer
23	W11624204 Whirlpool Screw
24	WPW10151374 Whirlpool Refrigerator Diffuser
25	2152019 Whirlpool Refrigerator Cover
26	Cover, Conduit
27	WP488163 Whirlpool Refrigerator Screw
28	Cover, Wiring
29	4387478 Whirlpool Refrigerator Light Socket
30	2215823 Whirlpool Refrigerator Clip
31	WP2256126 Whirlpool Refrigerator Reservoir
33	RANGE ONLY 40W 120V APPL BULB
34	Light Lens
35	``O`` Ring Seal
36	Nut, Compression
37	Screw (2)
