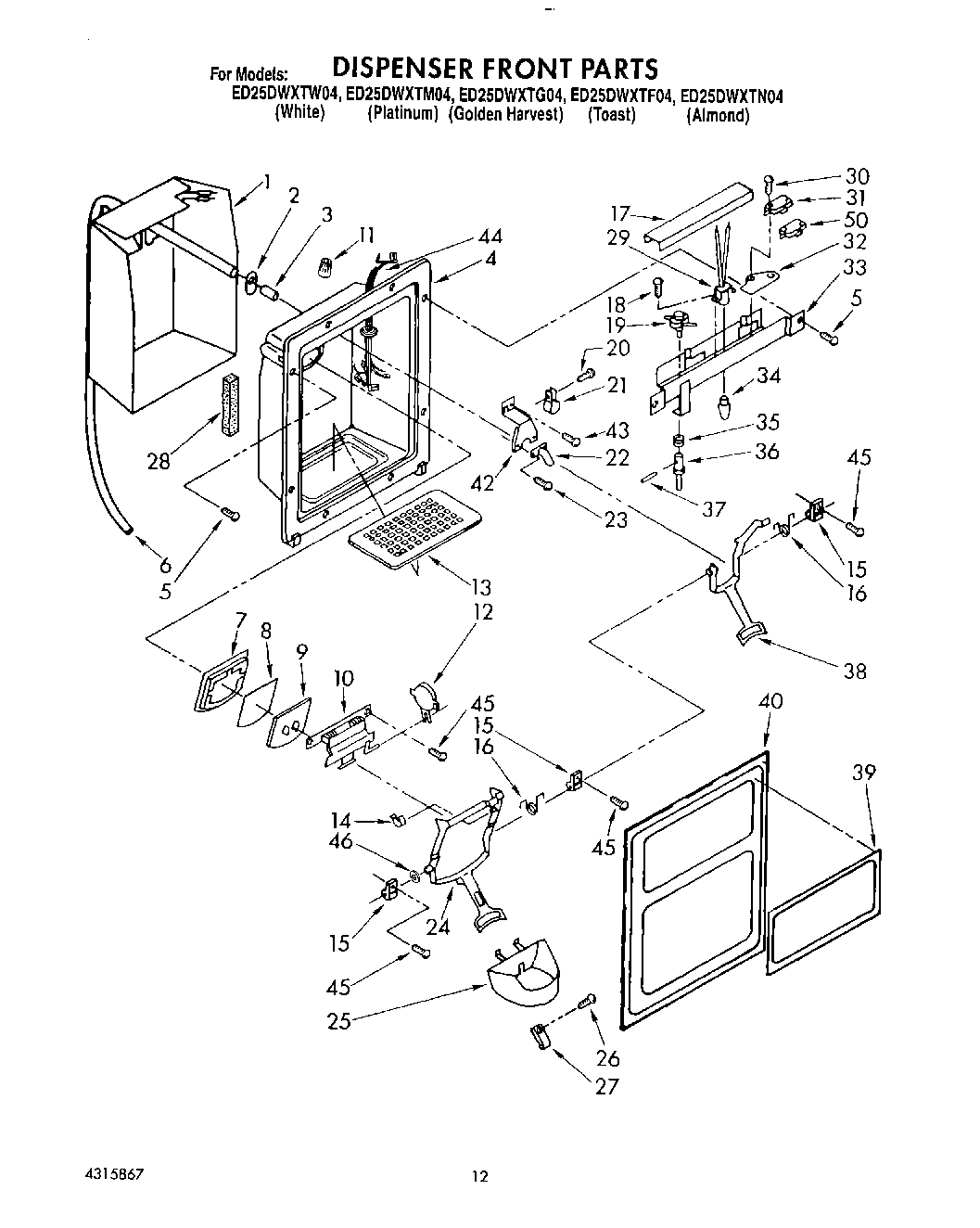

ED25DWXTG04 09 – DISPENSER FRONT

Products

Position	Product
1	Heater, Dispenser
2	Grommet
3	4387491 Whirlpool Refrigerator Insert
4	Housing, Dispenser
5	W11693756 Whirlpool Screw Assembly
6	W10823511 Whirlpool Refrigerator Water Tube
7	Gasket, Door
8	Shield, Ice Door
9	Door, Ice
10	Door Mechanism Assembly
11	Wire Connector
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
19	Switch, Light
20	WP488787 Whirlpool Refrigerator Screw
21	WP488878 Whirlpool Refrigerator Tube Clamp
22	WP4388152 Whirlpool Refrigerator Fitting
23	WP965173 Whirlpool Dishwasher Screw
24	Lever Assembly, Ice Dispenser
25	Guide, Ice
26	Screw
27	Stop, Glass
28	Seal
29	Socket, Lamp
30	Screw, 4-40 x 1
31	Switch
32	Insulator, Switch (2)
33	Bracket, Control
34	WP22002263 Whirlpool Dryer 10W Light Bulb
35	Spring, Plunger
36	Plunger
37	Pin, Retainer
38	Lever Assembly, Water Dispenser
39	Plaque, Front Cover
40	Front Cover, Housing
42	Bracket, Water
43	Screw, 8-18 x 3/4
44	Wiring Assembly, Door
45	WP3400906 Whirlpool Refrigerator Screw
46	Washer
50	Switch (2)
