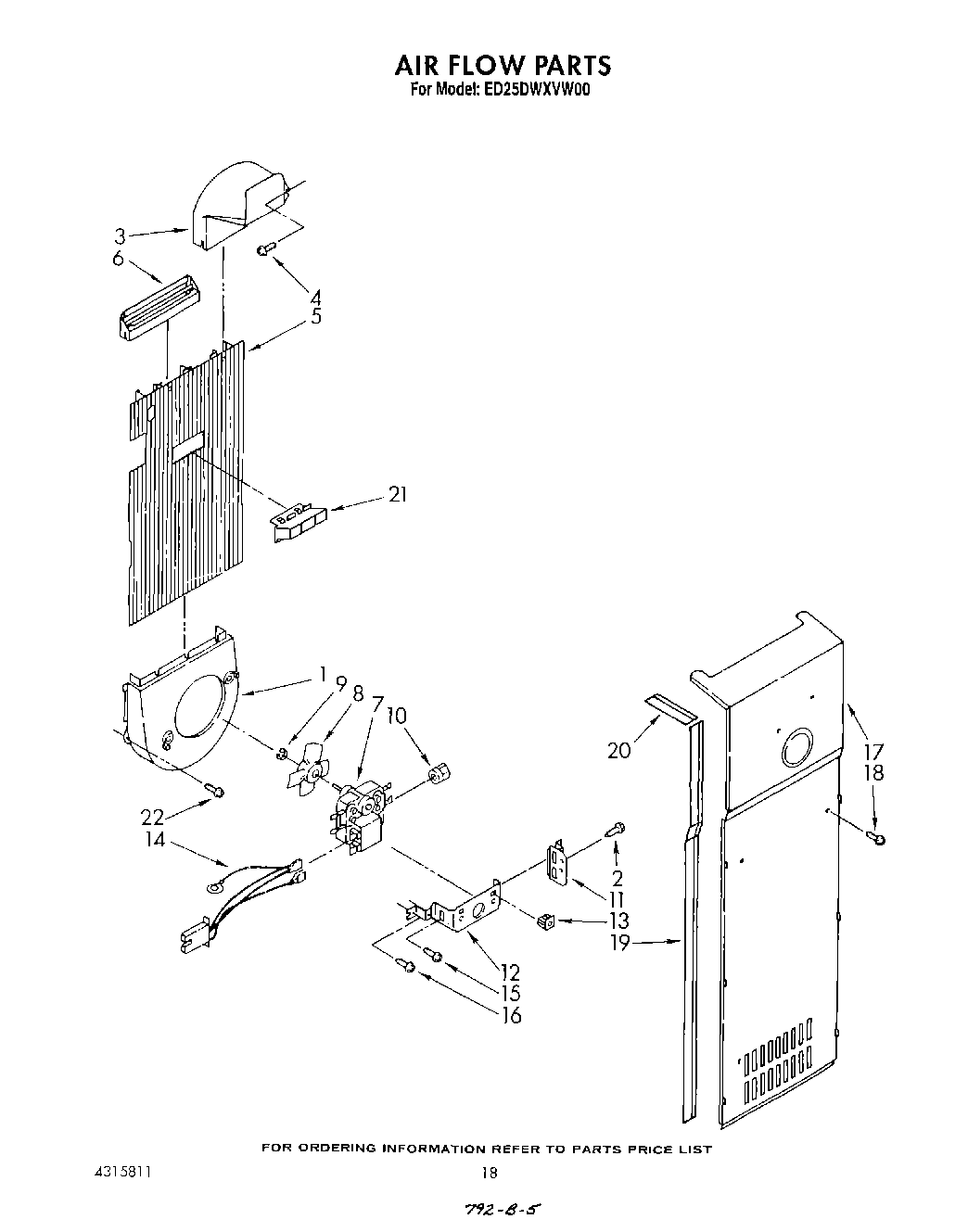

ED25DWXVN00 11 – AIR FLOW

Products

Position	Product
1	Fan Scroll
2	W11624204 Whirlpool Screw
3	Air Scoop
4	WP488729 Whirlpool Refrigerator Door Screw
5	Air Duct Freezer
6	Diffuser Air Duct
7	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
8	Blade, Fan
9	Ring, Compression
10	Grommet (3)
11	Fan, Bracket Double
12	Bracket, Fan Mounting (Single)
13	Screw Grommet
14	Fan Motor, Harness
15	WP489128 Whirlpool Refrigerator Screw
16	WP489069 Whirlpool Compactor Screw
17	Cover, Evaporator
19	Gasket, Evaporator Cover (2)
20	Gasket, Evaporator Cover Top (2)
21	2182146 Whirlpool Refrigerator Duct
22	SCREW
22	WP489478 Whirlpool Refrigerator Screw
