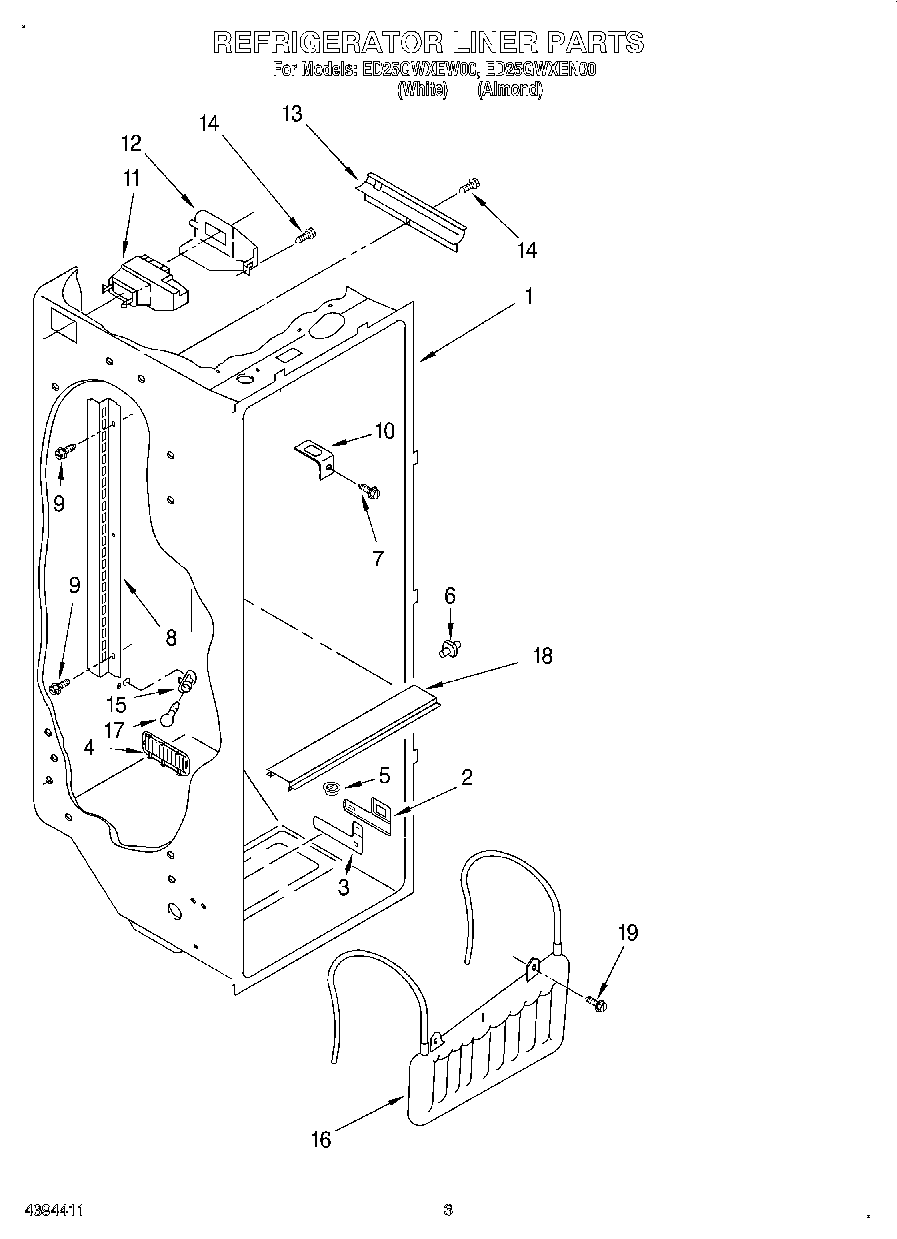

ED25GWXEN00 02 – REFRIGERATOR LINER

ED25GWXEN00 02 – REFRIGERATOR LINER

Written by

in

ED25GWXEN00 02 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
52171846 Whirlpool Refrigerator Release Valve
64388538 Whirlpool Refrigerator Stud Shelf Kit (White)
7WP488488 Whirlpool Refrigerator Screw
8Ladder, Shelf
9WP488729 Whirlpool Refrigerator Door Screw
10WP2256085 Whirlpool Refrigerator Retainer
11WPW10151374 Whirlpool Refrigerator Diffuser
122152019 Whirlpool Refrigerator Cover
132150331 Whirlpool Refrigerator Wire Cover
14W10759522 Whirlpool Screw
154387478 Whirlpool Refrigerator Light Socket
16WP2256126 Whirlpool Refrigerator Reservoir
17RANGE ONLY 40W 120V APPL BULB
18Light Lens
19Screw (2)
