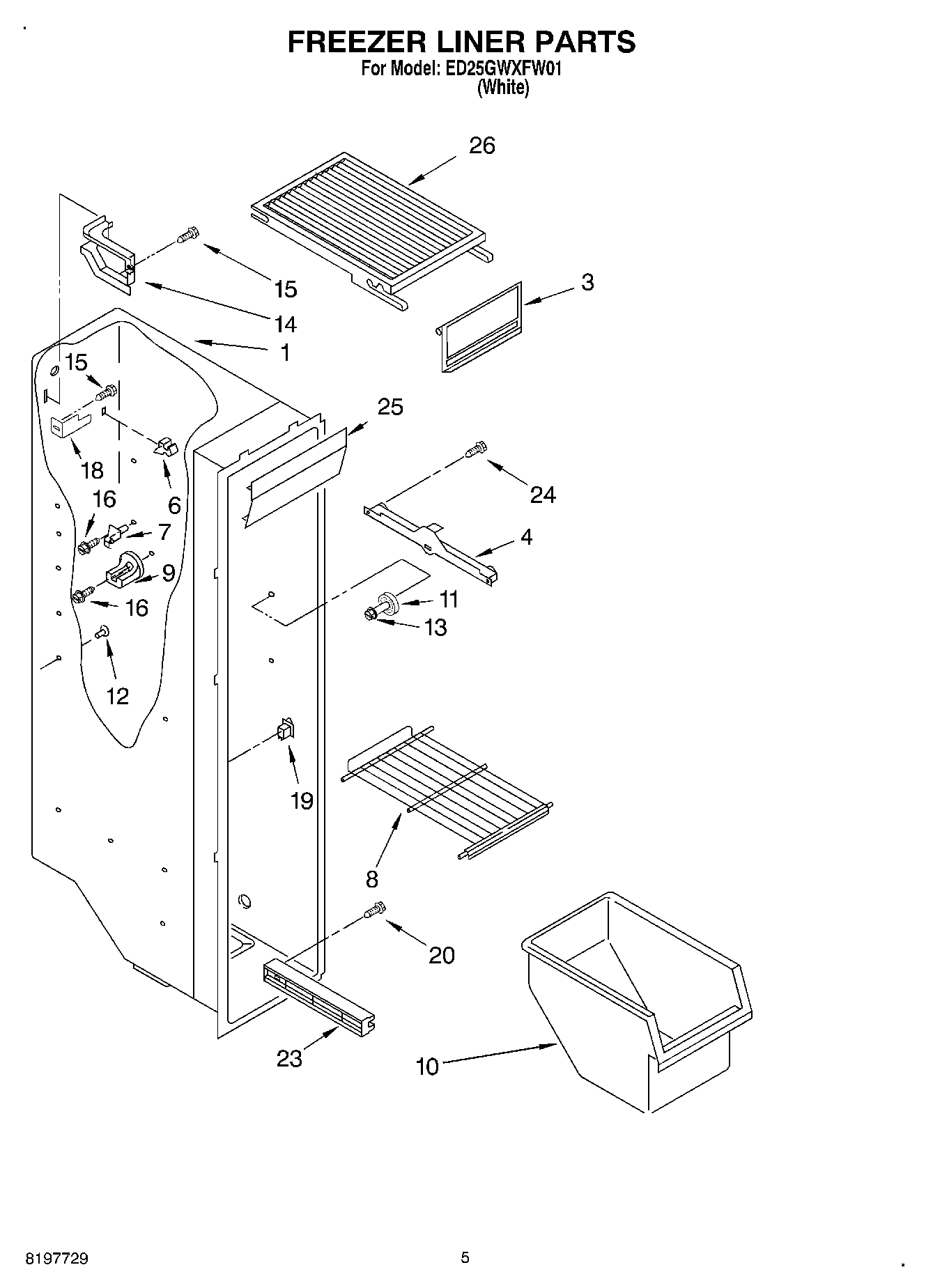

ED25GWXFW01 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
3WP2171713 Whirlpool Refrigerator Ice Door
4W10845583 Whirlpool Refrigerator Track
4W10845585 Whirlpool Refrigerator Track
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8WP2174267 Whirlpool Refrigerator Wire Shelf
8Shelf (2)
9Stud, Rear
10WP2182971 Whirlpool Refrigerator Freezer Bin
11WP2196483 Whirlpool Refrigerator Shelf Stud
12Grommet
13WP3400806 Whirlpool Screw
14Cover, Wiring
15SCREW
16W10142289 Whirlpool Air Conditioner Screw
18Bracket, Fill Tube
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20W10759522 Whirlpool Screw
23Slide, Basket (Left Side (2))
23Slide, Basket (Right Side (2))
24718257 Whirlpool Dishwasher Screw
252171705 Whirlpool Refrigerator Light Lens
26Shelf, Top Compartment
