ED25GWXFW01 08 – FREEZER DOOR

ED25GWXFW01 08 – FREEZER DOOR

Written by

in

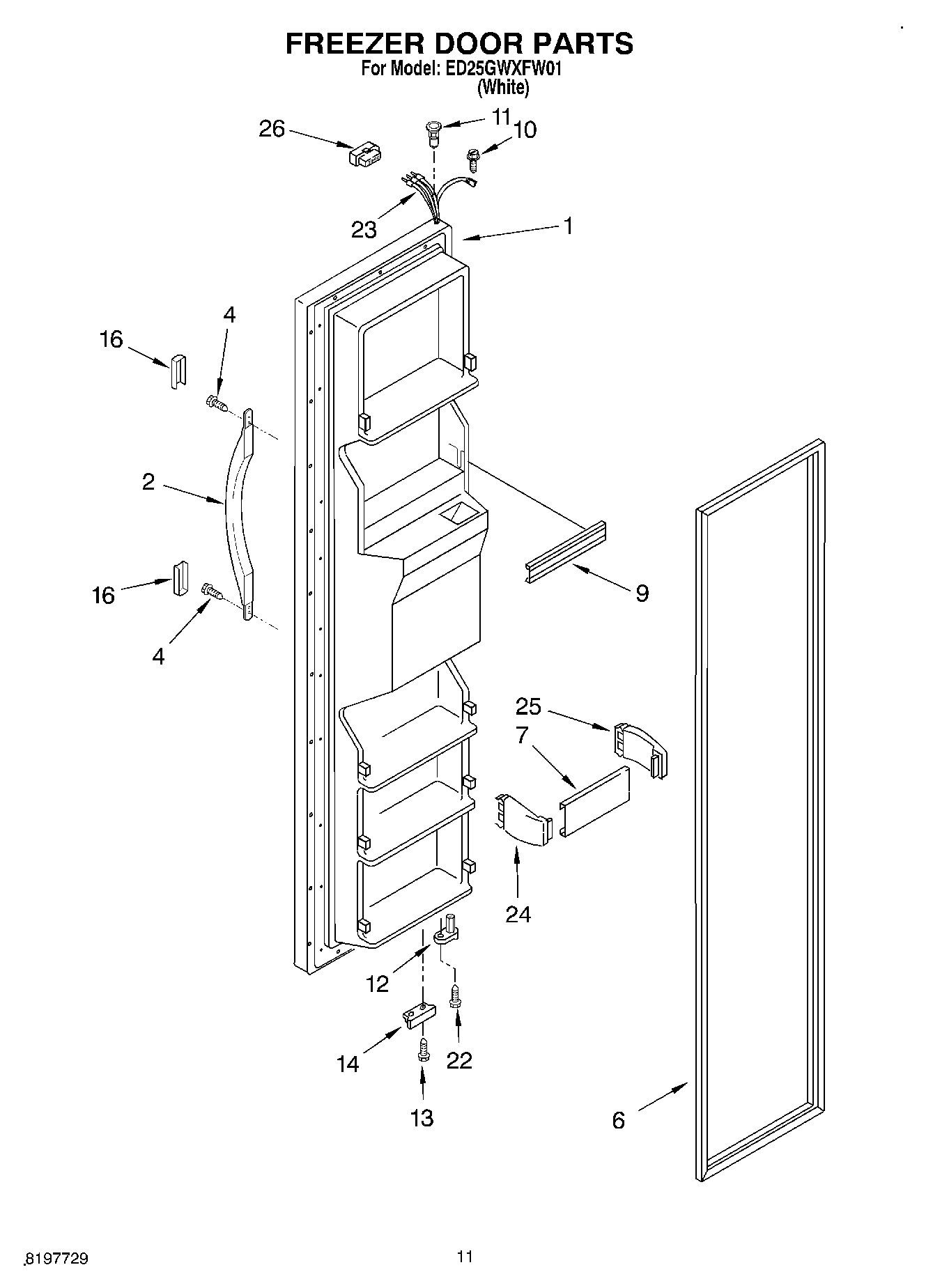

ED25GWXFW01 08 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.6 And Dispenser Front Parts) (White)
2Handle, Center (White)
4WP489491 Whirlpool Refrigerator Screw
62159074 Whirlpool Door Gasket Seal
7Trivet, Shelf (4)
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
11WP2182181 Whirlpool Refrigerator Thimble
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop (Chrome)
16WP2193353W Whirlpool Refrigerator Trim Handle
22WP3400012 Whirlpool Refrigerator Screw
23Wire Harness
24WP2195917K Whirlpool Refrigerator Endcap
25ENDCAP
26WP2154473 Whirlpool Refrigerator Connector
