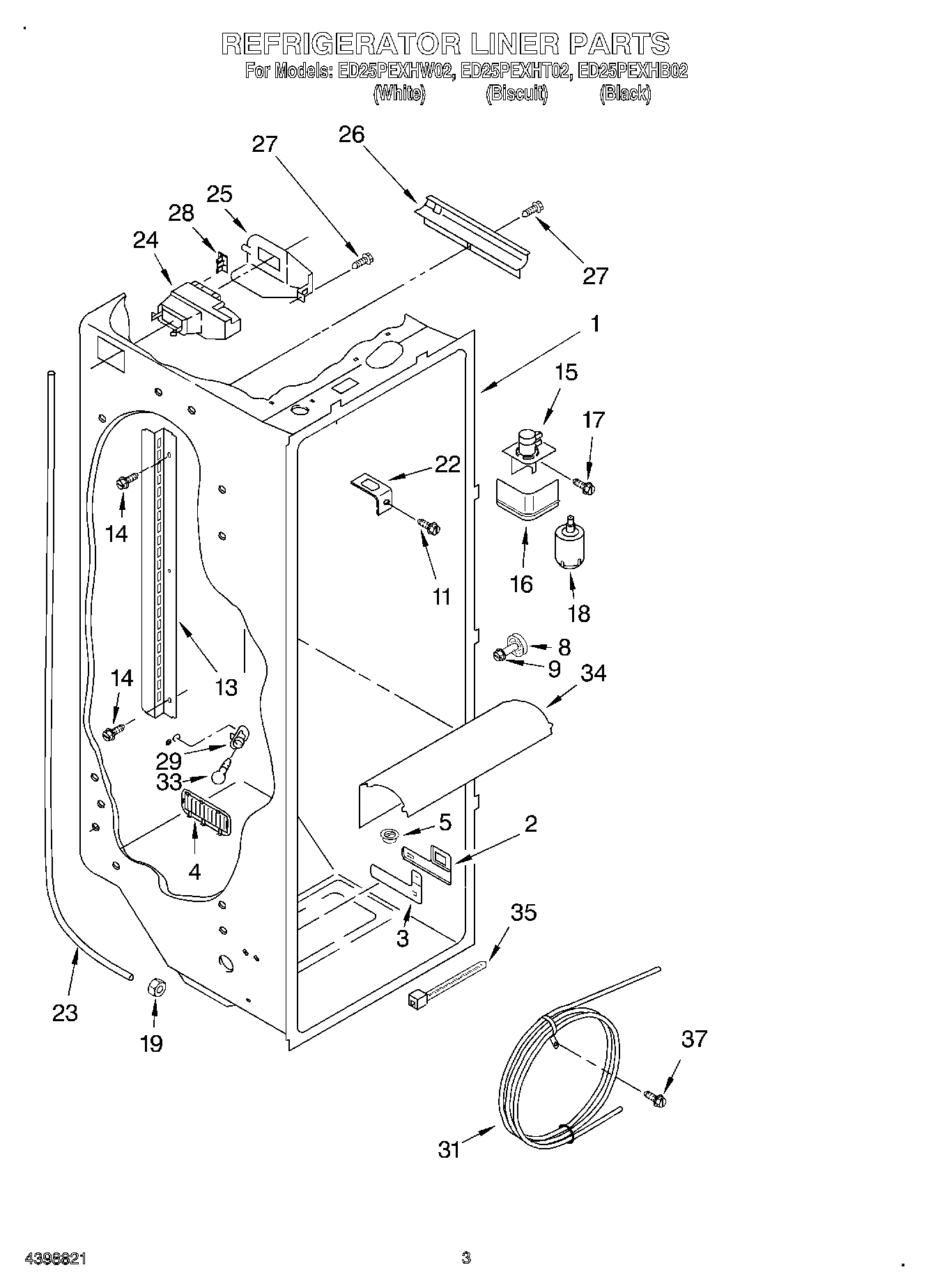

ED25PEXHB02 02 – REFRIGERATOR LINERadmin2025-04-26T09:49:45+00:00ED25PEXHB02 02 – REFRIGERATOR LINER ProductsPositionProduct1Liner (Not A Serviceable Part)22194744 Whirlpool Refrigerator Escutcheon32182757 Whirlpool Refrigerator Slide4Louver52171846 Whirlpool Refrigerator Release Valve8WP2196483 Whirlpool Refrigerator Shelf Stud9WP3400806 Whirlpool Screw11WP488488 Whirlpool Refrigerator Screw13Ladder, Shelf14WP488729 Whirlpool Refrigerator Door Screw15Bracket, Water Filter16Cover, Water Filter17WP488163 Whirlpool Refrigerator Screw18Water Filter19Compression Nut (Inlet)19Nut, Compression22WP2256085 Whirlpool Refrigerator Retainer23Water Tube (Outlet)23Water Tube (Inlet)24WPW10151374 Whirlpool Refrigerator Diffuser252152019 Whirlpool Refrigerator Cover262150331 Whirlpool Refrigerator Wire Cover27W10759522 Whirlpool Screw28Air Diffuser Cover294387478 Whirlpool Refrigerator Light Socket31WP2256126 Whirlpool Refrigerator Reservoir33RANGE ONLY 40W 120V APPL BULB34Light Lens35WPW10339879 Whirlpool Wire Tie37Screw (2)
