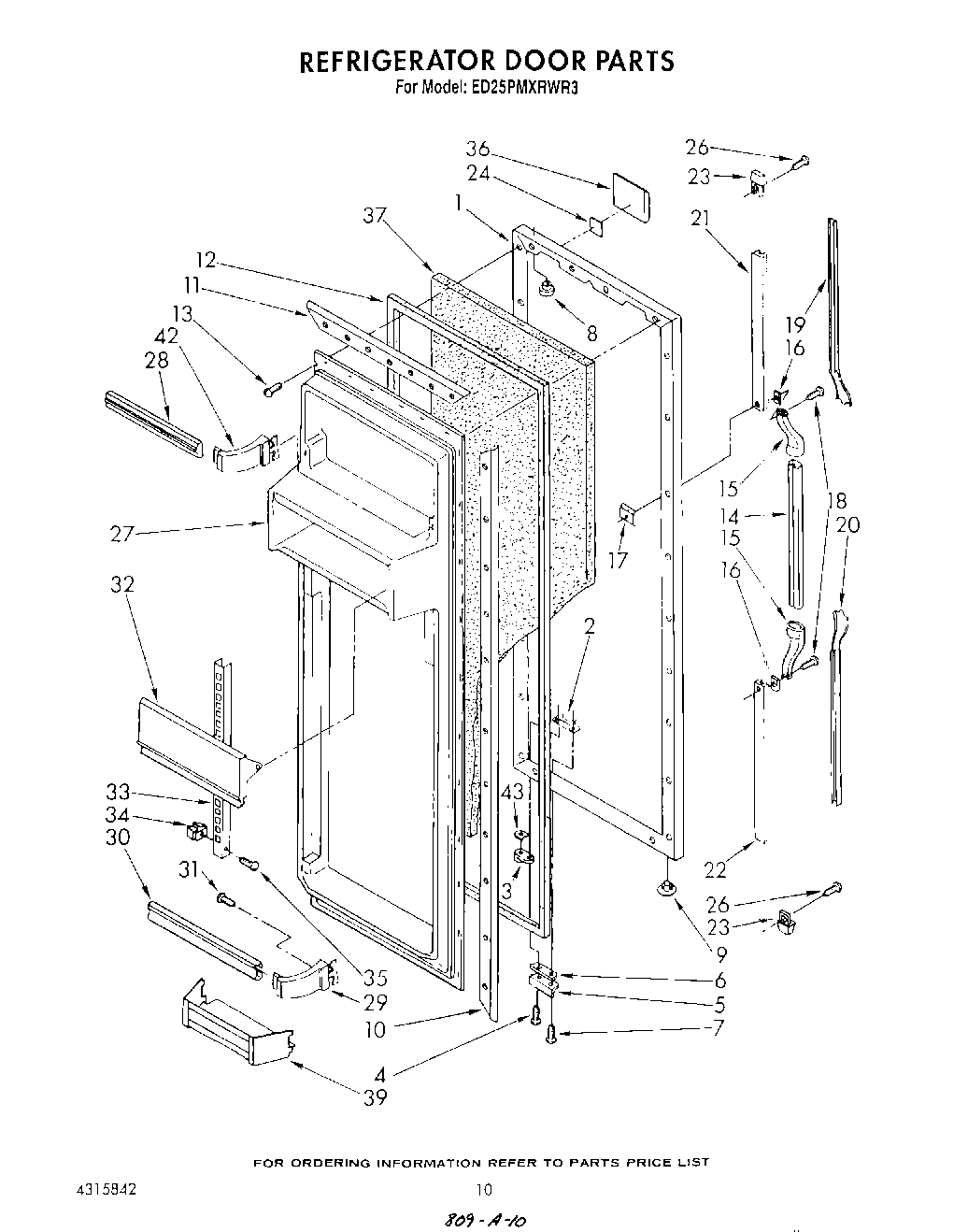

ED25PMXRWR3 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator, Door Panel (Almond)
1	Refrigerator, Door Panel (Golden Harvest)
1	Refrigerator, Door Panel (White)
1	Refrigerator Door Panel (Platinum)
1	Refrigerator, Door Panel (Toast)
2	Tap Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489069 Whirlpool Compactor Screw
5	Bracket, Door Stop
6	Shim
7	Screw, 89 x 5/8
8	Cap, Hinge Sleeve (2)
9	Hole Plug (2)
10	Retainer, Gasket Side
11	Retainer, Top & Bottom
12	Door Gasket, Magnetic (For Platinum Model Only)
13	SCREW
14	Handle, Center
15	Center End Cap, Handle
16	Shim
17	Screw Anchor (2)
19	Insert, Handle (Top)
20	Insert, Handle (Bottom)
21	Retainer Insert (Top)
22	Retainer Insert (Bottom)
23	End Cap
24	Tape Strip
26	Screw, 10-32 x 5/8
27	Interior Door Panel (For Platinum Model Only)
28	Trim, Door Shelf
29	Retainer, Door Trim (For Platinum Model Only)
30	Trim, Door Shelf
31	WP488787 Whirlpool Refrigerator Screw
32	Door, Compartment
33	Shelf Ladder
34	Expansion Clip
35	WP488729 Whirlpool Refrigerator Door Screw
36	Escutcheon, Nameplate
37	WPL 876029
39	WPL 1108920
42	WP849996 Whirlpool Refrigerator Endcap Trim
43	WP1104787 Whirlpool Refrigerator Shim
