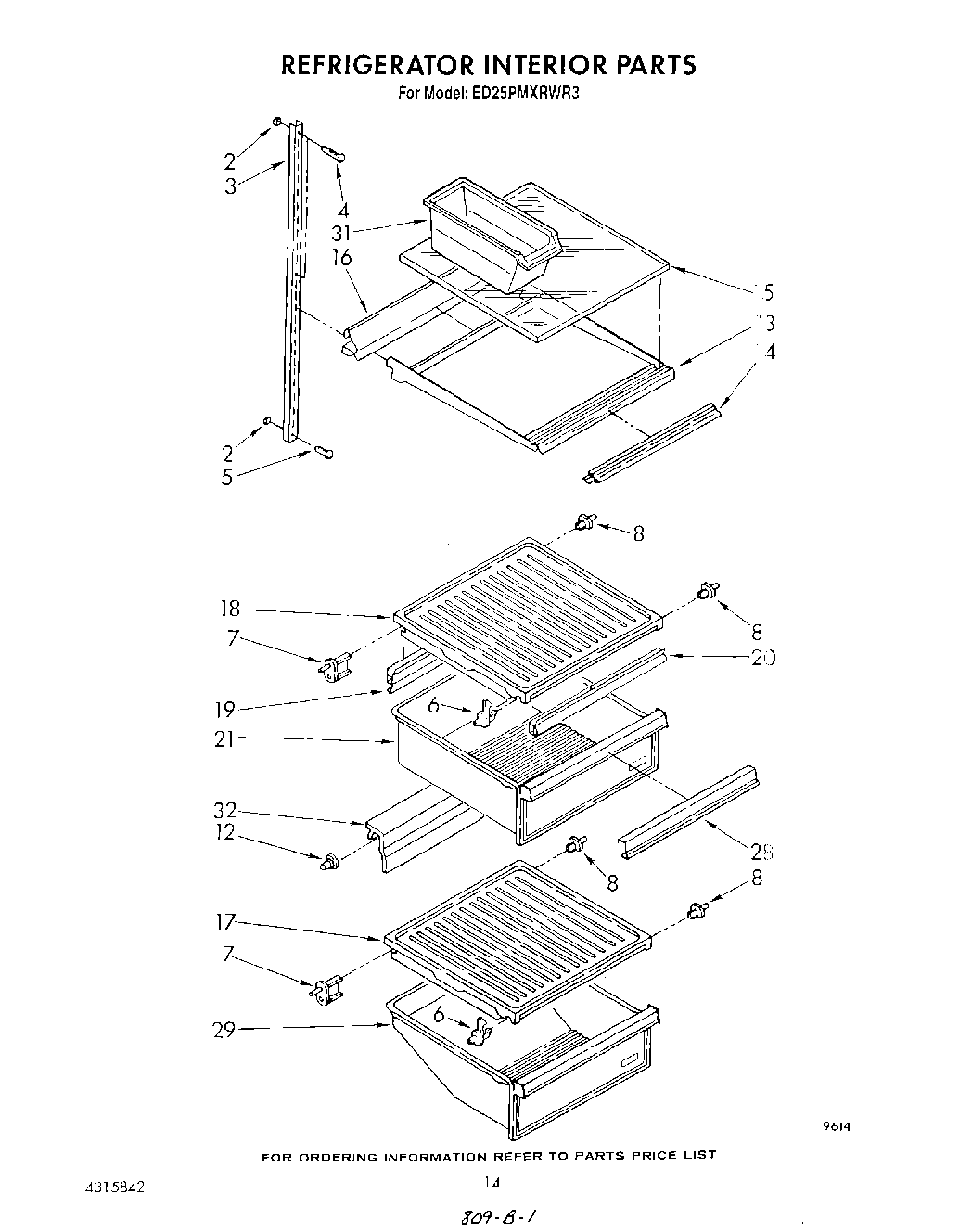

ED25PMXRWR3 08 – REFRIGERATOR INTERIOR , LIT/OPTIONAL

ED25PMXRWR3 08 – REFRIGERATOR INTERIOR , LIT/OPTIONAL

Written by

in

ED25PMXRWR3 08 – REFRIGERATOR INTERIOR , LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350942 Whirlpool Spray Paint
	Torx Key
	WPL LIT628107
	WPL LIT1114057
	Paint, Spray (13 Oz.) (Platinum)
	WPL LIT1115580
	Golden Harvest
	WPL LIT1111895
	285363 Whirlpool Fill Hose
	285006 Whirlpool Spray
	Leveler (Thinner)
	350956 Whirlpool Spray Assembly
	WPL LIT4315842
2	520965 Whirlpool Refrigerator Support
3	Shelfladder (2)
4	Screw, 8 x 1-1/4 (3)
5	Screw, 8-32 x 1-1/4
5	Screw (Repair)
6	Shelf, Stud
7	Shelf Stud
8	Shelf, Stud
12	Retainer Stud
13	Shelf, Cantilever
14	Shelf Trim, Cantilever
15	Glass, Cantilever Shelf
16	Reflector, Cantilever
17	Pan Slide & Cover (2)
18	Pan Slide & Cover
19	Crisper Basket, Rear
20	Crisper Gasket Front
21	Pan Crisper (2)
28	Overlay, Front Cover
29	Pan, Meat
31	WP982704 Whirlpool Refrigerator Container
32	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
32	WPL 984233
32	WP542638 Whirlpool Refrigerator Grease
32	72032 Whirlpool Touch Up Paint Black
32	212643 Whirlpool Refrigerator Permagum Sealer
32	WPL 72112
32	Platinum (Uncut)
32	Enamal, Toast (1 Qt. Uncut)
32	Golden Harvest (Uncut)
32	72113 Whirlpool Touch-Up Paint
32	Almond (Uncut)
32	WP72107 Whirlpool Touchup
32	799344 Whirlpool Refrigerator Paint
32	511873 Whirlpool Refrigerator Paint
32	606755 Whirlpool Refrigerator Bag
32	833938 Whirlpool Refrigerator Terminal
32	WPL 876029
32	WPL 799833
32	WPL 799832
32	Enamel, Black (1 Qt. Uncut)
32	CEMENT, ALUMILASTIC (1 1/4 OZ.)
32	TAPE, VINYL (3/4 X 108“)
32	WP505587 Whirlpool Refrigerator Sealer
32	WP503695 Whirlpool Refrigerator Sealer
32	876370 Whirlpool Refrigerator Insulation
32	72017 Whirlpool Appliance Touch-Up Paint White
