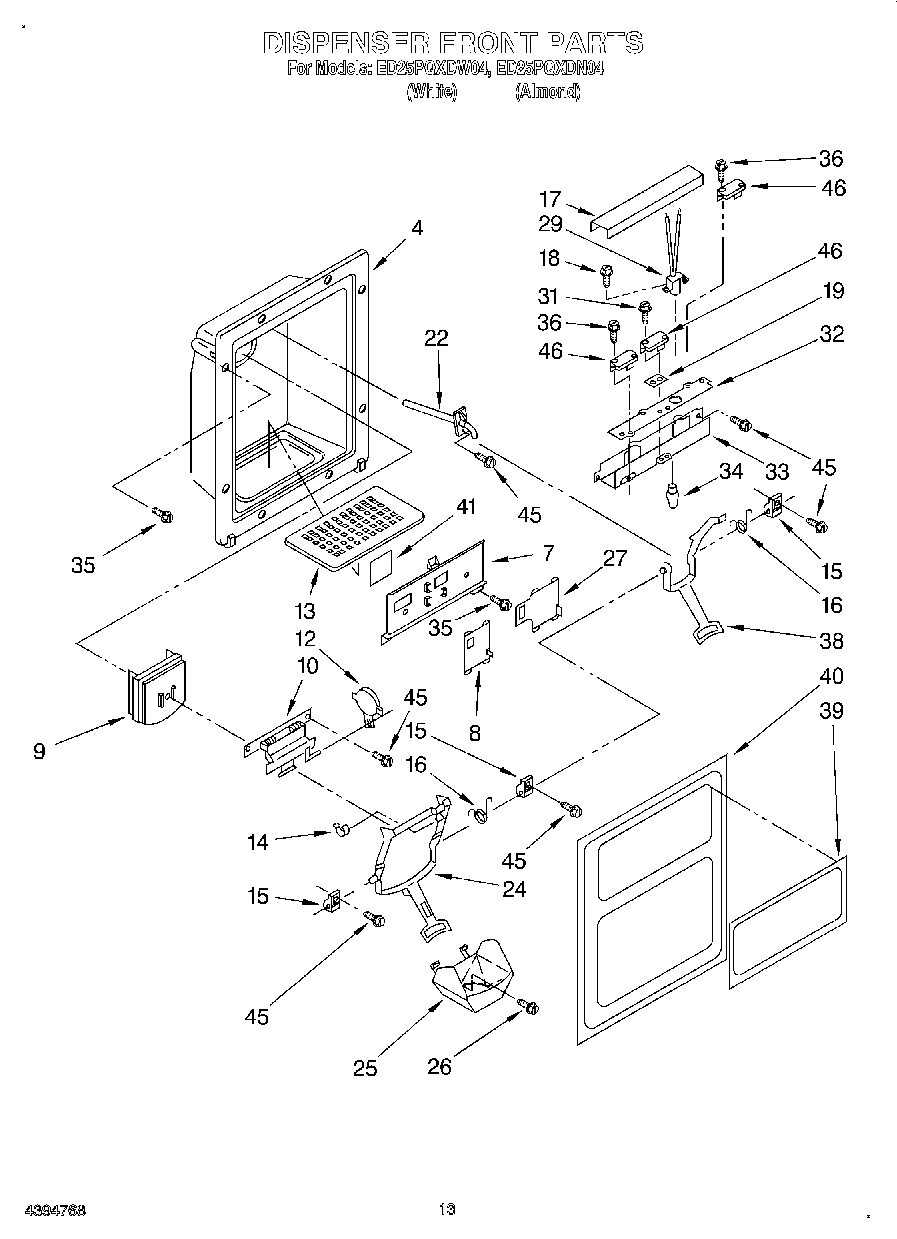

ED25PQXDN04 08 – DISPENSER FRONT

Products

Position	Product
4	Housing, Dispenser (Not a Serviceable Part)
7	Frame, Slides (Almond)
7	Frame, Slides
8	Slide, Cube/Crush Switch
8	Slide, Cube/Crush Switch (Almond)
9	WP2180353 Whirlpool Dispenser Door
10	Door Mechanism Assembly
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow (White)
13	Grille, Overflow (Almond)
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
19	Spacer, Switch (2)
22	WP4388152 Whirlpool Refrigerator Fitting
24	Lever, Ice Dispenser (Almond)
24	Lever, Ice Dispenser (White)
25	Guide, Ice (Almond)
25	Guide, Ice
26	Screw
27	Slide, Light Switch (Almond)
27	Slide, Light Switch
29	Lamp Holder
31	Screw, 4-40 x 1
32	Insulator, Control Bracket
33	Bracket, Control
34	WP22002263 Whirlpool Dryer 10W Light Bulb
35	WP489069 Whirlpool Compactor Screw
36	Screw,
38	Lever, Water Dispenser (Almond)
38	Lever, Water Dispenser (White)
39	Plaque, Front Cover (White)
39	Plaque, Front Cover (Almond)
40	Front Cover, Housing (Includes Item 39) (Almond)
40	Front Cover, Housing (Includes Item 39) (White)
41	Heat Shield, Frame
45	WP3400906 Whirlpool Refrigerator Screw
46	WP2162361 Whirlpool Switch
