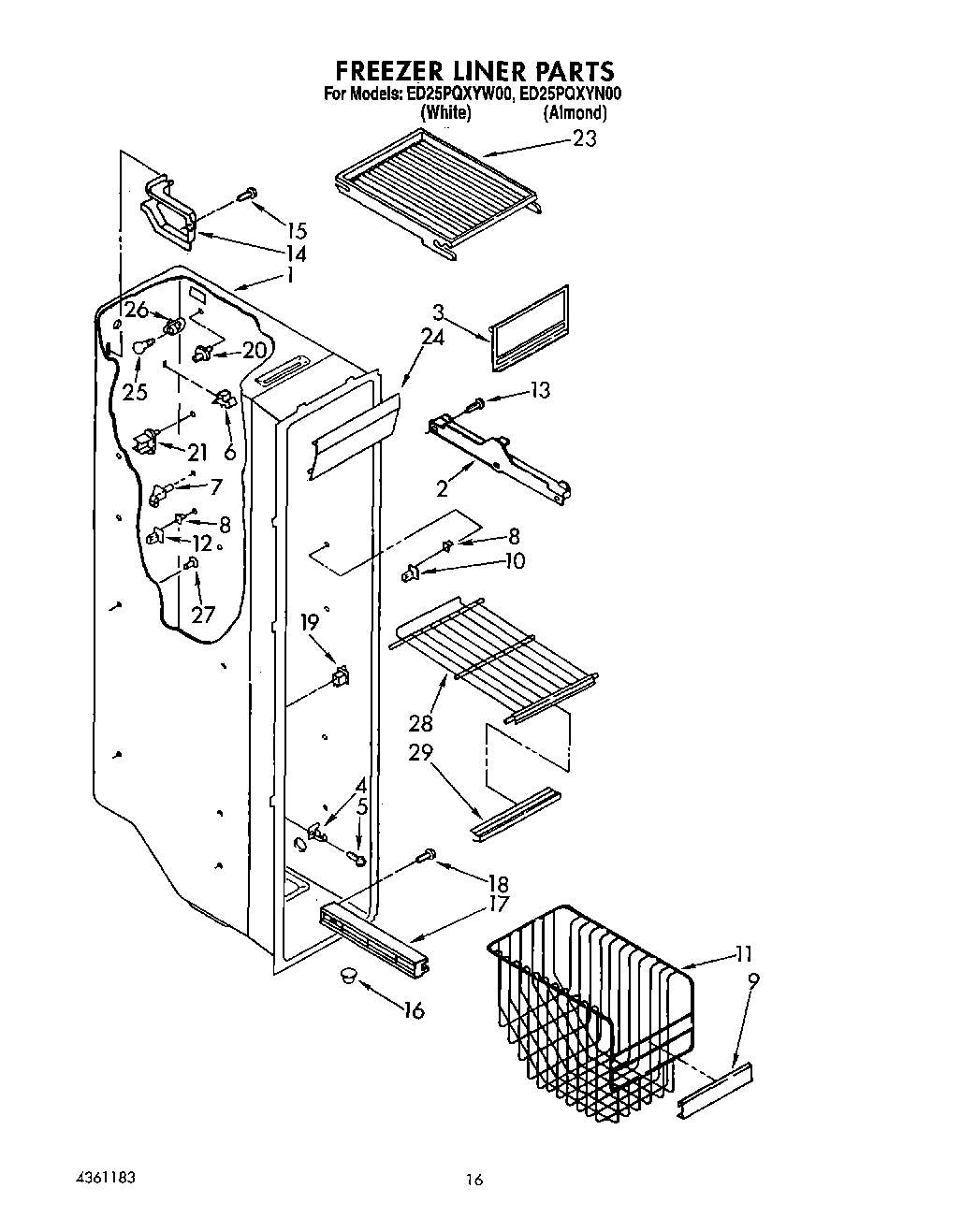

ED25PQXYN00 11 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	W10845585 Whirlpool Refrigerator Track
2	W10845583 Whirlpool Refrigerator Track
3	Door, Ice Compartment
4	Evaporator, Support
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Stud, Support
9	Trim, Basket
10	Stud, Front R.S.
11	Basket, Slope
12	Stud, Rear R.S.
13	718257 Whirlpool Dishwasher Screw
14	Wiring Cover
15	WP488729 Whirlpool Refrigerator Door Screw
16	Fitting, Drain
17	Shelf Track (Left Side (4))
17	Shelf Track (Right Side (4))
18	W11693756 Whirlpool Screw Assembly
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
21	Stud, Shelf (4)
23	Shelf, Top Compartment
24	Light Lens
25	RANGE ONLY 40W 120V APPL BULB
26	4387478 Whirlpool Refrigerator Light Socket
27	Grommet (8)
28	Shelf (3)
29	Trim, Shelf (3)
