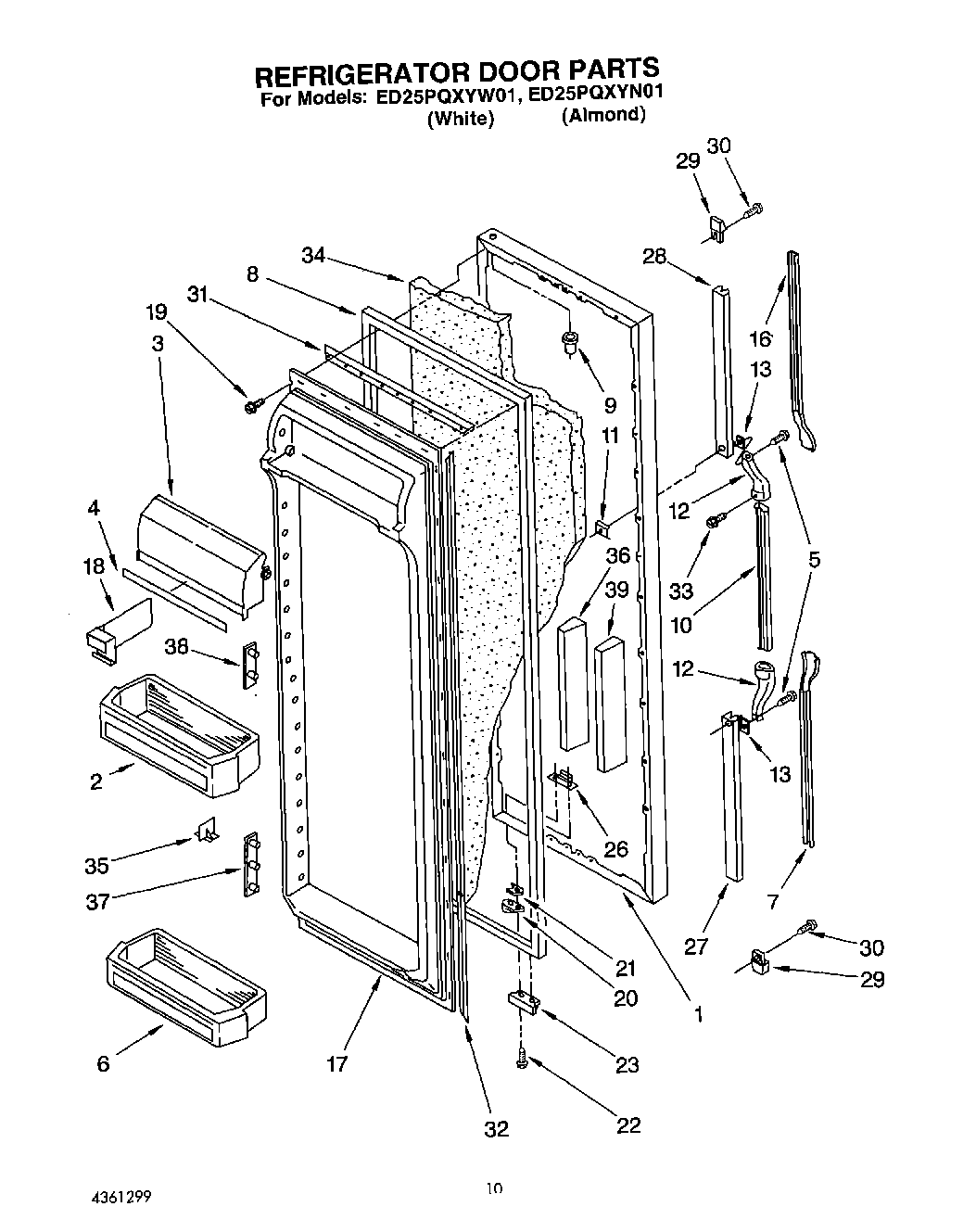

ED25PQXYN01 08 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Almond (Also Order Item 34))
1	Refrigerator Door (White)
2	Shelf Bin (2)
3	Door, Compartment
4	Trim, Compartment Door
6	Shelf Bin (2)
7	Insert, Handle (White)
7	Insert, Handle (Almond)
8	Door Gasket, Magnetic
9	Cap, Hinge Sleeve (2)
10	Handle, Center
11	Screw Anchor (2)
12	End Cap, Center Handle
13	Shim
16	Insert, Handle (Almond)
16	Insert, Handle (White)
17	Panel, Interior Door
18	Divider, Bin
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
21	WP1104787 Whirlpool Refrigerator Shim
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop
26	Tap Plate
27	Retainer, Insert (Bottom)
28	Retainer, Insert
29	End Cap (2)
30	Screw
31	Gasket Retainer, Top & Bottom
32	Gasket Retainer, Side (2)
33	Screw
34	WPL 876029
35	Divider, Shelf
36	Door Dike, Hinge Side
37	Pin Plate (8)
38	Pin Plate (6)
39	Door Dike, Handle Side
