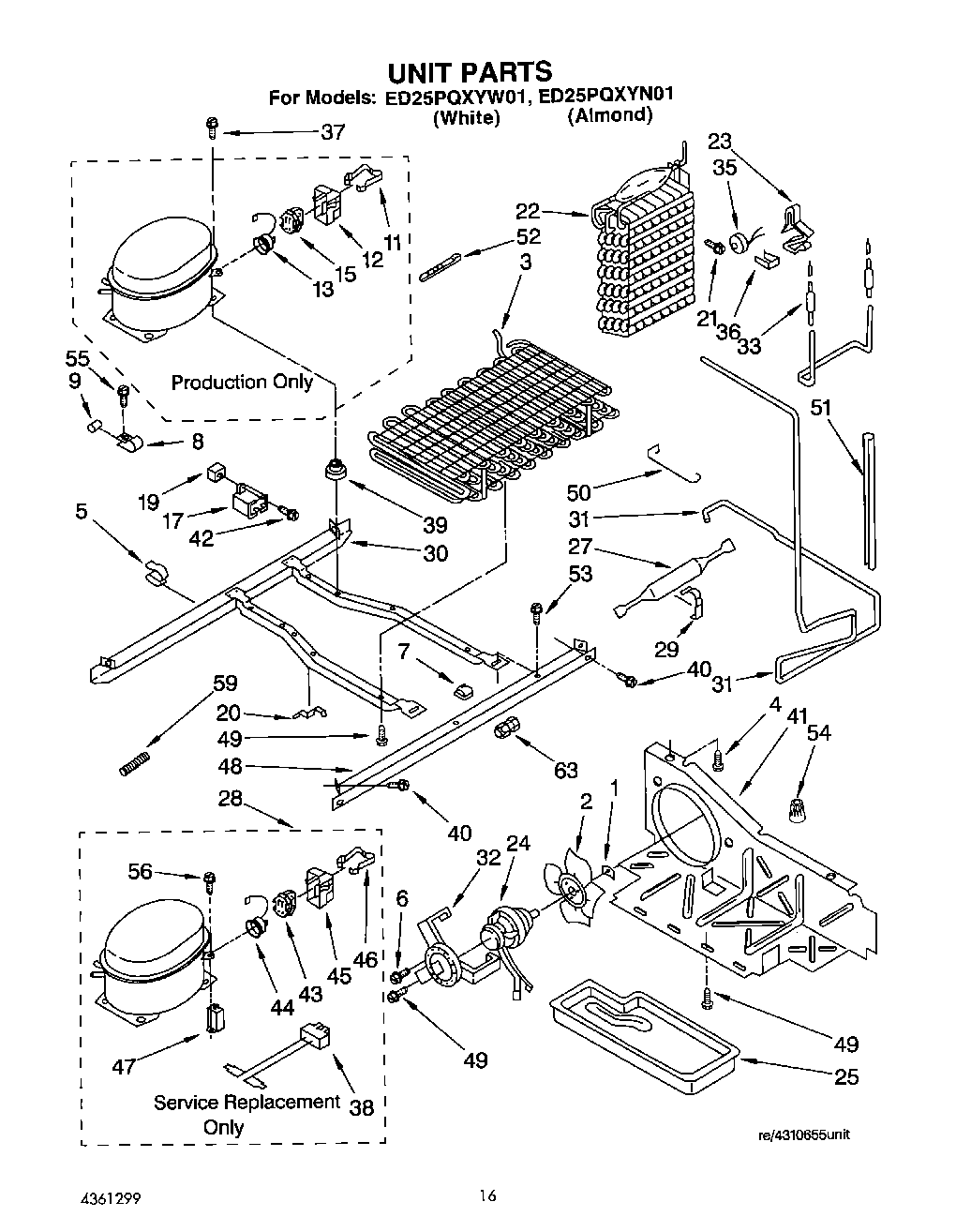

ED25PQXYN01 11 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Clip, Tube (3)
8	Clamp Tube
9	Dampener (2)
11	case spring
12	Case, Relay
13	Overload
15	Relay (Order Overload To Obtain Relay)
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
19	Screw Grommet
20	Clip (2)
21	WP489478 Whirlpool Refrigerator Screw
22	Evaporator
23	Clamp (4)
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 56, 57 & 58) (Also Order)
29	Clamp, Dryer
30	2304904 Whirlpool Frame Assembly
31	Exchanger, Heat
32	Fan, Motor Bracket
33	Heater, Defrost
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
43	Relay (Order Overload To Obtain Relay)
44	WP2154697 Whirlpool Refrigerator Overload
45	Cover
46	Strap
48	2305374 Whirlpool Refrigerator Unit Rail
49	Screw, 8 x 3/8
50	Guard, Fan
51	WP2002171 Whirlpool Refrigerator Sleeve
52	Strap
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
56	W11693756 Whirlpool Screw Assembly
59	Spring-Tube
63	876764 Whirlpool Refrigerator Primary Valve
63	VALVE, ACCESS (5/8“)
63	WP4211117 Whirlpool Refrigerator Connector
63	978026 Whirlpool Refrigerator Primary Valve
63	978027 Whirlpool Refrigerator Primary Valve
63	978030 Whirlpool Refrigerator Valve
63	WP978025 Whirlpool Refrigerator Valve
63	VALVE, ACCESS (1/2“)
