ED25PQXYN01 13 – CONTROL, LIT/OPTIONAL

ED25PQXYN01 13 – CONTROL, LIT/OPTIONAL

Written by

in

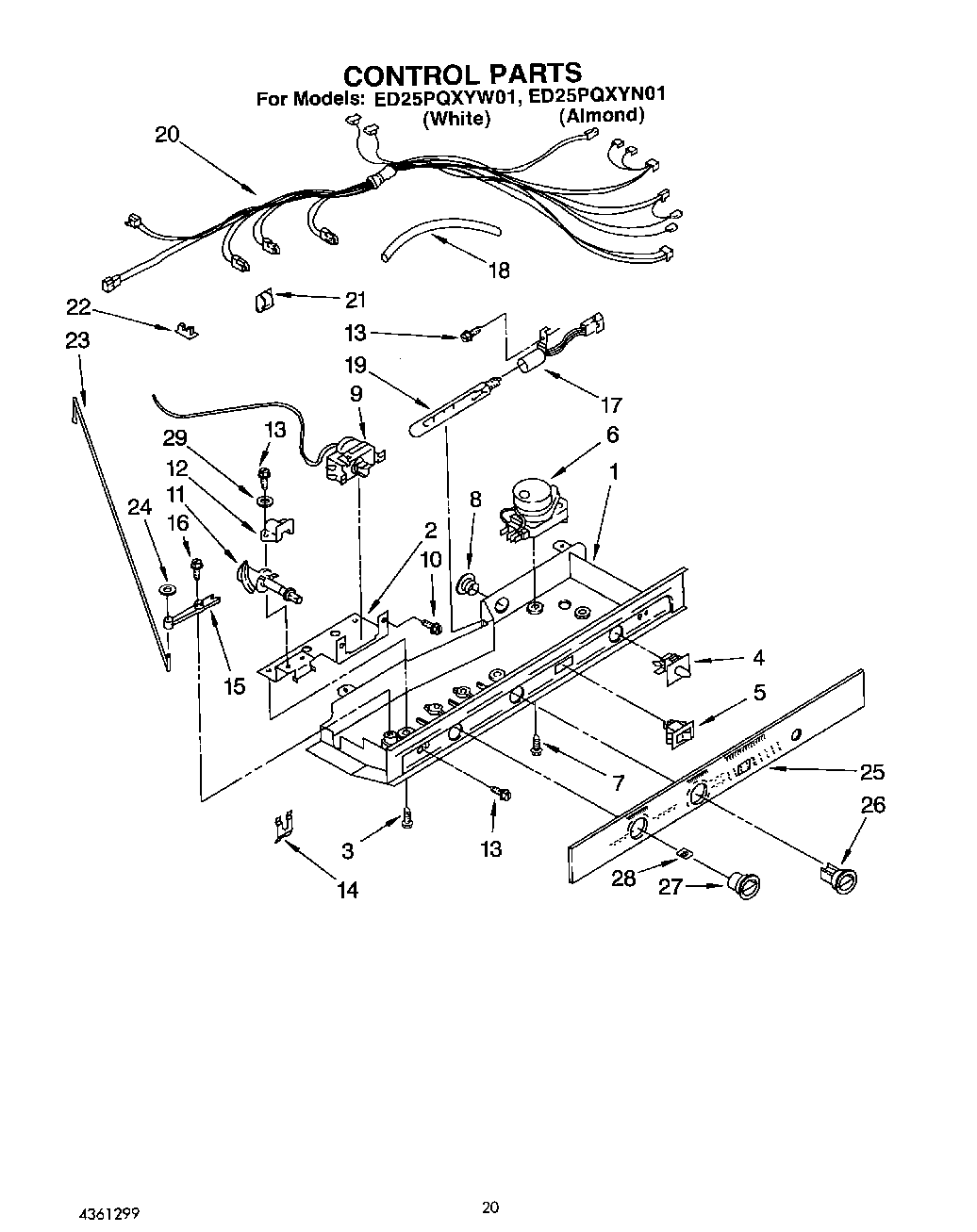

ED25PQXYN01 13 – CONTROL, LIT/OPTIONAL

Products

PositionProduct
Modular Icemaker Service Sheet
WPL LIT2160062
WPL LIT2160149
WPL LIT2154993
WPL LIT4361299
1Control Box
2Mounting Bracket
3Screw (2)
4WP2149705 Whirlpool Refrigerator Door Switch
5WP938213 Whirlpool Refrigerator Power Switch
6Timer, Defrost (10 Hour)
7489392 Whirlpool Refrigerator Screw
8940014 Whirlpool Refrigerator Primary Button Plug
9WP2198202 Whirlpool Refrigerator Temperature Thermostat
10WP965173 Whirlpool Dishwasher Screw
11Cam Assembly
121110560 Whirlpool Refrigerator Bearing
13WP489478 Whirlpool Refrigerator Screw
14Retainer, Damper
15Pivot Arm
16627068 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
18WP2196003 Whirlpool Refrigerator Bar Riser
19RANGE ONLY 40W 120V APPL BULB
20Control Box Harness
21WP1115374 Whirlpool Refrigerator Clip
22CLIP, WIRING
23Connecting Rod
24Fastener, Push-On
25Escutcheon Control
262182111 Whirlpool Refrigerator Thermal Knob
27Knob, Air Control
28Knob, Retainer
29350930 Whirlpool White Spray Paint
29489203 Whirlpool Refrigerator Washer
29Transformer (115-230 Volt)
29CEMENT, ALUMILASTIC (1 1/4 OZ.)
29WPW10312300 Whirlpool Refrigerator Ice Container
29606755 Whirlpool Refrigerator Bag
29511873 Whirlpool Refrigerator Paint
29350942 Whirlpool Spray Paint
29212643 Whirlpool Refrigerator Permagum Sealer
29Almond (Uncut)
29Leveler (Thinner)
29WP72107 Whirlpool Touchup
29799344 Whirlpool Refrigerator Paint
2972017 Whirlpool Appliance Touch-Up Paint White
29833938 Whirlpool Refrigerator Terminal
29876370 Whirlpool Refrigerator Insulation
2972032 Whirlpool Touch Up Paint Black
29285006 Whirlpool Spray
29WPL 876029
29WPL 799833
29Enamel, Black (1 Qt. Uncut)
29TAPE, VINYL (3/4 X 108“)
29WP542638 Whirlpool Refrigerator Grease
29WP505587 Whirlpool Refrigerator Sealer
29WP503695 Whirlpool Refrigerator Sealer
29350956 Whirlpool Spray Assembly
