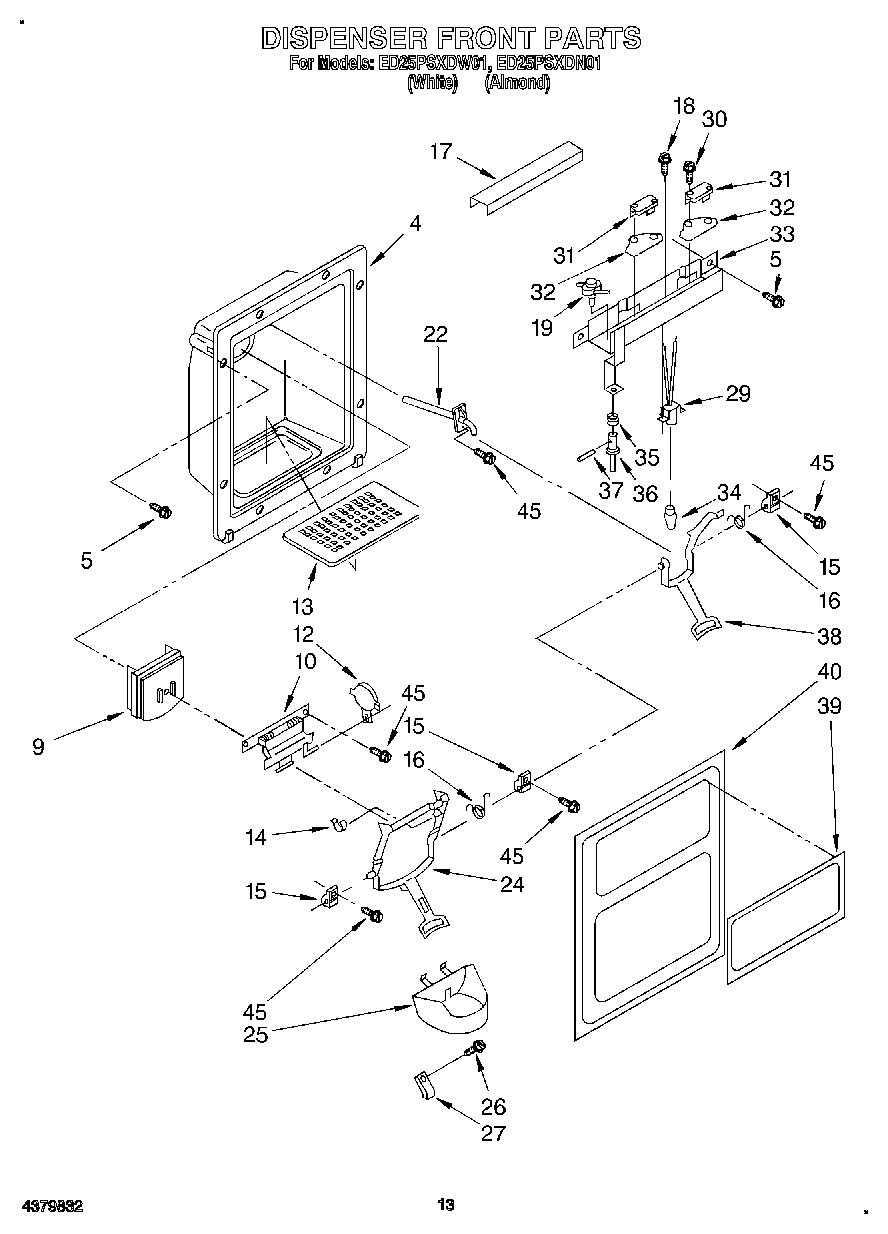

ED25PSXDW01 08 – DISPENSER FRONT

Products

Position	Product
4	Housing, Dispenser (Not a Serviceable Part)
5	W11693756 Whirlpool Screw Assembly
9	WP2180353 Whirlpool Dispenser Door
10	Door Mechanism Assembly
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow (White)
13	Grille, Overflow (Almond)
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
19	Switch, Light
22	WP4388152 Whirlpool Refrigerator Fitting
24	Lever, Ice Dispenser (White)
24	Lever, Ice Dispenser (Almond)
25	Guide, Ice (Almond)
25	Guide, Ice (White)
26	Screw
27	Stop, Glass (White)
27	Stop, Glass (Almond)
29	Socket, Lamp
30	Screw
31	WP2162361 Whirlpool Switch
32	Insulator, Switch (2)
33	Bracket, Control
34	WP22002263 Whirlpool Dryer 10W Light Bulb
35	Spring, Plunger
36	Plunger
37	Pin, Retainer
38	Lever, Water Dispenser (White)
38	Lever, Water Dispenser (Almond)
39	Plaque, Front Cover (Almond)
39	Plaque, Front Cover (White)
40	Front Cover, Housing (Includes Item 39) (Almond)
40	Front Cover, Housing (Includes Item 39) (White)
45	WP3400906 Whirlpool Refrigerator Screw
