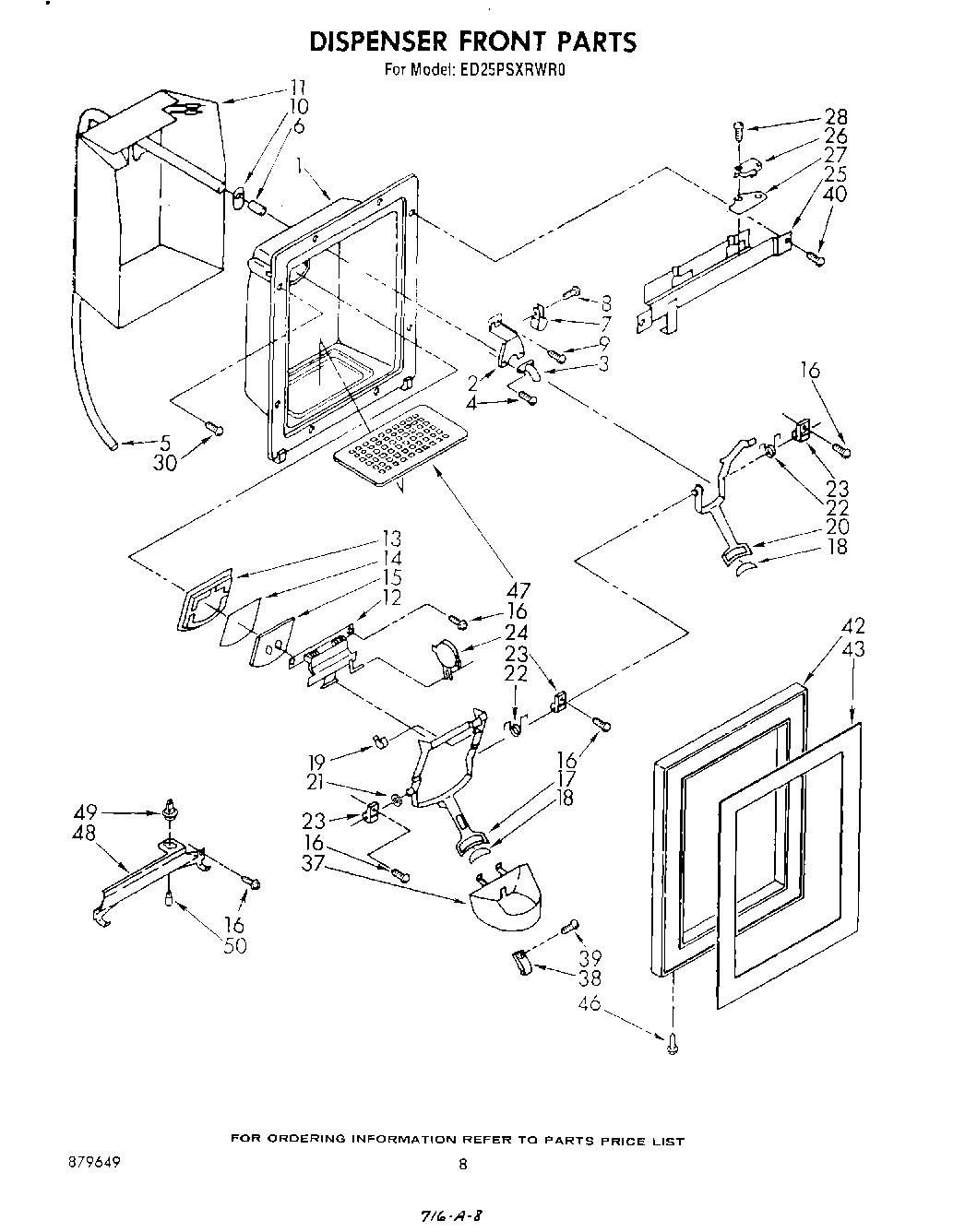

ED25PSXRWR0 05 – DISPENSER FRONT

Products

Position	Product
1	Housing, Dispenser
2	Bracket, Water
3	WP4388152 Whirlpool Refrigerator Fitting
5	W10823511 Whirlpool Refrigerator Water Tube
6	4387491 Whirlpool Refrigerator Insert
7	WP488878 Whirlpool Refrigerator Tube Clamp
8	WP965173 Whirlpool Dishwasher Screw
9	Screw, 8-18 x 3/4
10	Grommet
11	Heater, Ice Dispenser
12	Door Mechanism Assembly
13	Gasket, Door
14	Shield, Ice Door
15	Door, Ice
16	WP3400906 Whirlpool Refrigerator Screw
17	Lever, Ice Dispenser
18	Pad, Lever
19	Clip, Bearing (2)
20	WP987074 Whirlpool Refrigerator Dispenser Arm
21	Washer
22	Spring, Lever (2)
23	Bearing, Lever
24	WP1120581 Whirlpool Refrigerator Mechanism
25	Control, Bracket
26	Switch
27	Insulation, Switch
28	Screw,
30	WP489128 Whirlpool Refrigerator Screw
37	Guide, Ice
38	Glass Top
39	Screw
40	W11693756 Whirlpool Screw Assembly
42	Front Cover Housing
43	Insert, Front Housing
46	WP488729 Whirlpool Refrigerator Door Screw
47	Grille, Overflow
48	Bracket, Light
49	Socket, Light
50	Light Bulb
