ED25PSXRWR0 12 – AIRFLOW AND CONTROL

ED25PSXRWR0 12 – AIRFLOW AND CONTROL

Written by

in

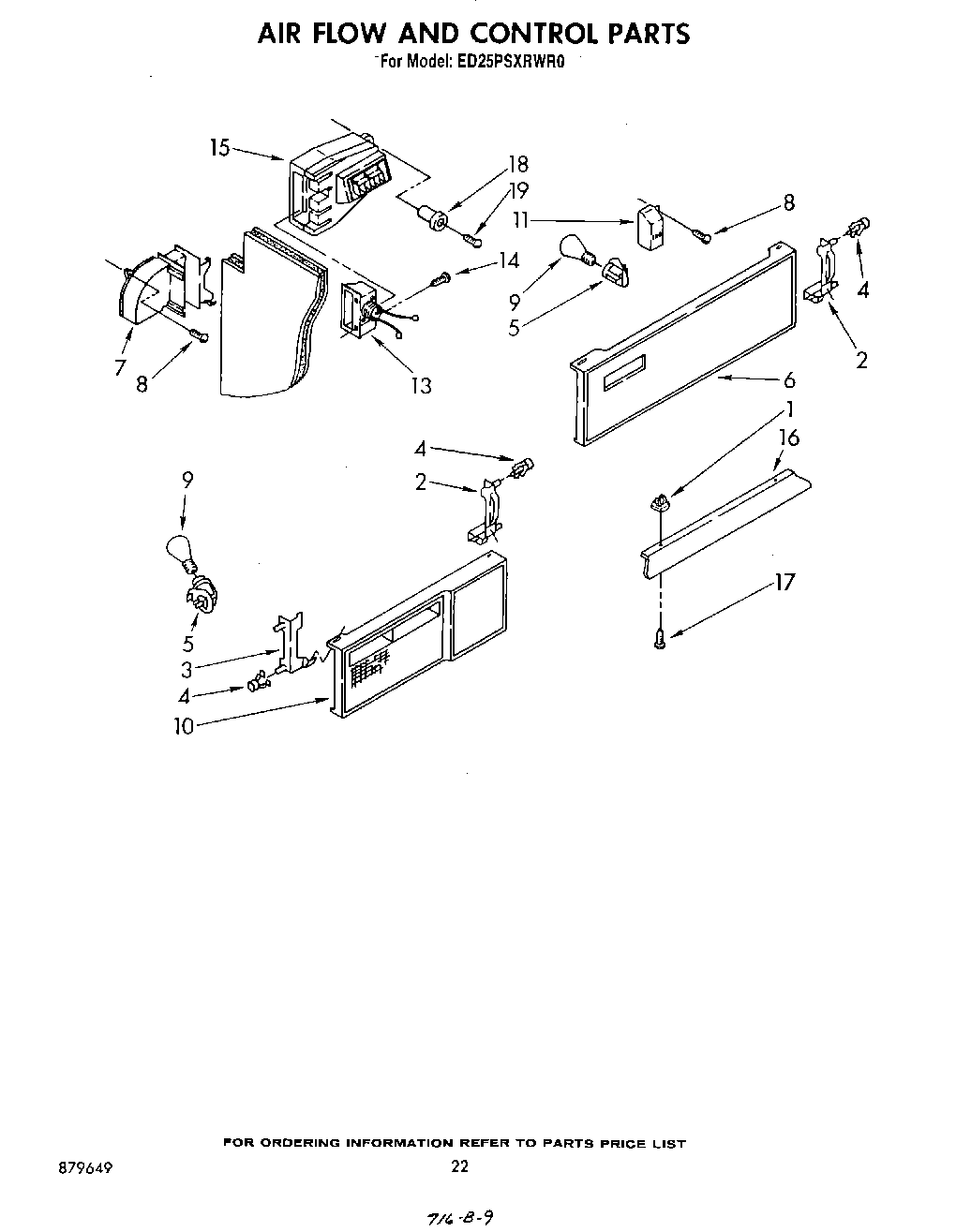

ED25PSXRWR0 12 – AIRFLOW AND CONTROL

Products

PositionProduct
1Grommet
2Support, Light Lens (R.S.)
3Support, Light Lens (L.S.)
4Clip, Tubular
54387478 Whirlpool Refrigerator Light Socket
6Light, Lens
7Air Duct
8W11624204 Whirlpool Screw
9RANGE ONLY 40W 120V APPL BULB
10Light Lens, Freezer
11Sensor Assembly
13Damper & Heater Assembly
14W11693756 Whirlpool Screw Assembly
15Air Diffuser
16Baffle, Liner Top
17WP489069 Whirlpool Compactor Screw
18836667 Whirlpool Refrigerator Spacer
19Screw, 8 x 1-1/4 (3)
