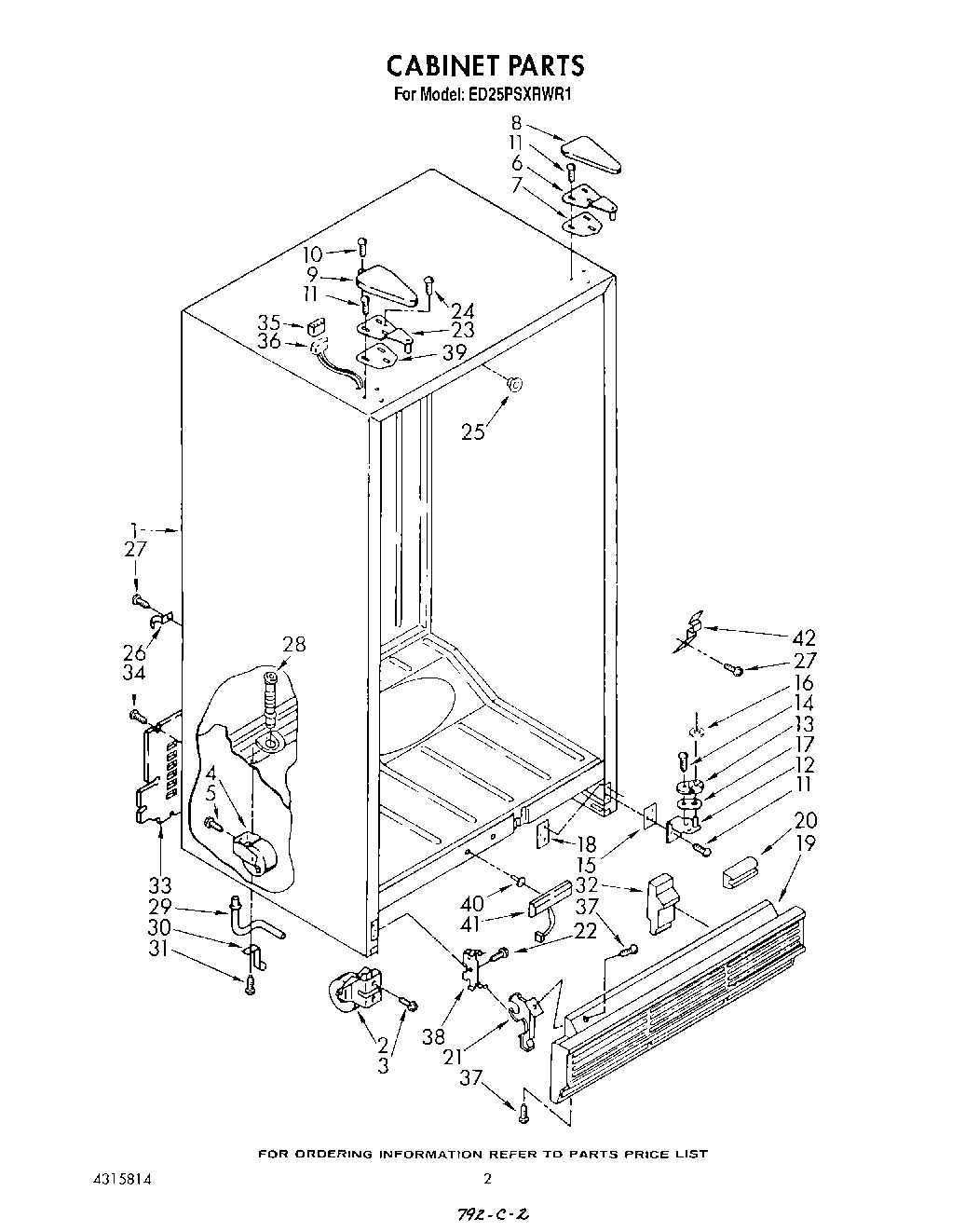

ED25PSXRWR1 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Hinge, Top
7	Shim, Hinge Top
8	Hinge Cover (Golden Harvest)
8	1119787 Whirlpool Refrigerator Hinge Cover
8	Hinge Cover (Toast)
9	Hinge Cover (Platinum)
9	Hinge Cover (White)
9	Hinge Cover (Golden Harvest)
9	Hinge Cover (Toast)
9	Hinge Cover (Almond)
10	Screw, 6-32 x 1/2
11	WP999367 Whirlpool Refrigerator Screw
11	Screw (Repair)
12	Hinge, Bottom R.H.
12	Hinge, Bottom (L.H.)
13	WPW10329686 Whirlpool Door Cam Black
14	WP486579 Whirlpool Air Conditioner Screw
14	Screw (Repair)
15	Shim, Bottom Hinge
16	WP487802 Whirlpool Refrigerator Washer
17	Shim, Door Closer
18	Tap Plate
19	Exterior Grille
20	Bumper, Grille
21	WP944224 Whirlpool Refrigerator Support
23	Hinge, Top Freezer
24	WP488234 Whirlpool Air Conditioner Screw
25	Grommet
26	Clamp, Water Line (2)
27	W11624204 Whirlpool Screw
28	Drain Fitting, Liner
29	Extension, Drain Fitting
30	Cup, Drain Extension
31	Screw, 8-15 x 3/8
32	WPL 836372
33	Cover, Unit Compartment
35	WPL 851648
36	WPL 482553
37	Screw, 8-22 x 5/16 (4)
38	WPL 989068
39	Shim
40	Stud Anchor
41	Door Sensor Ass
41	Door Sensor Assembly (Toast)
41	Door Sensor Assembly (Almond)
41	Door Sensor Assembly (White)
41	WPL 1115233
42	WPL 944973
