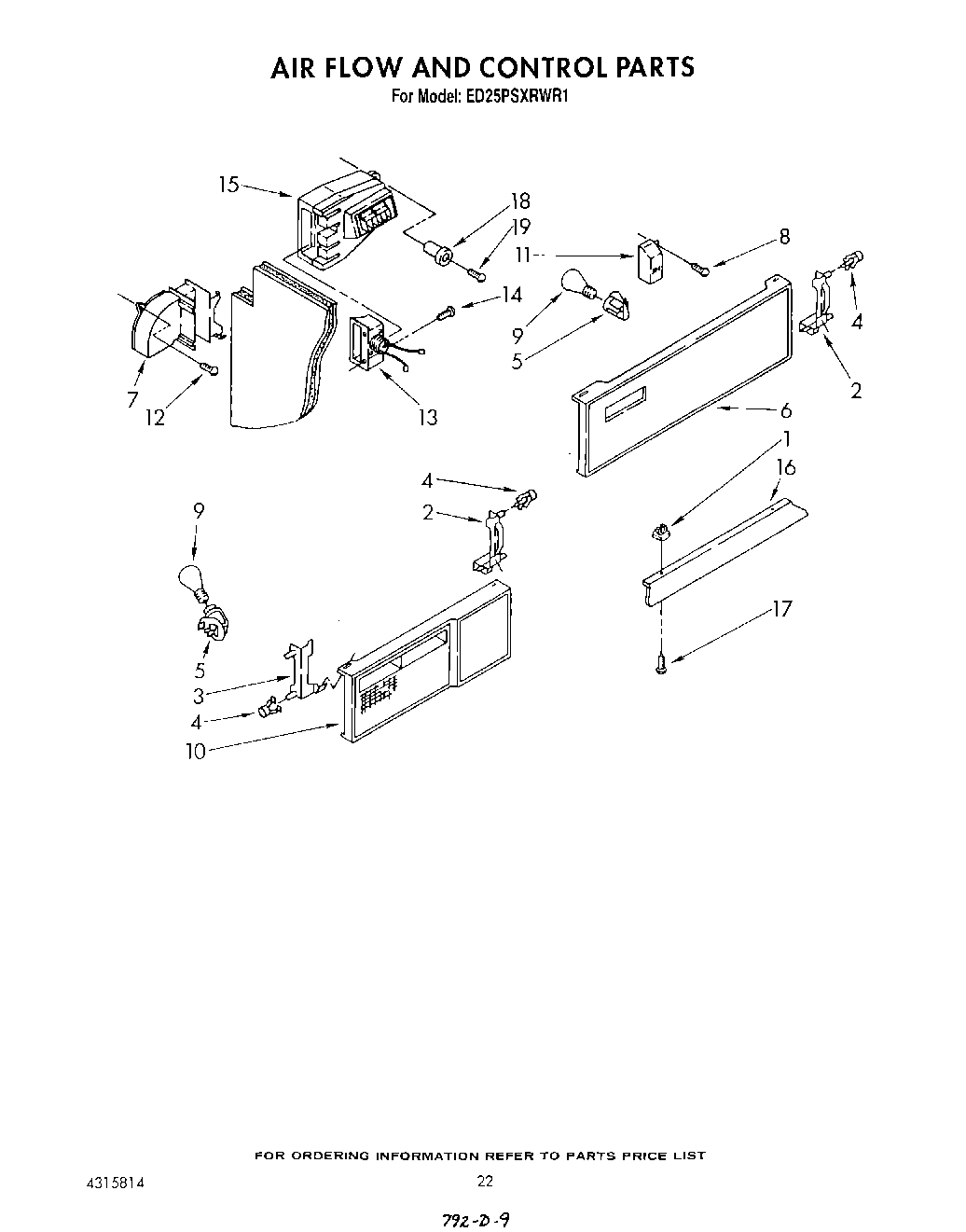

ED25PSXRWR1 12 – AIR FLOW AND CONTROLadmin2025-04-26T09:50:02+00:00ED25PSXRWR1 12 – AIR FLOW AND CONTROL ProductsPositionProduct1Grommet2Support, Light Lens (R.S.)3Support, Light Lens (L.S.)4Clip, Tubular54387478 Whirlpool Refrigerator Light Socket6Light, Lens7Air Duct8W11624204 Whirlpool Screw9RANGE ONLY 40W 120V APPL BULB10Light Lens, Freezer11Sensor Assembly12WP488163 Whirlpool Refrigerator Screw13Damper & Heater Assembly14W11693756 Whirlpool Screw Assembly15Air Diffuser16Baffle, Liner Top17WP489069 Whirlpool Compactor Screw18836667 Whirlpool Refrigerator Spacer19Screw, 8 x 1-1/4 (3)
