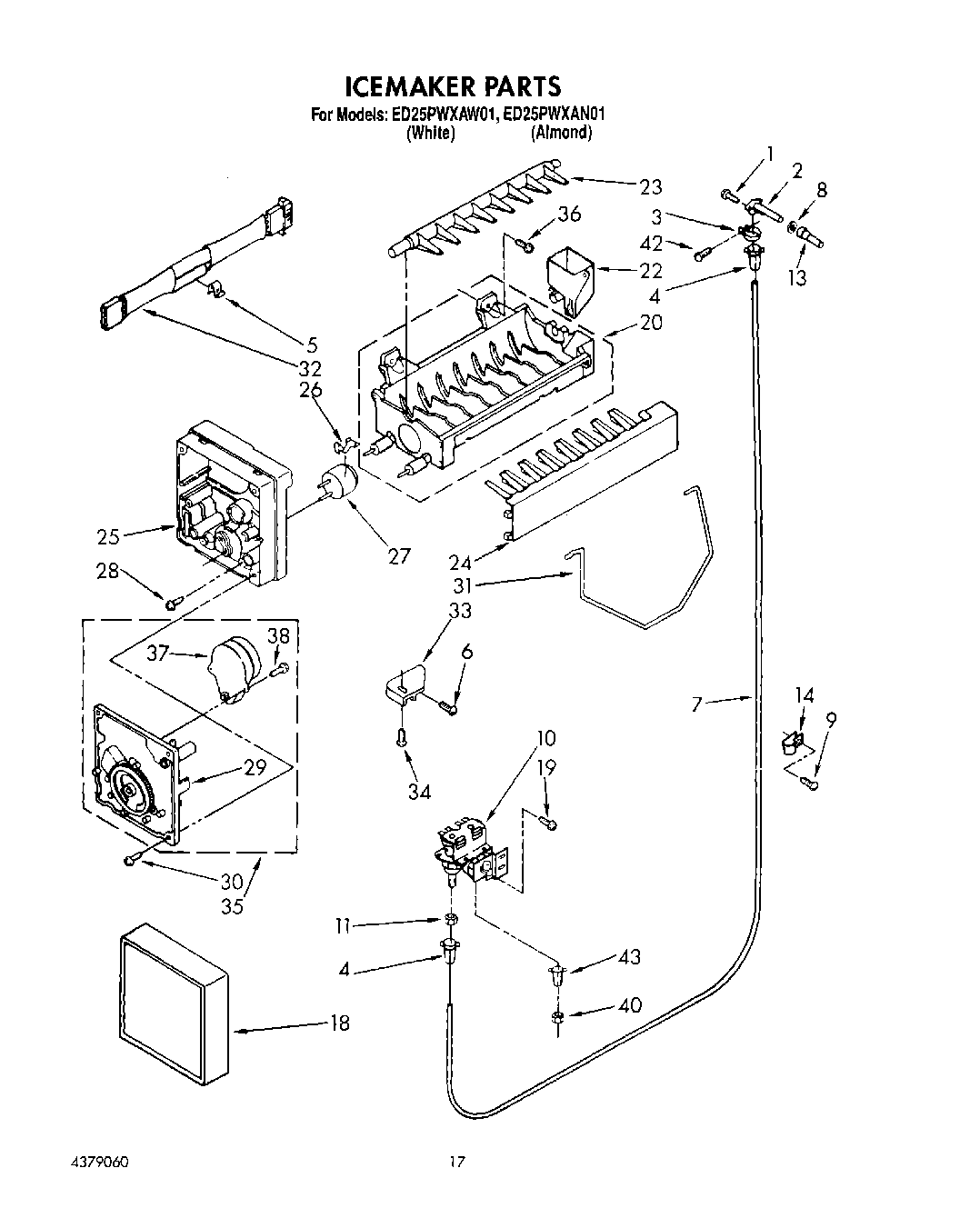

ED25PWXAN01 12 – ICEMAKER, LIT/OPTIONALadmin2025-04-26T09:50:28+00:00ED25PWXAN01 12 – ICEMAKER, LIT/OPTIONAL ProductsPositionProductWPL LIT4379060WPL LIT2162456WPL LIT2160159WPL LIT2162818Modular Icemaker Service Sheet2WP2196157 Whirlpool Fill Tube3WP488878 Whirlpool Refrigerator Tube Clamp44387491 Whirlpool Refrigerator Insert5WP628379 Whirlpool Refrigerator Clip6Screw, 8-15 x 1/2 (4)7W10823511 Whirlpool Refrigerator Water Tube8WP1106508 Whirlpool Refrigerator Gasket9WP489478 Whirlpool Refrigerator Screw10W10853654 Whirlpool Water Inlet Valve11WP627018 Whirlpool Refrigerator Nut13Tube, Water Inlet14WP488366 Whirlpool Refrigerator Clamp18Cover19WPW10141625 Whirlpool Refrigerator Screw Assembly20WPW10190929 Whirlpool Refrigerator Ice Maker Mold22WP628356 Whirlpool Refrigerator Fill Cup23WP627843 Whirlpool Refrigerator Ejector Arm24WP2182124 Whirlpool Refrigerator Stripper Arm25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat27Cement Alumilastic)288533917 Whirlpool Refrigerator Screw30WP681249 Whirlpool Screw Assembly31W11342242 Whirlpool Refrigerator Ice Level Arm32WP2187464 Whirlpool Refrigerator Wire Harness33W11500948 Whirlpool Refrigerator Bracket34Screw, 8-32 x 27/6436WP488163 Whirlpool Refrigerator Screw37W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly38489136 Whirlpool Refrigerator Screw40Nut, Compression42WP488787 Whirlpool Refrigerator Screw43Insert, Tube100Transformer (115-230 Volt)100350956 Whirlpool Spray Assembly10072017 Whirlpool Appliance Touch-Up Paint White100799344 Whirlpool Refrigerator Paint100WP72107 Whirlpool Touchup100Almond (Uncut)100Leveler (Thinner)10072032 Whirlpool Touch Up Paint Black100285006 Whirlpool Spray100212643 Whirlpool Refrigerator Permagum Sealer100350930 Whirlpool White Spray Paint100350942 Whirlpool Spray Paint100511873 Whirlpool Refrigerator Paint100606755 Whirlpool Refrigerator Bag100833938 Whirlpool Refrigerator Terminal100876370 Whirlpool Refrigerator Insulation100WP503695 Whirlpool Refrigerator Sealer100WP505587 Whirlpool Refrigerator Sealer100TAPE, VINYL (3/4 X 108``)100CEMENT, ALUMILASTIC (1 1/4 OZ.)100Enamel, Black (1 Qt. Uncut)100WPL 799833100WPL 876029100WP542638 Whirlpool Refrigerator Grease1004317943 Whirlpool Refrigerator Ice Maker Assembly
