ED25PWXAW01 03 – REFRIGERATOR SHELF

ED25PWXAW01 03 – REFRIGERATOR SHELF

Written by

in

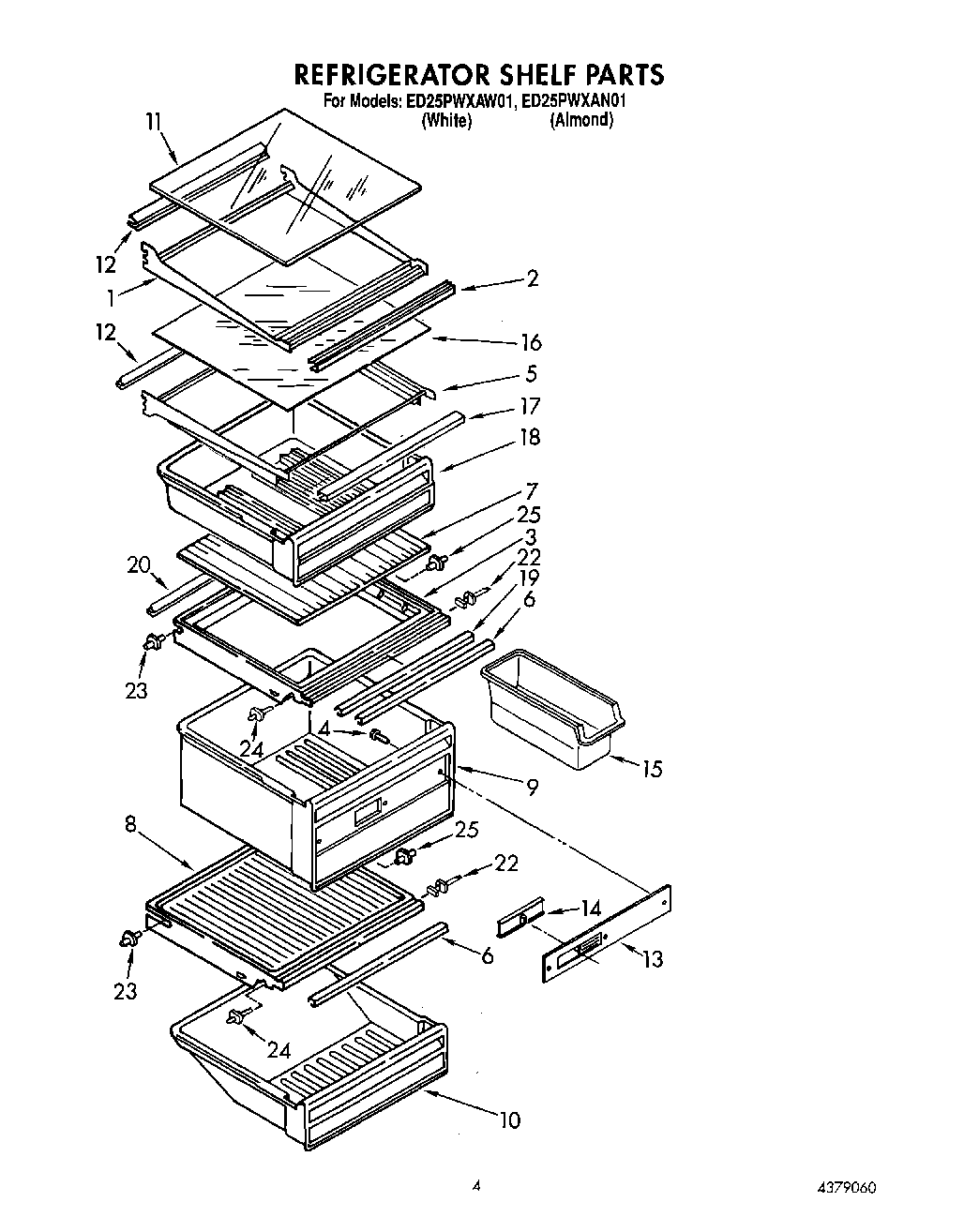

ED25PWXAW01 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Cantilever (2)
2Trim, Shelf
3WP1126289 Whirlpool Refrigerator Cover
4Screw (3)
5Pan Shelf & Slide Assembly
6Trim, Crisper Cover
7Glass, Crisper Cover
8WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan
9Pan, Crisper
10Pan, Meat
11Glass, Shelf
12Reflector, Shelf
13Front, Crisper Pan
14Slide
15WP982704 Whirlpool Refrigerator Container
16Glass, Shelf
17Trim, Shelf
18Snack Bin
19Gasket, Crisper (Front)
20Gasket, Crisper (Rear)
23Stud (2)
24WP2149540 Whirlpool Shelf Support
254388538 Whirlpool Refrigerator Stud Shelf Kit (White)
