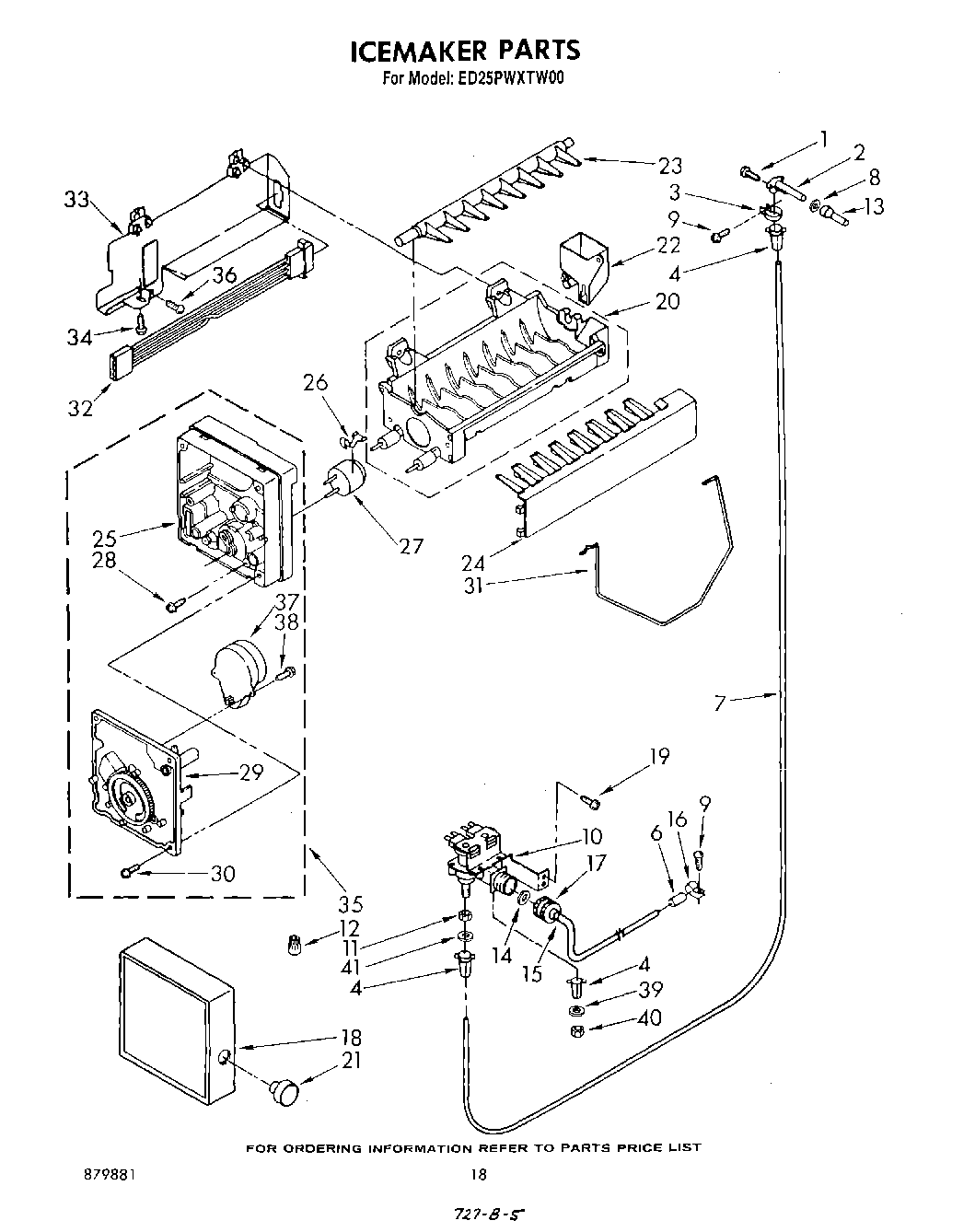

ED25PWXTM00 13 – ICEMAKER , LITERATURE AND OPTIONAL

ED25PWXTM00 13 – ICEMAKER , LITERATURE AND OPTIONAL

Written by

in

ED25PWXTM00 13 – ICEMAKER , LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Golden Harvest
285006 Whirlpool Spray
Toast
WPL LIT879881
WPL LIT628107
Paint, Spray (13 Oz.) (Platinum)
350942 Whirlpool Spray Paint
350956 Whirlpool Spray Assembly
WPL LIT1120561
Leveler (Thinner)
WPL LIT1118427
WPL LIT1115391
2WP2196157 Whirlpool Fill Tube
3WP488878 Whirlpool Refrigerator Tube Clamp
44387491 Whirlpool Refrigerator Insert
6WP2158826 Whirlpool Refrigerator Dampener
7W10823511 Whirlpool Refrigerator Water Tube
8WP1106508 Whirlpool Refrigerator Gasket
9WP489069 Whirlpool Compactor Screw
104318046 Whirlpool Dual Water Inlet Valve
11WP627018 Whirlpool Refrigerator Nut
12Wire Connector
13Tube, Water Inlet
14WP16123 Whirlpool Washer
15Tube, Inlet Valve
16Clamp Tube
17Nut, Valve
18Cover
19WPW10141625 Whirlpool Refrigerator Screw Assembly
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21Knob
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24WP2182124 Whirlpool Refrigerator Stripper Arm
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
28WPL 489163
30WP681249 Whirlpool Screw Assembly
31W11342242 Whirlpool Refrigerator Ice Level Arm
32WP2187464 Whirlpool Refrigerator Wire Harness
33Shield, Heat
34WP489128 Whirlpool Refrigerator Screw
35W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
36Screw, 8-15 x 1/2 (4)
38489136 Whirlpool Refrigerator Screw
39“O“ Ring Seal
40Nut, Compression
41833938 Whirlpool Refrigerator Terminal
41511873 Whirlpool Refrigerator Paint
41Golden Harvest (Uncut)
41212643 Whirlpool Refrigerator Permagum Sealer
41Enamal, Toast (1 Qt. Uncut)
41Platinum (Uncut)
41606755 Whirlpool Refrigerator Bag
41Almond (Uncut)
41WP72107 Whirlpool Touchup
41799344 Whirlpool Refrigerator Paint
41WPL 72112
4172017 Whirlpool Appliance Touch-Up Paint White
41WPL 876029
41Transformer (115-230 Volt)
41WPL 799833
41WP505587 Whirlpool Refrigerator Sealer
4172113 Whirlpool Touch-Up Paint
41WPL 799832
41Enamel, Black (1 Qt. Uncut)
4172110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41CEMENT, ALUMILASTIC (1 1/4 OZ.)
41TAPE, VINYL (3/4 X 108“)
41WP542638 Whirlpool Refrigerator Grease
41WP503695 Whirlpool Refrigerator Sealer
41Silicone (Spray)
4172032 Whirlpool Touch Up Paint Black
41876370 Whirlpool Refrigerator Insulation
41“O“ Ring Seal (4)
