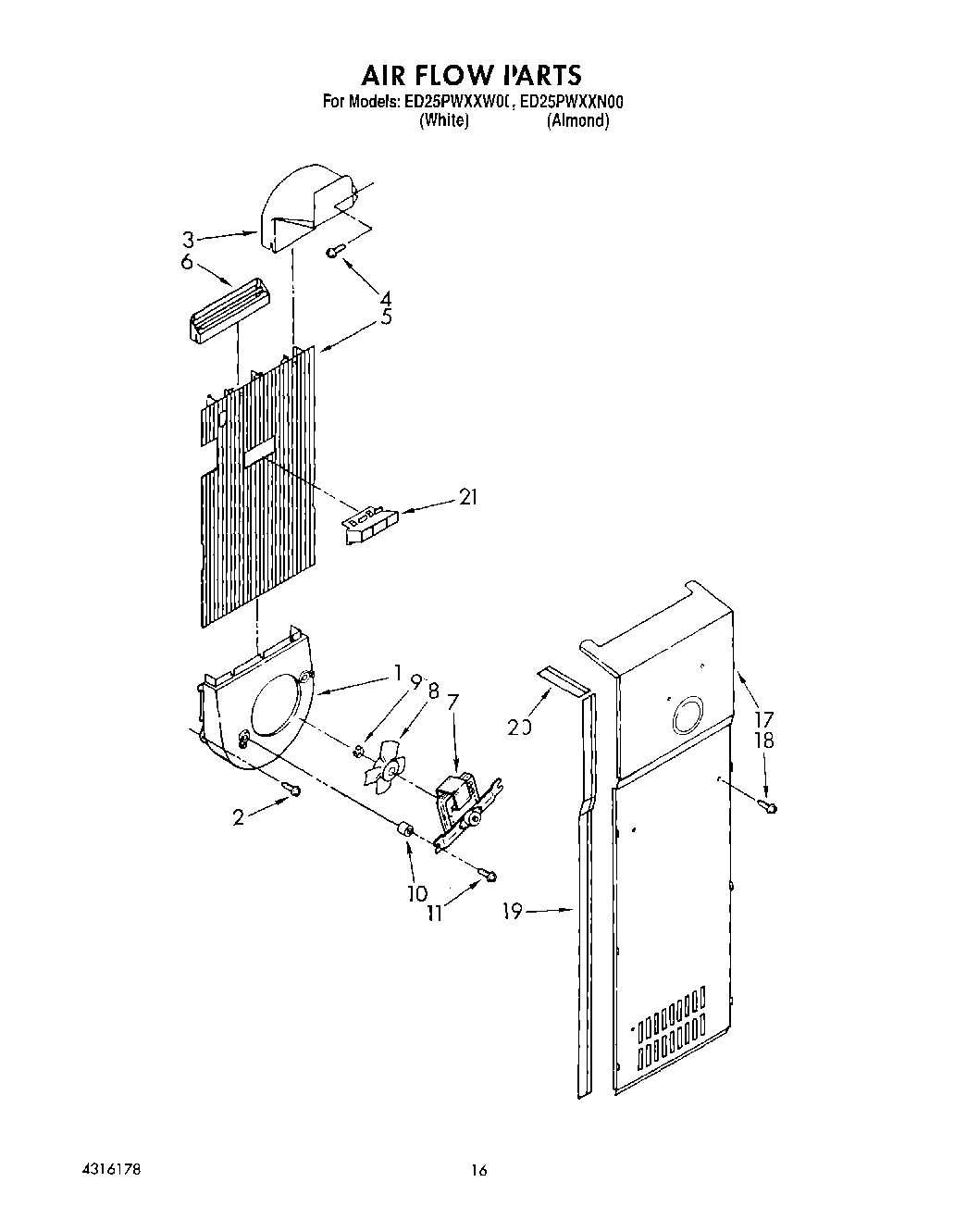

ED25PWXXW00 10 – AIR FLOW

Products

PositionProduct
1Fan Scroll
2WP489478 Whirlpool Refrigerator Screw
3Air Scoop
4WP488729 Whirlpool Refrigerator Door Screw
5Air Duct Freezer
6Diffuser Air Duct
7Fan Motor
8Blade, Fan
9Ring, Compression
10Fan Grommet (2)
11Screw (2)
17Cover, Evaporator
18SCREW
19Gasket, Evaporator Cover (2)
20Gasket, Evaporator Cover Top (2)
212182146 Whirlpool Refrigerator Duct
