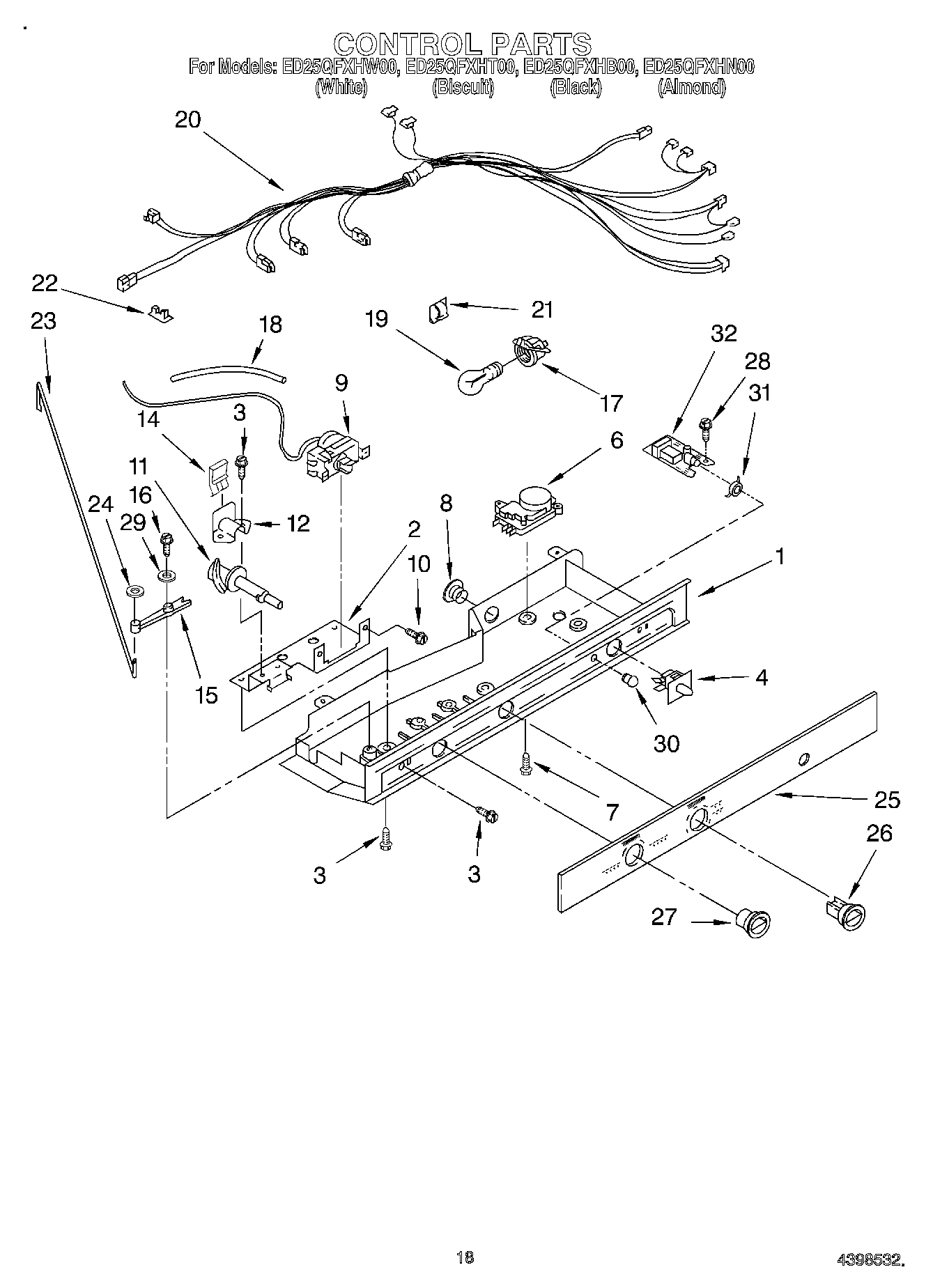

| 1 | Control Box |
| 2 | Mounting Bracket |
| 3 | WP3196557 Whirlpool Screw |
| 4 | WP2149705 Whirlpool Refrigerator Door Switch |
| 6 | Defrost Timer (10 Hr.) |
| 7 | 489392 Whirlpool Refrigerator Screw |
| 8 | 940014 Whirlpool Refrigerator Primary Button Plug |
| 9 | WP2198202 Whirlpool Refrigerator Temperature Thermostat |
| 10 | WP965173 Whirlpool Dishwasher Screw |
| 11 | WP2182195 Whirlpool Refrigerator Cam |
| 12 | 1110560 Whirlpool Refrigerator Bearing |
| 14 | WP2196062 Whirlpool Refrigerator Clip |
| 15 | Pivot Arm |
| 16 | 627068 Whirlpool Refrigerator Screw |
| 17 | 4387478 Whirlpool Refrigerator Light Socket |
| 18 | WP2196003 Whirlpool Refrigerator Bar Riser |
| 19 | RANGE ONLY 40W 120V APPL BULB |
| 20 | Control Box Harness |
| 21 | WP1115374 Whirlpool Refrigerator Clip |
| 22 | CLIP, WIRING |
| 23 | Connecting Rod |
| 24 | Fastener, Push-On |
| 25 | Escutcheon, Control Box |
| 26 | 2182111 Whirlpool Refrigerator Thermal Knob |
| 27 | Knob, Air Control |
| 28 | 2006254 Whirlpool Refrigerator Screw |
| 29 | 489203 Whirlpool Refrigerator Washer |
| 30 | COVER, LIGHT LENS |
| 31 | Retainer, Light Lens |
| 32 | P.C. Board Filter Indicator |
