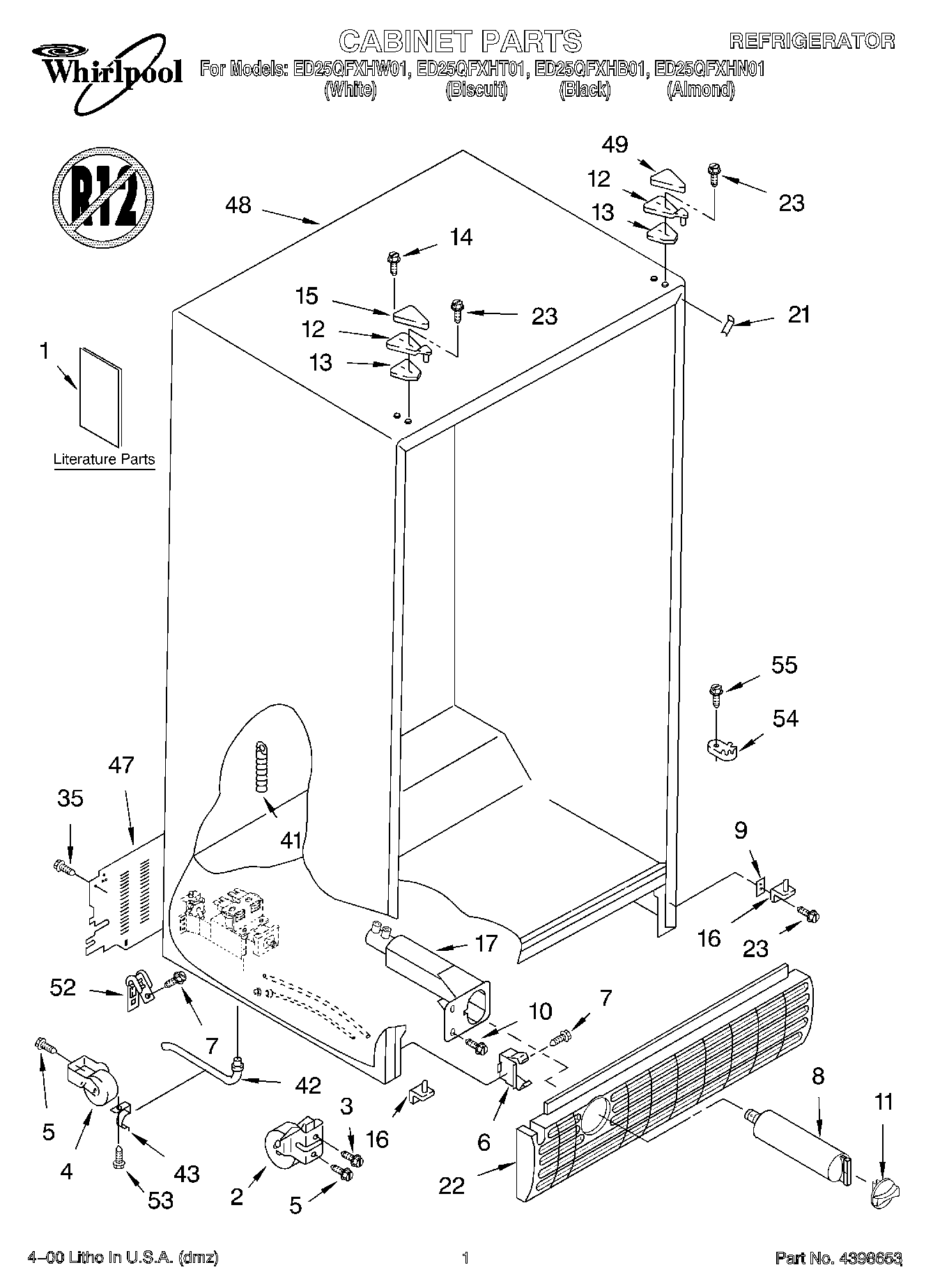

ED25QFXHT01 01 – CABINET, LITERATURE

Products

Position	Product
1	LITERATURE PARTS (Service & Wiring Sheet)
1	Modular Icemaker Service Sheet
1	LITERATURE PARTS (Use & Care Guide)
1	Energy Label
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
9	WP2181911 Whirlpool Refrigerator Shim
10	WP489500 Whirlpool Refrigerator Screw
11	Cap, Water Filter (Almond)
11	WP2186494B Whirlpool Refrigerator Filter Cap
11	WP2186494W Whirlpool Water Filter Cap
11	WP2186494T Whirlpool Water Filter Cap
12	WP2196046 Whirlpool Refrigerator Door Hinge
13	Shim, Hinge Top
14	Screw
15	WP1129262 Whirlpool Refrigerator Cover
16	8201707 Whirlpool Door Hinge
17	WP2186443 Whirlpool Water Filter Housing
21	Filler, Wrapper (Biscuit)
21	Filler, Wrapper (Black)
21	Filler, Wrapper (Almond)
21	Filler, Wrapper (White)
22	W10803964 Whirlpool Grille Assembly
22	Grille (Almond)
22	Grille (Biscuit)
23	WP489497 Whirlpool Screw
35	WP489464 Whirlpool Refrigerator Screw
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
47	WP2188755 Whirlpool Rear Panel
48	Cabinet (Not A Serviceable Part)
49	1119787 Whirlpool Refrigerator Hinge Cover
49	Hinge Cover (Black)
52	549193 Whirlpool Refrigerator Power Clamp
54	WPW10329686 Whirlpool Door Cam Black
55	WP489483 Whirlpool Screw
