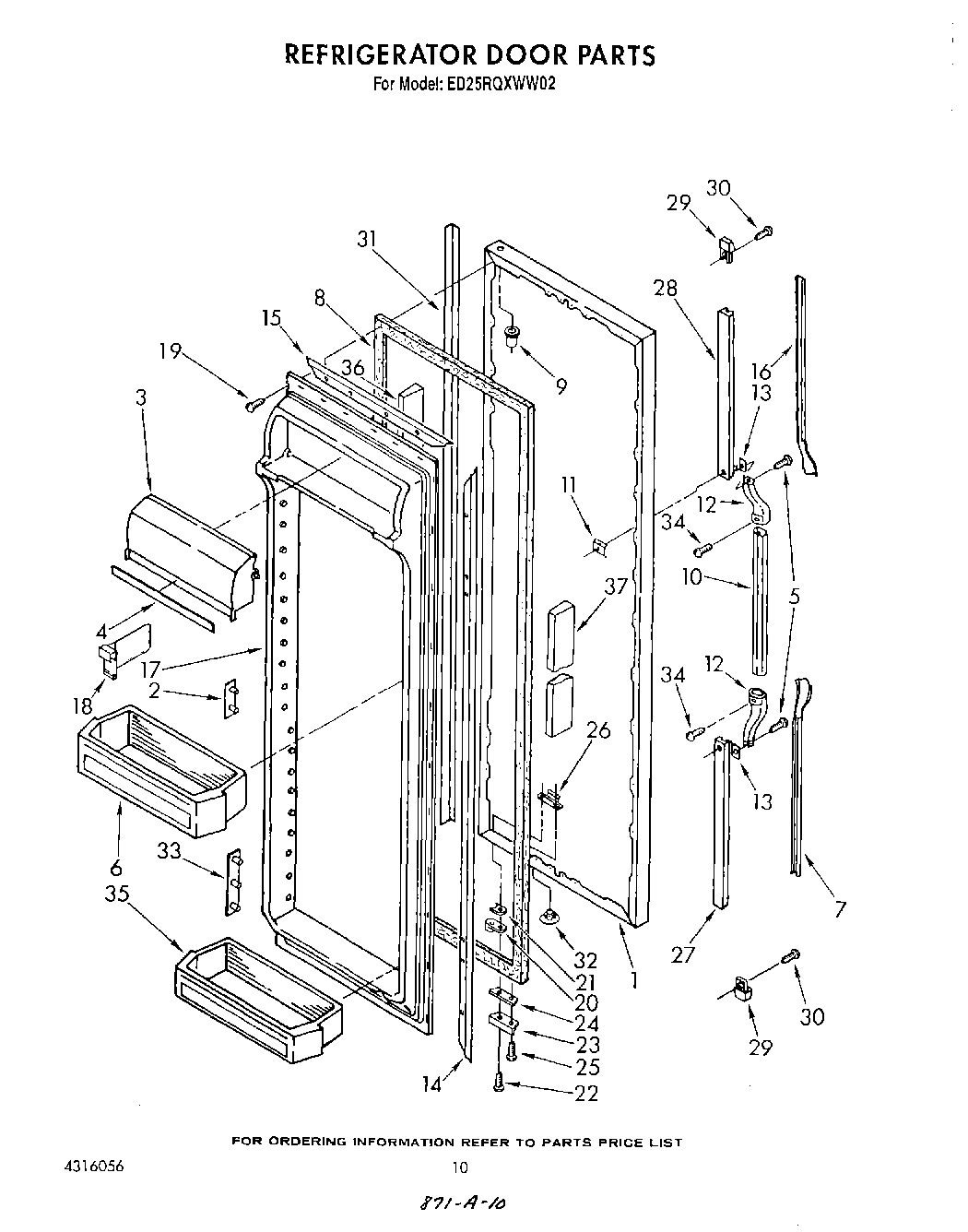

ED25RQXWW02 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (White)
2	Pin Plate (6)
3	Door, Compartment
4	Trim, Compartment Door
6	Shelf Bin (2)
7	Insert, Handle (White)
8	Door Gasket, Magnetic
9	Cap, Hinge Sleeve (2)
10	Handle, Center (White)
11	Screw Anchor (2)
12	End Cap, Center Handle
13	Shim
14	Gasket Retainer, Side (2)
15	Gasket Retainer, Top & Bottom
16	Insert, Handle (White)
17	Panel, Interior Door
18	Divider (4)
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
21	WP1104787 Whirlpool Refrigerator Shim
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop
24	Shim
25	Screw, 89 x 5/8
26	Tap Plate
27	Retainer, Insert (Bottom)
28	Retainer, Insert
29	End Cap
30	Screw
31	Trim, Door
32	Hole Plug (2)
33	Pin Plate (8)
34	Screw
35	Shelf Bin (2)
36	Door Dike, Hinge Side
37	Door Dike, Handle Side
