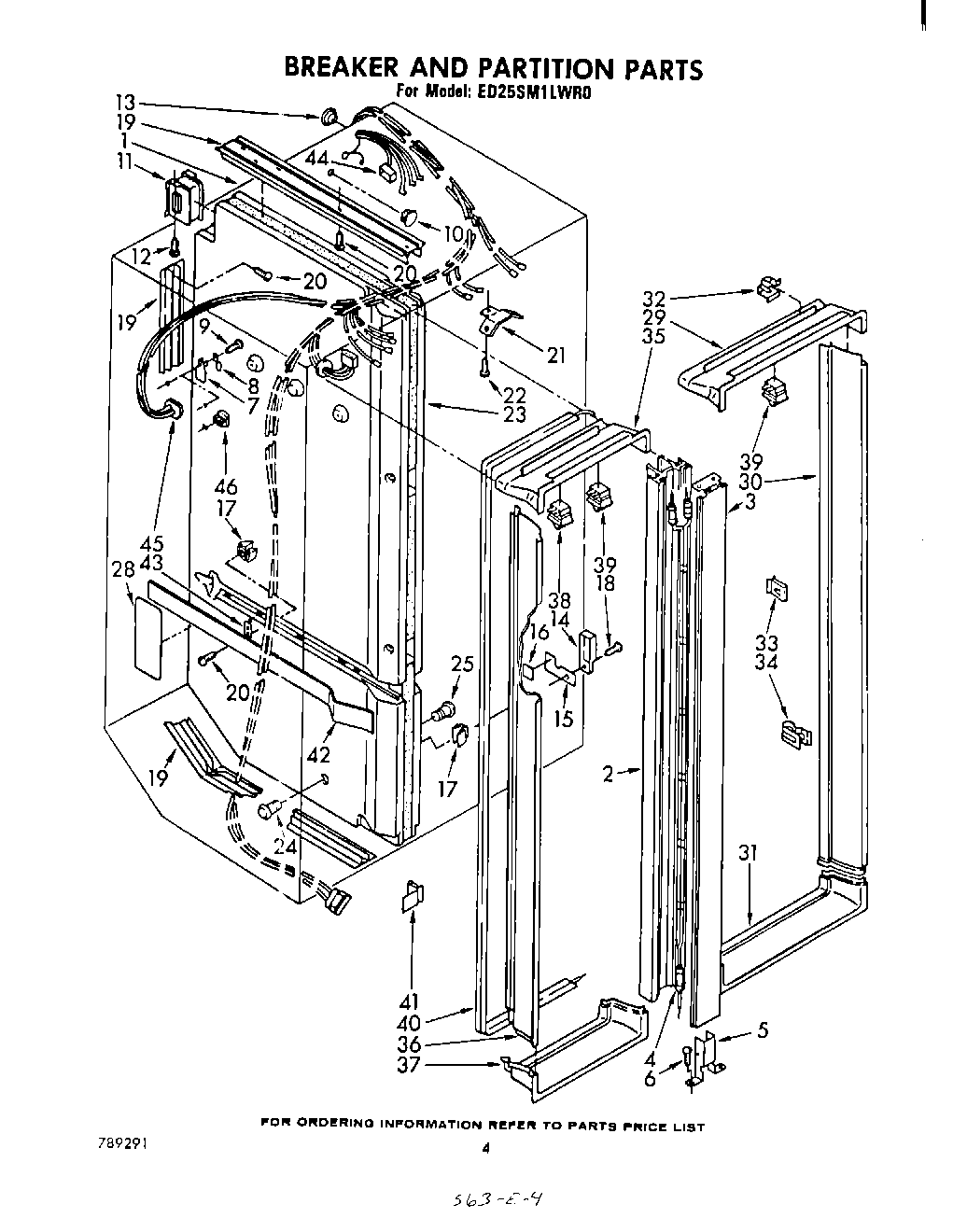

ED25SM1LWR0 03 – BREAKER AND PARTITION

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Break Mullion, Frame
3	Mullion, Front (White)
3	Mullion, Front (Platinum)
3	Mullion, Front (Toast)
3	Mullion, Front (Golden Harvest)
3	Mullion, Front (Almond)
3	Mullion, Front (Coffee)
4	Heater, Mullion
5	Mullion, Bracket
6	WP488729 Whirlpool Refrigerator Door Screw
6	WP308685 Whirlpool Microwave Screw
7	Screw Grommet
8	Support Clip
9	SCREW
10	Hole, Plug
11	Control Connector & Gasket Assembly
12	WP488163 Whirlpool Refrigerator Screw
13	Grommet, Wiring
14	Escutcheon Meat
15	Slide, Meat Pan Control
16	Pad, Foam
17	Expansion Clip
18	Screw, 8-15 x 1/2 (4)
19	Track, Divider (Back & Bottom)
19	Track, Divider (Top)
20	W11624204 Whirlpool Screw
21	Retainer Bracket, Divider
23	Divider, Mullion
24	Retainer, Hole Insert
25	Insert, Hole
28	Shield, Divider
29	Breaker, Trim Top Refrigerator
30	Breaker Trim, (R.S.) Refrigerator
31	Breaker Trim, Bottom Refrigerator
32	Breaker, Clip
33	Breaker Trim, Clip
34	Breaker Trim, Bottom Clip
35	Breaker Trim, Top Freezer
36	Breaker Trim, Freezer (L.S.)
37	Breaker Trim, Freezer (Bottom)
38	WP4387911 Whirlpool Refrigerator Switch
39	W11384469 Whirlpool Door Switch
40	Heater, Stile
41	Stile Clip, Retainer
42	Cover, Heat Exchanger
43	Heat Exchanger, Clip
44	Liner Wiring (Defrost Timer)
45	Wiring, Ice Maker
46	Grommet
