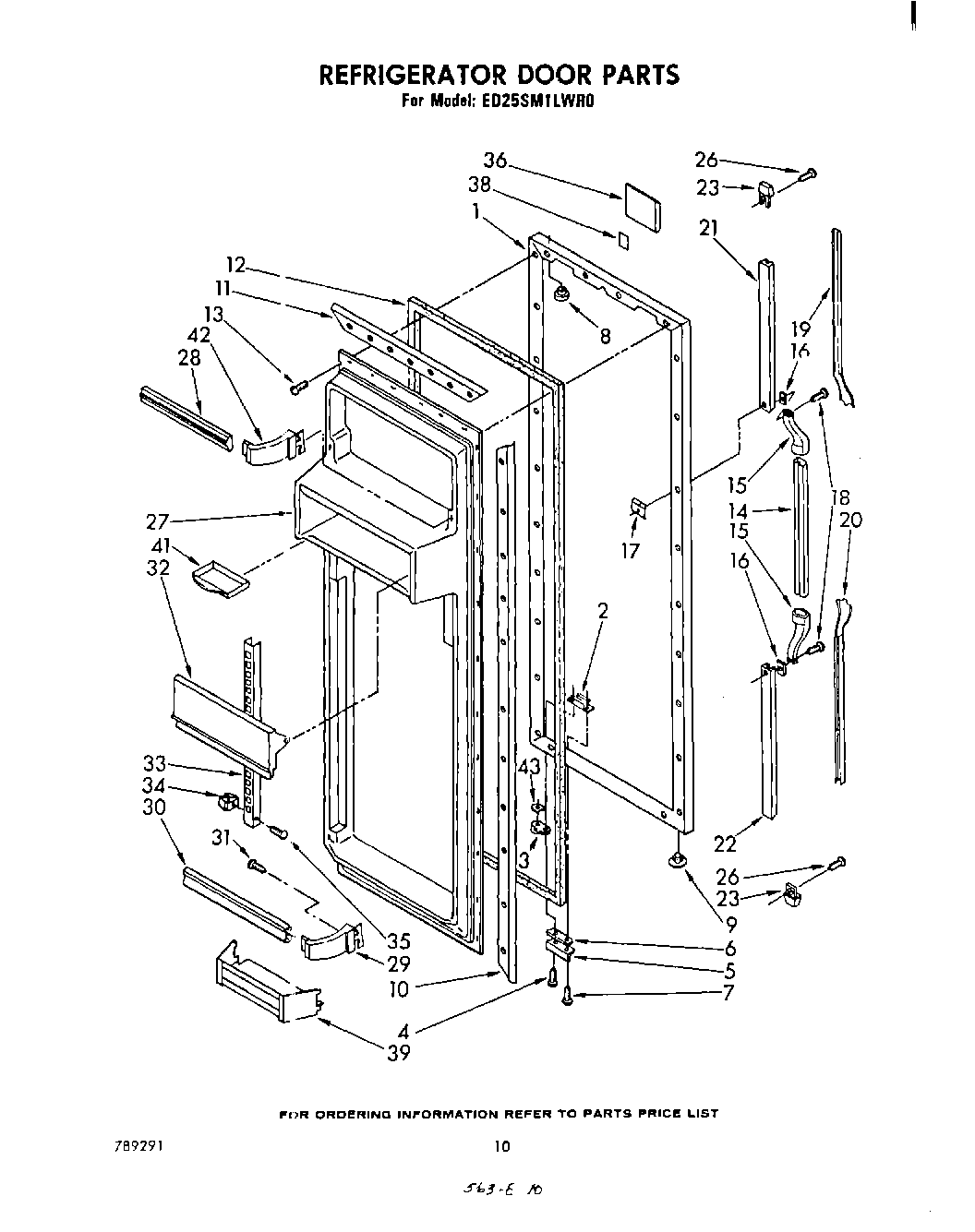

ED25SM1LWR0 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Platinum)
1	Refrigerator Door Panel (Coffee)
1	Refrigerator, Door Panel (Toast)
1	Refrigerator, Door Panel (Golden Harvest)
1	Refrigerator, Door Panel (Almond)
1	Refrigerator, Door Panel (White)
2	Tap Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489069 Whirlpool Compactor Screw
5	Bracket, Door Stop
6	Shim
7	Screw, 89 x 5/8
8	Cap, Hinge Sleeve (2)
9	Hole Plug (2)
10	Retainer, Gasket Side
11	Retainer, Top & Bottom
12	Door Gasket, Magnetic
12	Door Gasket, Magnetic (For Platinum Model Only)
13	SCREW
14	Handle, Center (Platinum)
14	Handle, Center (Toast)
14	Handle, Center (Golden Harvest)
14	Handle, Center (White & Coffee)
14	Handle, Center (Almond)
15	Center End Cap, Handle
16	Shim
17	Screw Anchor (2)
19	Insert, Handle
20	Insert, Handle
21	Retainer Insert (Top)
22	Retainer Insert (Bottom)
23	End Cap
26	Screw
27	Interior Door Panel (For Platinum Model Only)
27	Interior Door Panel
28	Trim, Door Shelf
29	Retainer, Door Trim
29	Retainer, Door Trim (For Platinum Model Only)
30	Trim, Door Shelf
31	WP488787 Whirlpool Refrigerator Screw
32	Compartment Door
33	Shelf Ladder
34	Expansion Clip
35	WP488729 Whirlpool Refrigerator Door Screw
36	Escut
38	Tape Strip
39	WPL 945131
39	WPL 985528
42	WP849996 Whirlpool Refrigerator Endcap Trim
43	WP1104787 Whirlpool Refrigerator Shim
