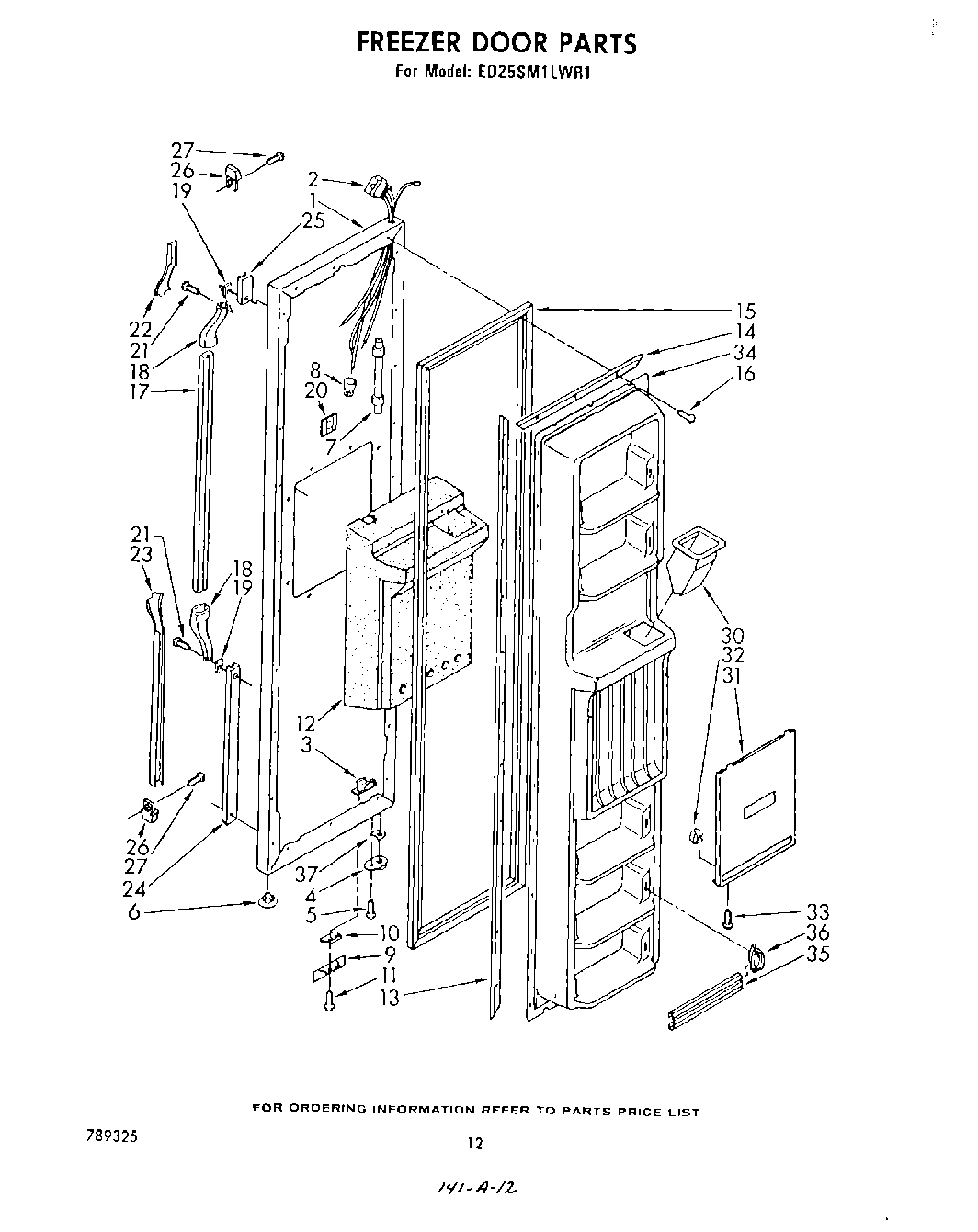

ED25SM1LWR1 07 – FREEZER DOOR

Products

Position	Product
1	Exterior Door Panel Freezer (White)
1	Exterior Door Panel Freezer (Platinum)
1	Exterior Door Panel Freezer (Coffee)
1	Exterior Door Panel Freezer (Toast)
1	Exterior Door Panel Freezer (Golden Harvest)
1	Exterior Door Panel Freezer (Almond)
2	Plug, Crossover
3	Tap Plate
4	4318165 Whirlpool Refrigerator Door Closure Cam Kit
5	WP489069 Whirlpool Compactor Screw
6	Hole Plug (2)
7	Tube, Door Wiring
8	Wire Connector
9	Bracket, Door Stop
10	Shim
11	Screw, 89 x 5/8
12	Insulation, Dispenser
13	Retainer, Gasket Side
14	Retainer, Gasket Top & Bottom
15	Door Gasket, Magnetic (For Platinum Model Only)
15	Door Gasket, Magnetic
16	SCREW
17	Handle, Center (Toast)
17	Handle, Center (Almond)
17	Handle, Center (White & Coffee)
17	Handle, Center (Platinum)
17	Handle, Center (Golden Harvest)
18	Center End Cap, Handle
19	Shim
20	Screw Anchor (2)
22	Insert, Handle
23	Insert, Handle
24	Retainer Insert (Bottom)
25	Retainer Insert (Top)
26	End Cap
27	Screw
30	Chute, Ice
30	Chute, Ice
31	Overlay, Ice Dispenser
32	Expansion Clip
33	WP488729 Whirlpool Refrigerator Door Screw
34	Interior, Door Pane
34	Interior Door Panel (For Platinum Model Only)
35	WPL 935969
36	WP839904 Whirlpool Refrigerator Endcap Trim
37	WP1104787 Whirlpool Refrigerator Shim
