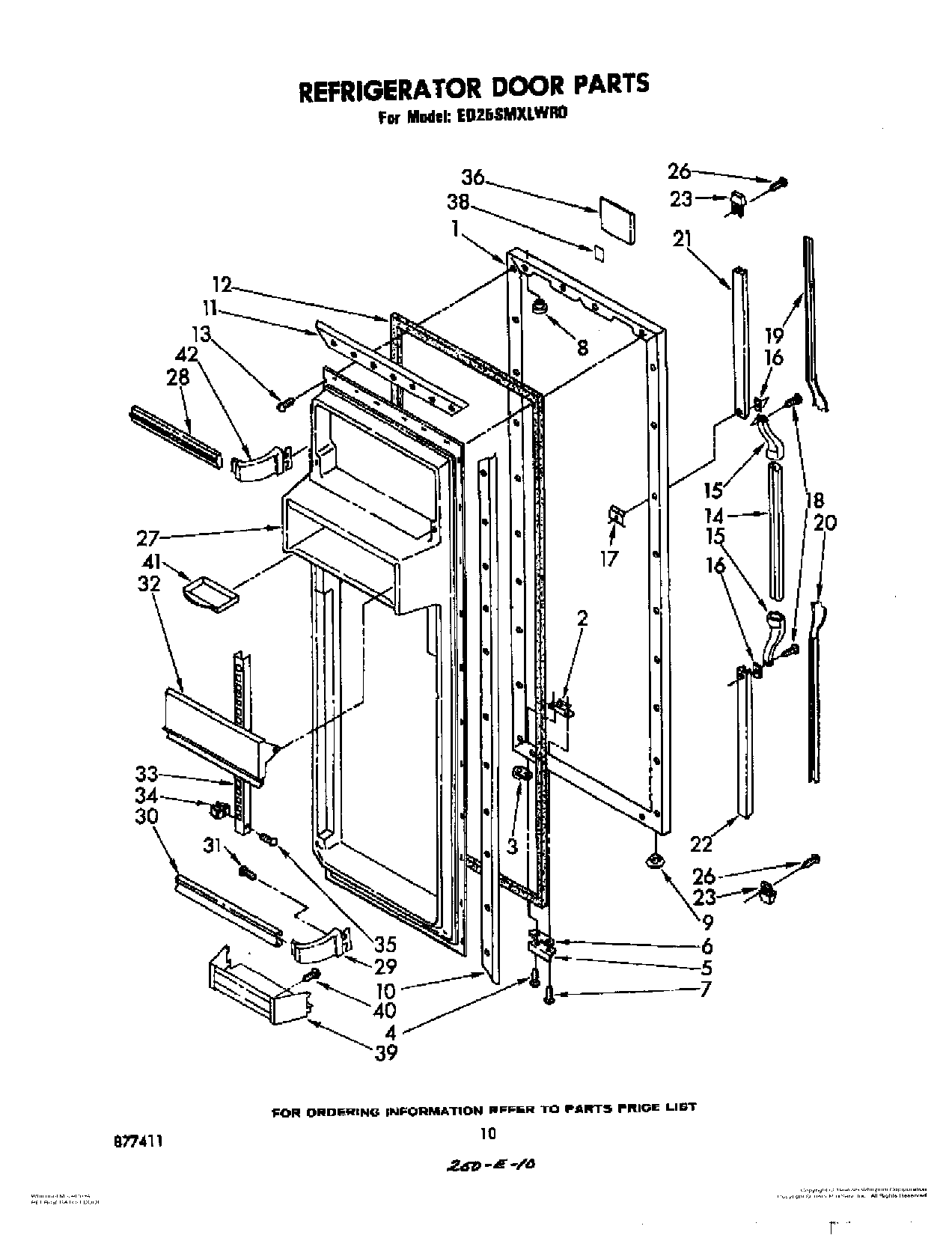

ED25SMXLWR0 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator, Door Panel (Toast)
1	Refrigerator, Door Panel (White)
1	Refrigerator Door Panel (Coffee)
1	Refrigerator, Door Panel (Golden Harvest)
1	Refrigerator Door Panel (Platinum)
1	Refrigerator Door Panel (New Avocado)
1	Refrigerator, Door Panel (Almond)
2	Tap Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489069 Whirlpool Compactor Screw
5	Bracket, Door Stop
6	Shim
7	Screw, 89 x 5/8
8	Cap, Hinge Sleeve (2)
9	Hole Plug (2)
10	Retainer, Gasket Side
11	Retainer, Top & Bottom
12	Door Gasket, Magnetic (For Platinum Model Only)
12	Door Gasket, Magnetic
13	SCREW
14	Handle, Center (Golden Harvest)
14	Handle, Center (Platinum)
14	Handle, Center (New Avocado)
14	Handle, Center (Almond)
14	Handle, Center (White & Coffee)
14	Handle, Center (Toast)
15	Center End Cap, Handle
16	Shim
17	Screw Anchor (2)
18	WP488729 Whirlpool Refrigerator Door Screw
19	Insert, Handle
20	Insert, Handle
21	Retainer Insert (Top)
22	Retainer Insert (Bottom)
23	End Cap
26	Screw
27	Interior Door Panel
27	Interior Door Panel (For Platinum Model Only)
28	Trim, Door Shelf
29	Retainer, Door Trim (For Platinum Model Only)
29	Retainer, Door Trim
30	Trim, Door Shelf
31	WP488787 Whirlpool Refrigerator Screw
32	Compartment Door
33	Shelf Ladder
34	Expansion Clip
36	Escut
38	Tape Strip
39	WPL 945131
39	WPL 985528
40	WP487353 Whirlpool Refrigerator Screw
42	WP849996 Whirlpool Refrigerator Endcap Trim
