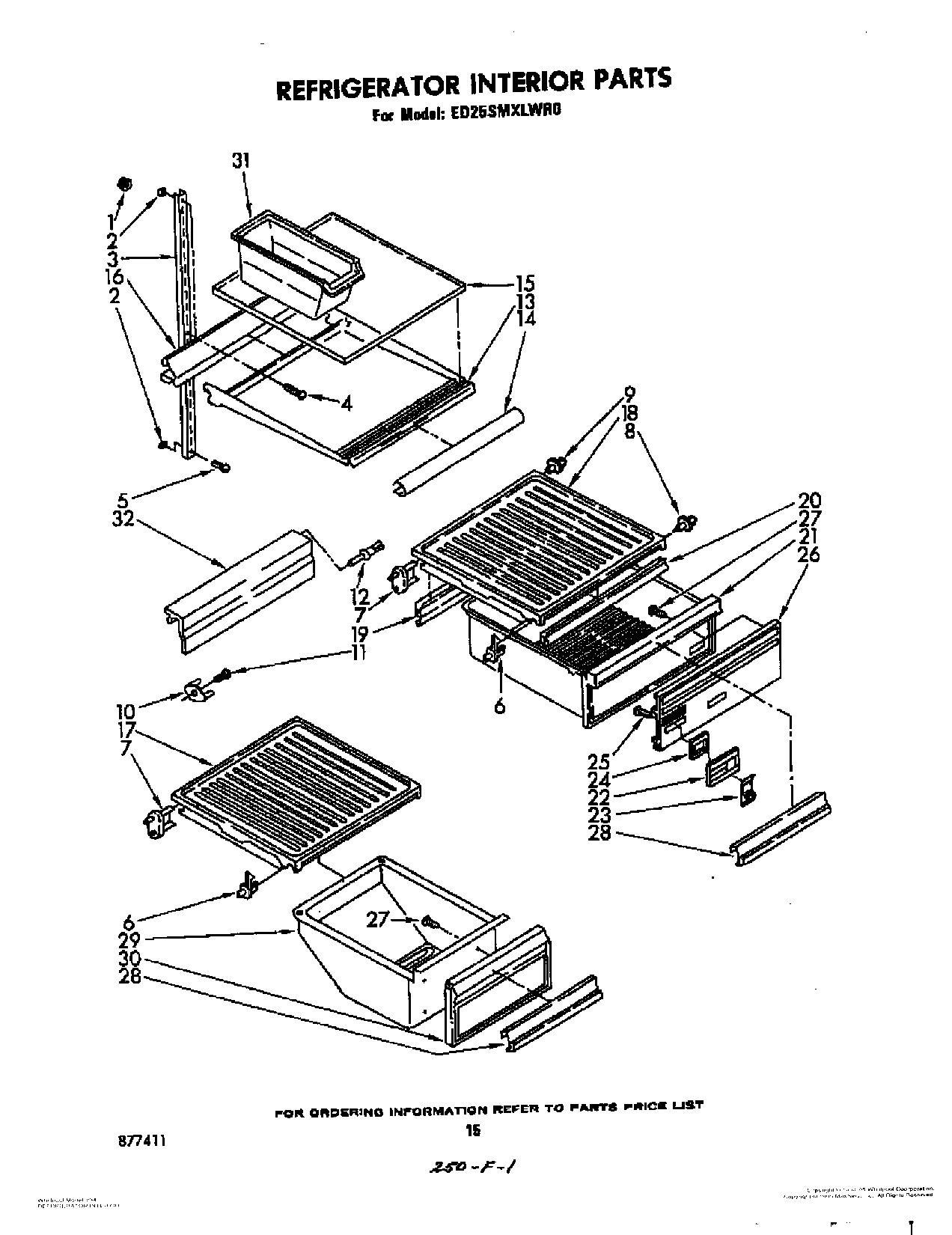

ED25SMXLWR0 09 – REFRIGERATOR INTERIOR, LIT/OPTIONAL

ED25SMXLWR0 09 – REFRIGERATOR INTERIOR, LIT/OPTIONAL

Written by

in

ED25SMXLWR0 09 – REFRIGERATOR INTERIOR, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350942 Whirlpool Spray Paint
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	Golden Harvest
	285006 Whirlpool Spray
	Leveler (Thinner)
	350956 Whirlpool Spray Assembly
	paint, spray 13 oz. (coffee)
	Paint, Spray 13 Oz. (Avocado)
1	Screw, Anchor (3)
2	520965 Whirlpool Refrigerator Support
3	Shelfladder (2)
4	Screw, 8 x 1-1/4 (3)
5	Screw (Repair)
5	Screw, 8-32 x 1-1/4
6	Shelf, Stud
7	Stud, Shelf
8	Shelf, Stud
9	Stud
10	Stud Water Reservoir
11	WP488729 Whirlpool Refrigerator Door Screw
12	Stud
13	Shelf, Cantilever
14	Shelf Trim, Cantilever
15	Glass, Cantilever Shelf
16	Reflector, Cantilever
17	Pan Slide & Cover (For Platinum Model Only)
17	Pan Slide & Cover
18	Pan Slide & Cover (Crisper)
19	Crisper Gasket Rear
20	Crisper Gasket Front
21	Pan Crisper
22	Housing, Humidity Control
23	Slide, Humidity Control
24	Seal, Humidity Control
25	Screw, 6-19 x 7/16
26	Front Cover, Crisper (For Platinum Model Only)
26	Front Cover, Crisper
27	Screw (Repair)
28	Overlay, Front Cover
29	Pan (Meat)
30	Front Cover, Meat (For Platinum Model Only)
30	Front Cover, Meat Pan
31	WP982704 Whirlpool Refrigerator Container
32	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
32	WPL 944018
32	72113 Whirlpool Touch-Up Paint
32	Enamal, Toast (1 Qt. Uncut)
32	Platinum (Uncut)
32	WPL 799351
32	Almond (Uncut)
32	WP72107 Whirlpool Touchup
32	799344 Whirlpool Refrigerator Paint
32	72017 Whirlpool Appliance Touch-Up Paint White
32	Enamel, Coffee (1 Qt. Uncut)
32	WPL 944017
32	WPL 946875
32	WPL 877411
32	WPL 72112
32	212643 Whirlpool Refrigerator Permagum Sealer
32	CEMENT, ALUMILASTIC (1 1/4 OZ.)
32	WPL 984233
32	Enamel, Black (1 Qt. Uncut)
32	WPL 799832
32	WPL 876029
32	72032 Whirlpool Touch Up Paint Black
32	Enamel, New Avocado (1 Qt. Uncut)
32	72109 Whirlpool Dacor Avocado Touch-Up Paint
32	TAPE, VINYL (3/4 X 108“)
32	WPL 799833
32	511873 Whirlpool Refrigerator Paint
32	606755 Whirlpool Refrigerator Bag
32	Golden Harvest (Uncut)
32	833938 Whirlpool Refrigerator Terminal
32	876370 Whirlpool Refrigerator Insulation
32	WP503695 Whirlpool Refrigerator Sealer
32	WP505587 Whirlpool Refrigerator Sealer
32	WP542638 Whirlpool Refrigerator Grease
32	Paint, Touch-Up 1/2 Oz. (Coffee)
