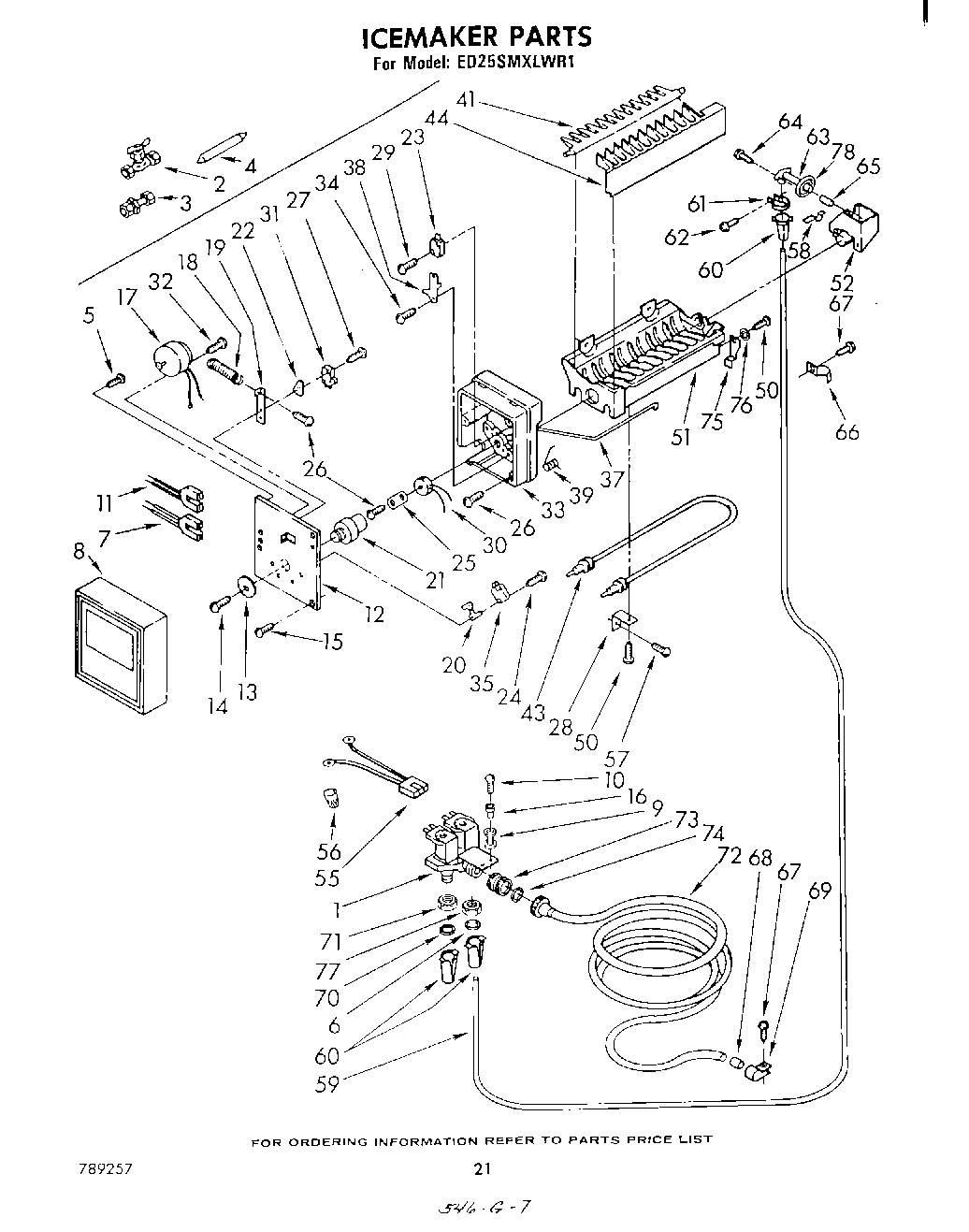

ED25SMXLWR1 12 – ICE MAKER

Written by

Products

Position	Product
1	4318046 Whirlpool Dual Water Inlet Valve
2	Valve, Shut-Off
3	Union, 1/4“ x 3/16“
4	Filter Kit
5	Screw (Use W/Motor 627106)
6	“O“ Ring Seal
7	WPL 548734
8	Cover
9	Grommet (2)
10	W11693756 Whirlpool Screw Assembly
11	Wiring, Dispensing Valve
12	Plate, Mounting
13	Gear
14	Screw
15	WP488787 Whirlpool Refrigerator Screw
16	Spacer (2)
17	Motor (Alternate)
17	Motor
18	Spring
19	Plate, Valve
20	Spacer, Switch (2)
21	Cam
22	Insulator
23	Switch, S.P.D.T. (2)
24	Screw, 4-40 x 1
25	Clamp, Thermostat
26	Screw, 8-32 x 1
27	Screw
28	WP2256087 Whirlpool Refrigerator Bracket
29	Screw, 4-24 x 3/4
30	Thermostat
30	Thermostat (Alternate)
31	Switch, S.P.S.T.
32	Screw, Ground
33	Support
34	Screw, Shoulder
35	Switch, S.P.D.T.
37	Arm, Shut-Off
38	Lever, Arm
39	Spring, Shut-Off Arm
41	WP627843 Whirlpool Refrigerator Ejector Arm
43	Heater, Mold
44	Stripper, Ice
50	Screw, 8-16 x 3/8
51	Mold & Heater Assembly (Includes Illus. 43)
52	Bearing & Inlet
55	Wire Harness
56	Wire Connector
57	SCREW
58	Clip
59	W10823511 Whirlpool Refrigerator Water Tube
60	4387491 Whirlpool Refrigerator Insert
61	WP488878 Whirlpool Refrigerator Tube Clamp
62	WP965173 Whirlpool Dishwasher Screw
63	WP2196157 Whirlpool Fill Tube
64	WP98165 Whirlpool Screw
65	Tube, Water Inlet
66	Clamp, Water Line (2)
67	W11624204 Whirlpool Screw
68	WP2158826 Whirlpool Refrigerator Dampener
69	Clamp Tube
70	“O“ Ring Seal (4)
71	WP627018 Whirlpool Refrigerator Nut
72	Tube, Inlet
73	Nut, Valve
74	WP16123 Whirlpool Washer
75	Bracket, Shut-Off Arm
76	F
77	Nut, Compression
78	WP1106508 Whirlpool Refrigerator Gasket
