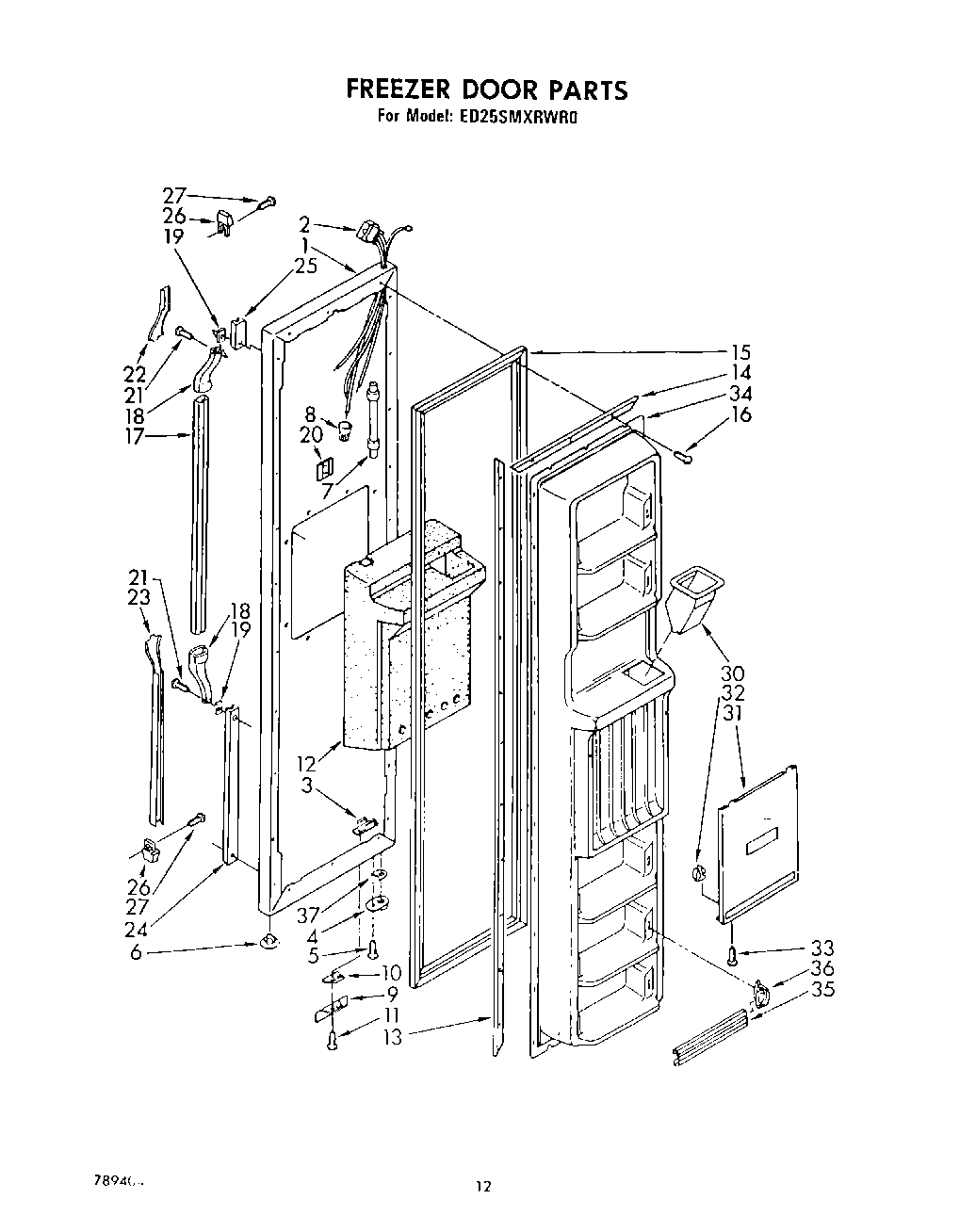

ED25SMXRWR0 07 – FREEZER DOOR

Products

Position	Product
1	Exterior Door Panel Freezer (Toast)
1	Exterior Door Panel Freezer (Almond)
1	Exterior Door Panel Freezer (Golden Harvest)
1	Exterior Door Panel Freezer (White)
1	Exterior Door Panel Freezer (Platinum)
2	Plug, Crossover
3	Tap Plate
4	4318165 Whirlpool Refrigerator Door Closure Cam Kit
5	WP489069 Whirlpool Compactor Screw
6	Hole Plug (2)
7	Tube, Door Wiring
8	Wire Connector
9	Bracket, Door Stop
10	Shim
11	Screw, 89 x 5/8
12	Insulation, Dispenser
13	Retainer, Gasket Side
14	Retainer, Gasket Top & Bottom
15	Door Gasket, Magnetic (For Platinum Model Only)
16	SCREW
17	Handle, Center
17	Handle, Center (For Platinum Model Only)
18	Center End Cap, Handle
19	Shim
20	Screw Anchor (2)
22	Insert, Handle (Top) (Platinum)
22	Insert, Handle (Top) (Toast)
22	Insert, Handle (Top) (White)
22	Insert Handle (Top) (Golden Wheat)
22	Insert, Handle (Top) (Almond)
23	Insert, Handle (Bottom) (Platinum)
23	Insert, Handle (Bottom) (Almond)
23	Insert, Handle (Bottom) (Golden Wheat)
23	Insert, Handle (Bottom) (White)
23	Insert, Handle (Bottom) (Toast)
24	Retainer Insert (Bottom)
25	Retainer Insert (Top)
26	End Cap
27	Screw
30	Chute, Ice
31	Overlay, Ice Dispenser
32	Expansion Clip
33	WP488729 Whirlpool Refrigerator Door Screw
34	Interior Door Panel (For Platinum Model Only)
35	WPL 1108928
36	WP839904 Whirlpool Refrigerator Endcap Trim
37	WP1104787 Whirlpool Refrigerator Shim
