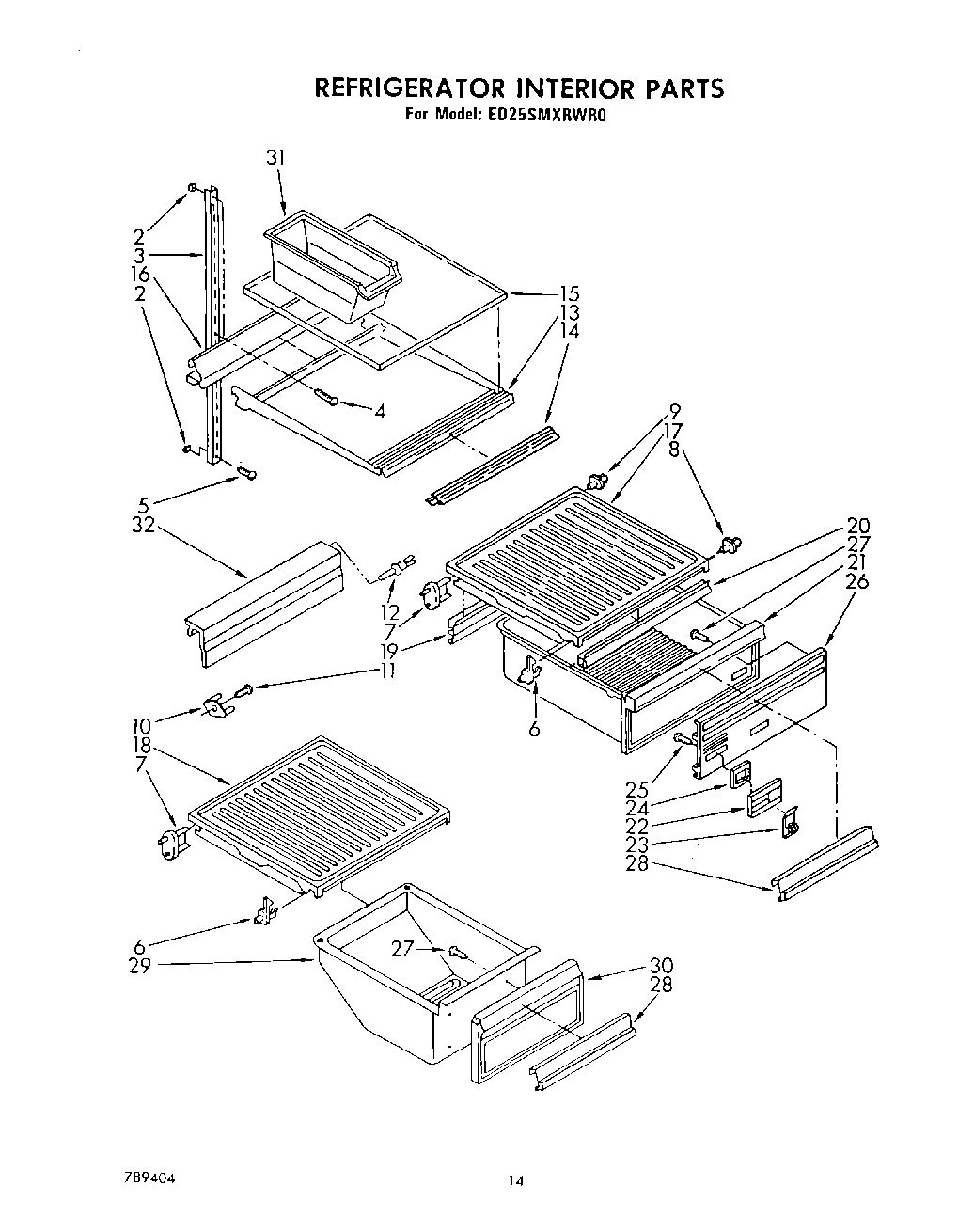

ED25SMXRWR0 08 – REFRIGERATOR INTERIOR, LIT/OPTIONAL

ED25SMXRWR0 08 – REFRIGERATOR INTERIOR, LIT/OPTIONAL

Written by

in

ED25SMXRWR0 08 – REFRIGERATOR INTERIOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT1109122
	WPL 677813
	WPL 677818
	WPL 677821
	WPL 677967
	WPL 677971
	WPL LIT1108931
	WPL LIT1105270
	WPL LIT789404
2	520965 Whirlpool Refrigerator Support
3	Shelfladder (2)
4	Screw, 8 x 1-1/4 (3)
5	Screw (Repair)
5	Screw, 8-32 x 1-1/4
6	Shelf, Stud
7	Stud, Shelf
8	Shelf, Stud
9	Stud
10	Stud Water Reservoir
11	WP488729 Whirlpool Refrigerator Door Screw
12	Stud
13	Shelf, Cantilever
14	Shelf Trim, Cantilever
15	Glass, Cantilever Shelf
16	Reflector, Cantilever
17	Pan Slide & Cover (Crisper)
18	Pan Slide & Cover (For Platinum Model Only)
19	Crisper Gasket Rear
20	Crisper Gasket Front
21	Pan Crisper
22	Housing, Humidity Control
23	Slide, Humidity Control
24	Seal, Humidity Control
25	Screw, 6-19 x 7/16
26	Front Cover, Crisper
27	Screw (Repair)
28	Overlay, Front Cover
29	Pan (Meat)
30	Front Cover, Meat
31	WP982704 Whirlpool Refrigerator Container
32	Golden Harvest
32	Almond (Uncut)
32	Leveler (Thinner)
32	WPL 799832
32	350930 Whirlpool White Spray Paint
32	350956 Whirlpool Spray Assembly
32	72017 Whirlpool Appliance Touch-Up Paint White
32	285363 Whirlpool Fill Hose
32	CEMENT, ALUMILASTIC (1 1/4 OZ.)
32	799344 Whirlpool Refrigerator Paint
32	WP72107 Whirlpool Touchup
32	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
32	72113 Whirlpool Touch-Up Paint
32	Golden Harvest (Uncut)
32	WP503695 Whirlpool Refrigerator Sealer
32	WP505587 Whirlpool Refrigerator Sealer
32	WP542638 Whirlpool Refrigerator Grease
32	TAPE, VINYL (3/4 X 108“)
32	72032 Whirlpool Touch Up Paint Black
32	285006 Whirlpool Spray
32	WPL 876029
32	WPL 799833
32	876370 Whirlpool Refrigerator Insulation
32	833938 Whirlpool Refrigerator Terminal
32	606755 Whirlpool Refrigerator Bag
32	Paint, Spray (13 Oz.) (Platinum)
32	Enamal, Toast (1 Qt. Uncut)
32	Platinum (Uncut)
32	WPL 72112
32	212643 Whirlpool Refrigerator Permagum Sealer
32	WPL 984233
32	350942 Whirlpool Spray Paint
32	511873 Whirlpool Refrigerator Paint
32	Enamel, Black (1 Qt. Uncut)
