ED25TEXHN03 02 – REFRIGERATOR LINER
Written by
in

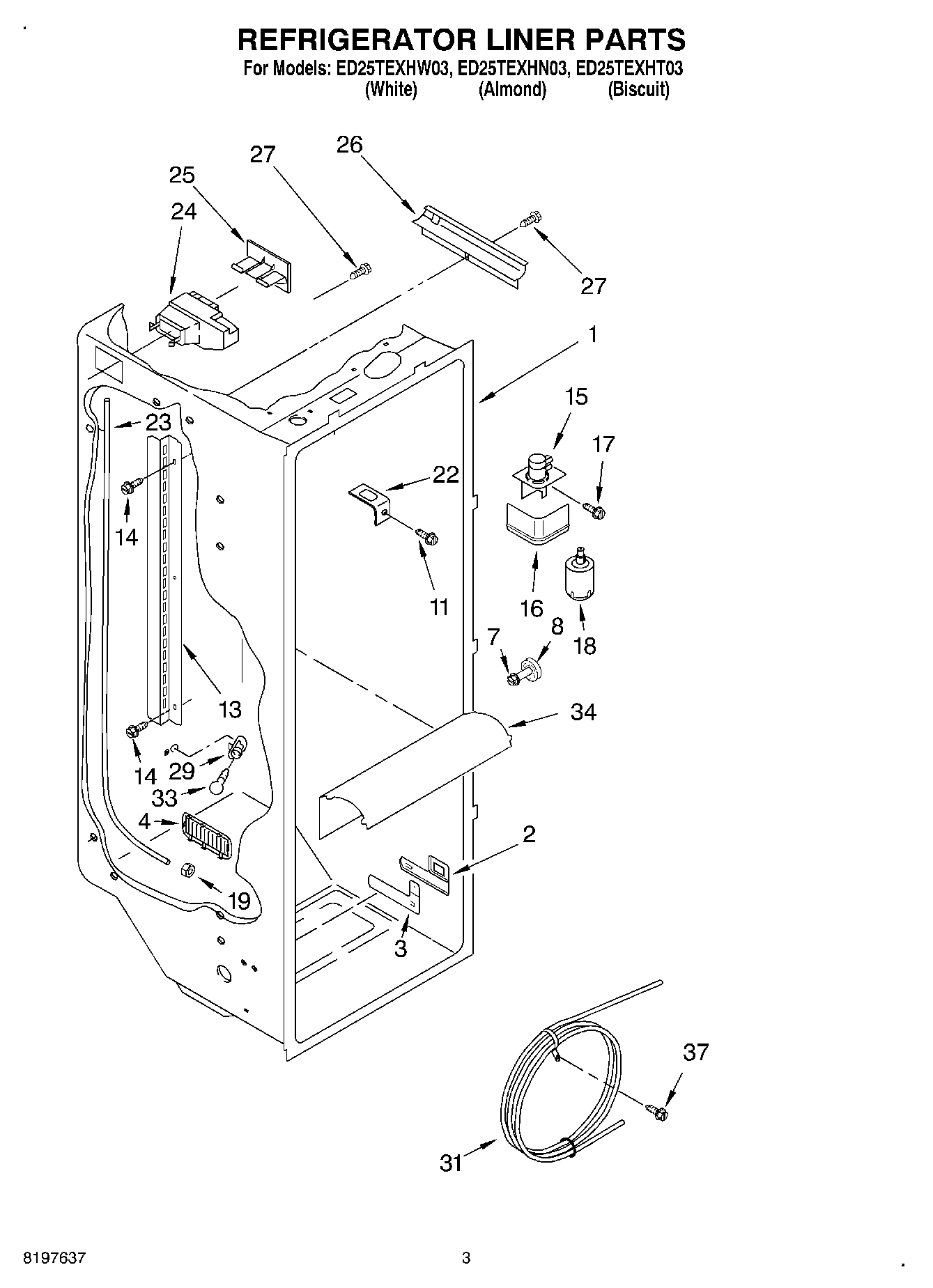

ED25TEXHN03 02 – REFRIGERATOR LINER
Products
Position
Product
1
Liner (Not A Serviceable Part)
2
2194744 Whirlpool Refrigerator Escutcheon
3
2182757 Whirlpool Refrigerator Slide
4
Louver
7
WP3400806 Whirlpool Screw
8
WP2196483 Whirlpool Refrigerator Shelf Stud
11
WP488488 Whirlpool Refrigerator Screw
13
Ladder, Shelf
14
WP488729 Whirlpool Refrigerator Door Screw
15
Bracket, Water Filter
16
Cover, Water Filter
17
WP488163 Whirlpool Refrigerator Screw
18
Water Filter
19
Nut, Compression
19
WP627018 Whirlpool Refrigerator Nut
22
WP2256085 Whirlpool Refrigerator Retainer
23
Water Tube (Outlet)
23
Water Tube (Inlet)
24
WPW10151374 Whirlpool Refrigerator Diffuser
25
Air Diffuser Cover
26
2150331 Whirlpool Refrigerator Wire Cover
27
W10759522 Whirlpool Screw
29
4387478 Whirlpool Refrigerator Light Socket
31
WP2256126 Whirlpool Refrigerator Reservoir
33
RANGE ONLY 40W 120V APPL BULB
34
Light Lens
37
Screw (2)
←
