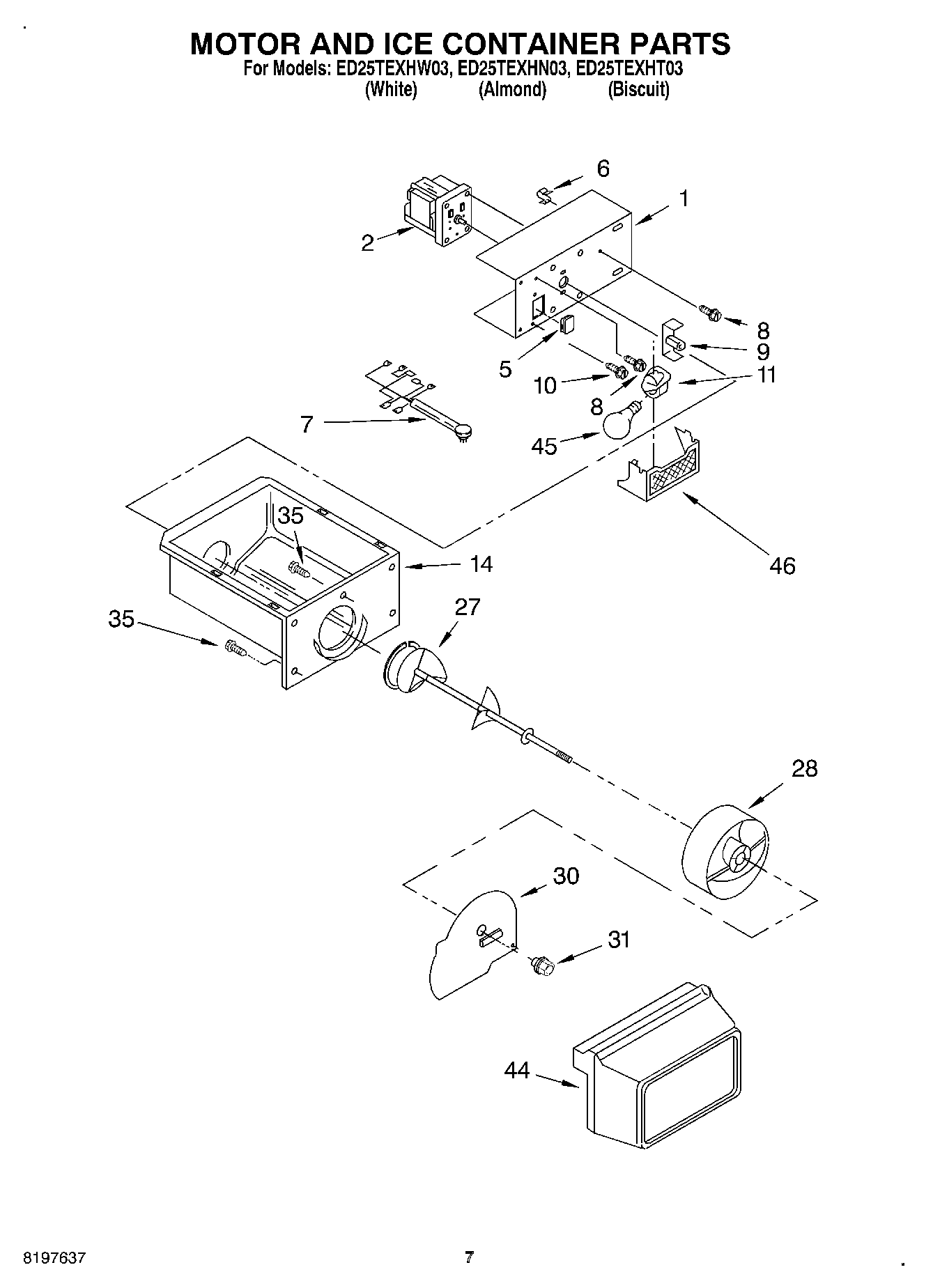

ED25TEXHT03 05 – MOTOR AND ICE CONTAINER

ED25TEXHT03 05 – MOTOR AND ICE CONTAINER

Written by

in

ED25TEXHT03 05 – MOTOR AND ICE CONTAINER

Products

PositionProduct
1Bracket, Motor
2Motor, Dispenser
5Plug, Bracket
6WP1115374 Whirlpool Refrigerator Clip
7Wiring Assembly, Ice Dispenser
8WP489399 Whirlpool Refrigerator Screw
9COUPLING AUGER MOTOR
10WP489478 Whirlpool Refrigerator Screw
114387478 Whirlpool Refrigerator Light Socket
14WPW10670845 Whirlpool Refrigerator Ice Container
27Auger
284388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
30Floating Baffle
31Nut, Bearing
35WP488787 Whirlpool Refrigerator Screw
44Front Cover
45RANGE ONLY 40W 120V APPL BULB
46WP2171706 Whirlpool Refrigerator Light Lens
