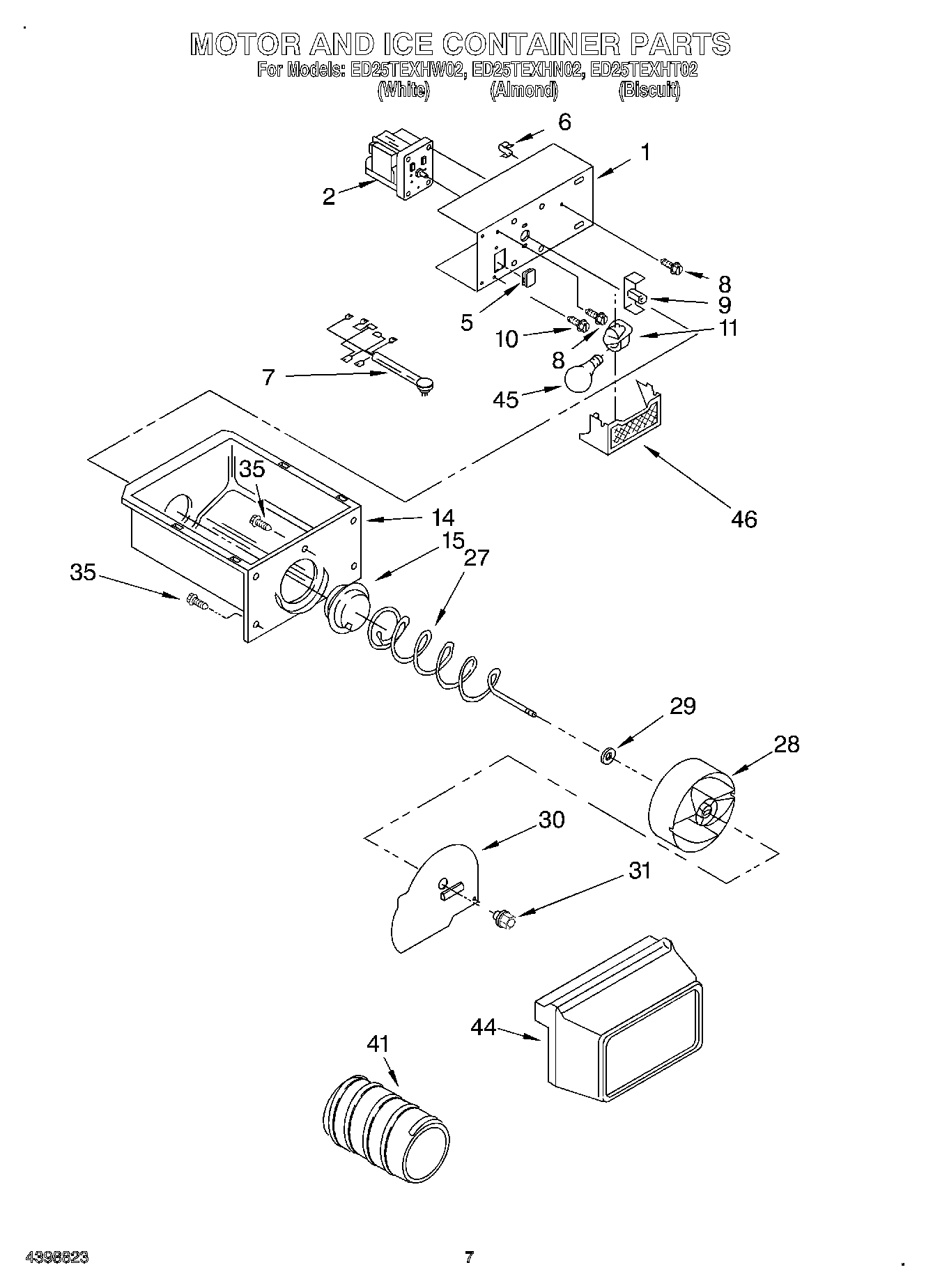

ED25TEXHW02 05 – MOTOR AND ICE CONTAINER

Products

Position	Product
1	Bracket, Motor
2	Motor, Dispenser
5	Plug, Bracket
6	WP1115374 Whirlpool Refrigerator Clip
7	Wiring Assembly, Ice Dispenser
8	WP489399 Whirlpool Refrigerator Screw
9	COUPLING AUGER MOTOR
10	WP489478 Whirlpool Refrigerator Screw
11	4387478 Whirlpool Refrigerator Light Socket
14	WPW10670845 Whirlpool Refrigerator Ice Container
15	W10749708 Whirlpool Refrigerator Coupling
27	Conveyor
28	4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
29	WP3400912 Whirlpool Refrigerator Washer
30	Floating Baffle
31	Nut, Bearing
35	WP488787 Whirlpool Refrigerator Screw
41	4317870 Whirlpool Refrigerator Auger Sleeve
44	Front Cover
45	RANGE ONLY 40W 120V APPL BULB
46	WP2171706 Whirlpool Refrigerator Light Lens
