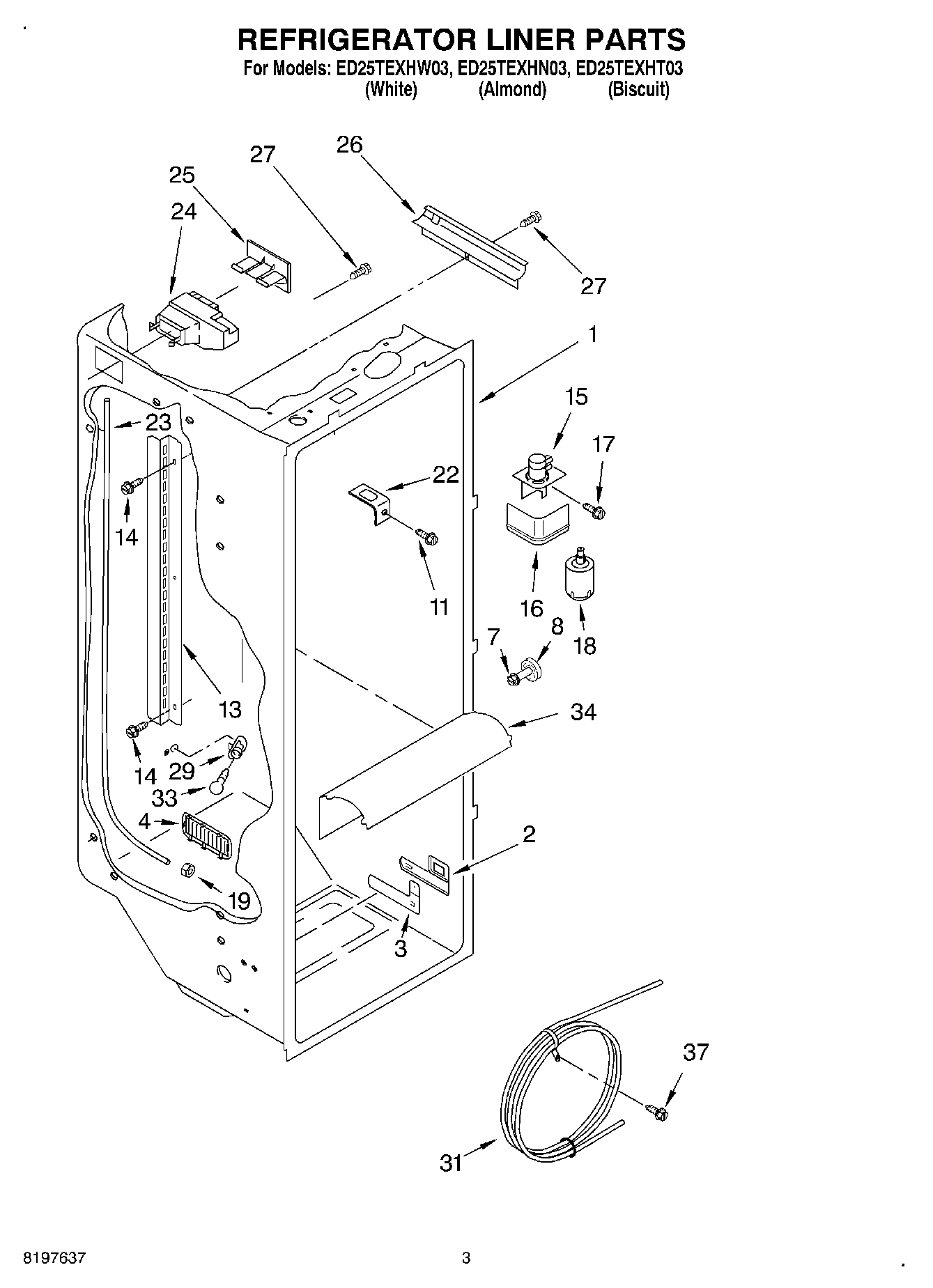

ED25TEXHW03 02 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
7	WP3400806 Whirlpool Screw
8	WP2196483 Whirlpool Refrigerator Shelf Stud
11	WP488488 Whirlpool Refrigerator Screw
13	Ladder, Shelf
14	WP488729 Whirlpool Refrigerator Door Screw
15	Bracket, Water Filter
16	Cover, Water Filter
17	WP488163 Whirlpool Refrigerator Screw
18	Water Filter
19	Nut, Compression
19	WP627018 Whirlpool Refrigerator Nut
22	WP2256085 Whirlpool Refrigerator Retainer
23	Water Tube (Outlet)
23	Water Tube (Inlet)
24	WPW10151374 Whirlpool Refrigerator Diffuser
25	Air Diffuser Cover
26	2150331 Whirlpool Refrigerator Wire Cover
27	W10759522 Whirlpool Screw
29	4387478 Whirlpool Refrigerator Light Socket
31	WP2256126 Whirlpool Refrigerator Reservoir
33	RANGE ONLY 40W 120V APPL BULB
34	Light Lens
37	Screw (2)
