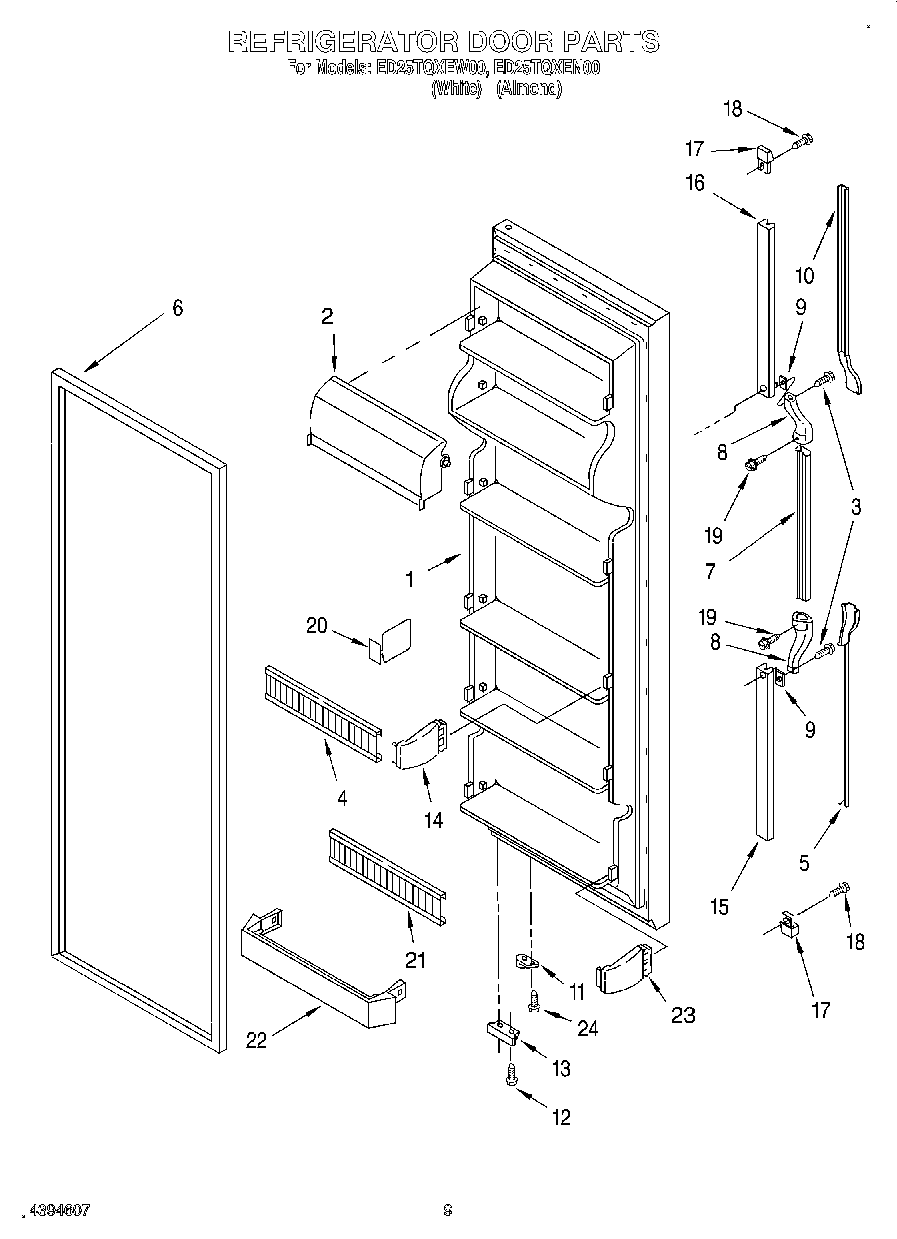

ED25TQXEN00 06 – REFRIGERATOR DOORadmin2025-04-26T09:41:24+00:00ED25TQXEN00 06 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes Item 6) (Almond) |
| 1 | Refrigerator Door (Includes Item 6) (White) |
| 2 | WP2256101 Whirlpool Dairy Door |
| 3 | WP489463 Whirlpool Refrigerator Screw |
| 4 | Trim, Door (3) |
| 5 | Insert, Bottom (White) |
| 5 | Insert, Bottom (Almond) |
| 6 | 2159075 Whirlpool Door Gasket Seal |
| 7 | Handle, Center (White) |
| 7 | Handle, Center (Almond) |
| 8 | End Cap, Center Handle |
| 9 | Shim |
| 10 | Insert, Top (Almond) |
| 10 | Insert, Top (White) |
| 11 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 12 | WP489483 Whirlpool Screw |
| 13 | Bracket, Door Stop |
| 14 | ENDCAP |
| 15 | Retainer, Bottom |
| 16 | Retainer, Top |
| 17 | End Cap (2) |
| 18 | Screw |
| 19 | Screw |
| 20 | Divider-Door |
| 21 | Trim, Door (1) |
| 22 | WP2177962K Whirlpool Refrigerator Door Trim |
| 23 | WP2195915 Whirlpool Door Shelf Support |
| 24 | WP3400012 Whirlpool Refrigerator Screw |
