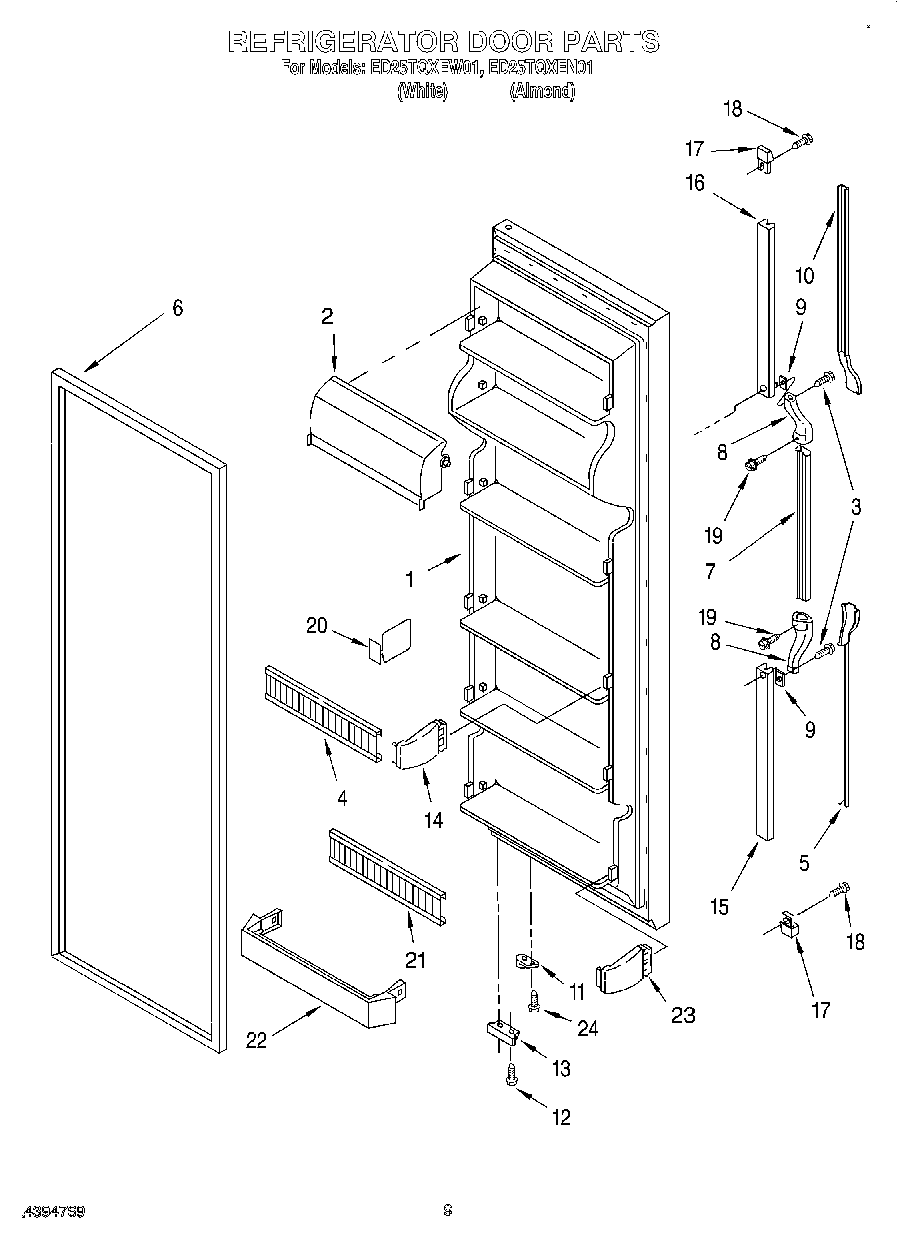

ED25TQXEN01 06 – REFRIGERATOR DOOR

ED25TQXEN01 06 – REFRIGERATOR DOOR

Written by

in

ED25TQXEN01 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (White)
1Refrigerator Door (Includes Item 6) (Almond)
2WP2256101 Whirlpool Dairy Door
3WP489463 Whirlpool Refrigerator Screw
4Trim, Door (3)
5Insert, Bottom (Almond)
5Insert, Bottom (White)
62159075 Whirlpool Door Gasket Seal
7Handle, Center (White)
7Handle, Center (Almond)
8End Cap, Center Handle
9Shim
10Insert, Top (Almond)
10Insert, Top (White)
114318165 Whirlpool Refrigerator Door Closure Cam Kit
12WP489483 Whirlpool Screw
13Bracket, Door Stop (Chrome)
14ENDCAP
15Retainer, Bottom
16Retainer, Top
17End Cap (2)
18Screw
19Screw
20Divider-Door
21Trim, Door (1)
22WP2177962K Whirlpool Refrigerator Door Trim
23WP2195915 Whirlpool Door Shelf Support
24WP3400012 Whirlpool Refrigerator Screw
